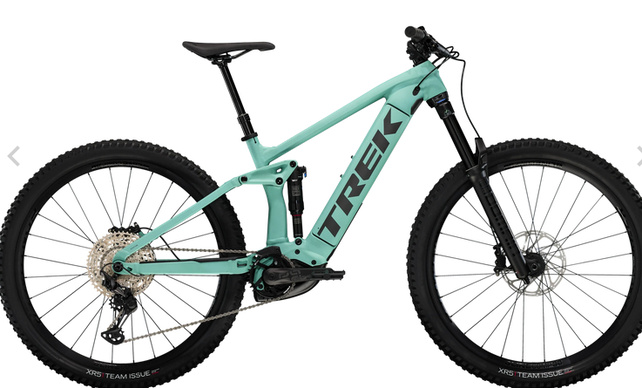

Trek Rail 7 Gen 3 Matte Blue Sage - 2024
Trek Rail 7 Gen 3 Matte Blue Sage - 2024
C$8,849.99 CAD C$7,999.99 CAD
-10%

Trek Rail 7 Gen 3 Matte Blue Sage - 2024

C$7,999.99
C$8,849.99 Excl. tax

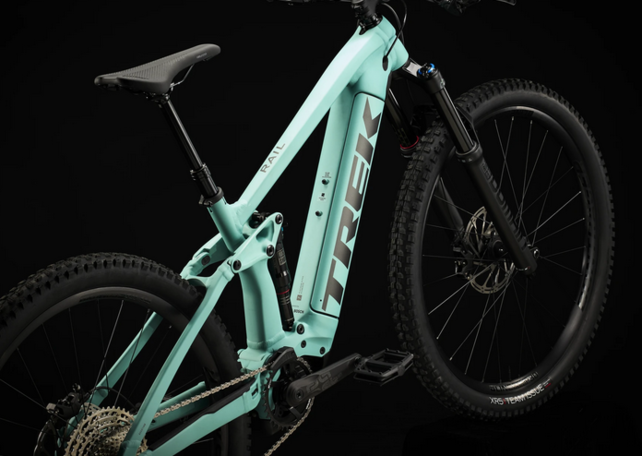

Rail 7 is a long-travel electric mountain bike built for ripping the big stuff. It features the same high-end trail tech as our analog trail bikes, an upgraded fork, drivetrain, battery, and more, plus a powerful Bosch drive system that's basically like h

Out of stock
Product description





Rail 7 is a long-travel electric mountain bike built for ripping the big stuff. It features the same high-end trail tech as our analog trail bikes, an upgraded fork, drivetrain, battery, and more, plus a powerful Bosch drive system that's basically like having your own shuttle.







It's right for you if...





You’re looking for a trail-specific e-MTB that’s designed to tackle the same tough terrain as regular trail bikes. You already know just how awesome e-MTBs are on the mountain, and want to invest in better components.





The tech you get



A burly alloy frame with 150mm of rear travel and a 625Wh Removable Integrated Battery, a 160mm RockShox Domain fork, the latest from Bosch with smart system Performance Line CX capable of speeds up to 20MPH, including a Bluetooth® LED remote for easy connectivity and activity tracking through the eBike Flow app. A smooth-shifting 1x12 Shimano SLX/XT drivetrain, dropper post, powerful Shimano 4-piston brakes for confident descents, and Bontrager Line Comp 30 29er wheels that are already completely tubeless ready, including sealant.



The final word





Rail 7 features loads of upgraded parts, including the drivetrain, fork, and wheels. Its long-range battery gives you all the power you want for packing in laps and miles of smiles.





Why you'll love it





  1. Rail Gen 3 is built for big adventures, with Bosch's smart system that packs in all the power you need, and a Bluetooth-connected LED remote that's sleek and intuitive

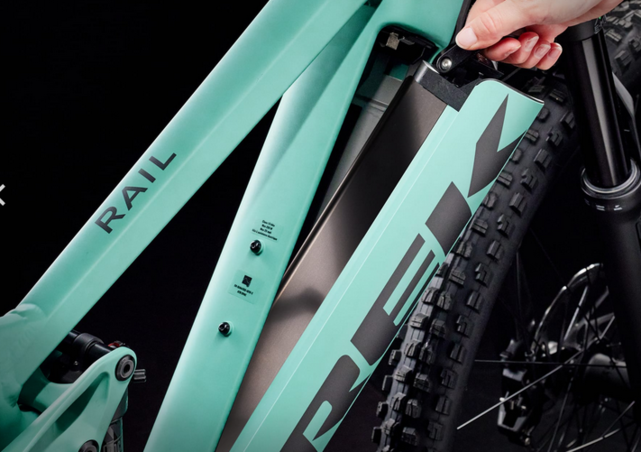

  2. Trek's Removable Integrated Battery (RIB) system looks great and is super user-friendly: it fully hides the battery in the frame for protection, makes it easy to remove the battery without tools and lets you mount a water bottle cage
  3. Rail keeps your cockpit tidy by skipping a display, but smart system makes it easy to add one
  4. The controller has Walk Assist and an intelligent e-MTB mode that automatically delivers the right amount of power based on your terrain

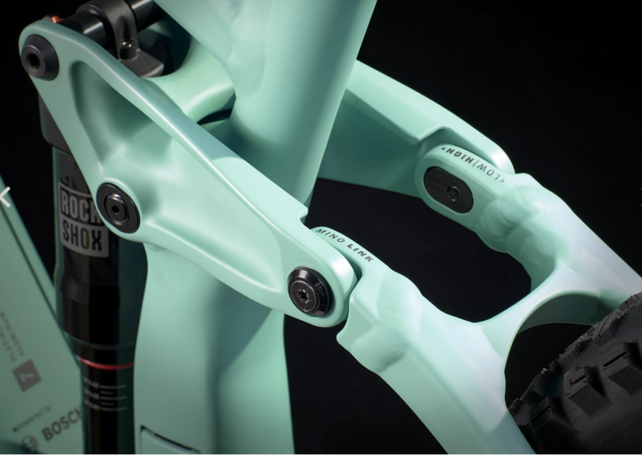

  5. Made with the same hard-charging frame tech as our amazing trail bikes, like Mino Link adjustable geometry, a Straight Shot down tube for extra stiffness, and Active Braking Pivot (ABP)



*Please note - spec applies to all sizes unless listed separately


Frame Alpha Platinum Aluminum, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru axle, 150mm travel
Fork RockShox Domain RC, DebonAir, Motion Control damper, lockout, tapered steerer, 44mm offset, oversized crown for eMTB, Boost110, 15mm Maxle Stealth, 160mm travel

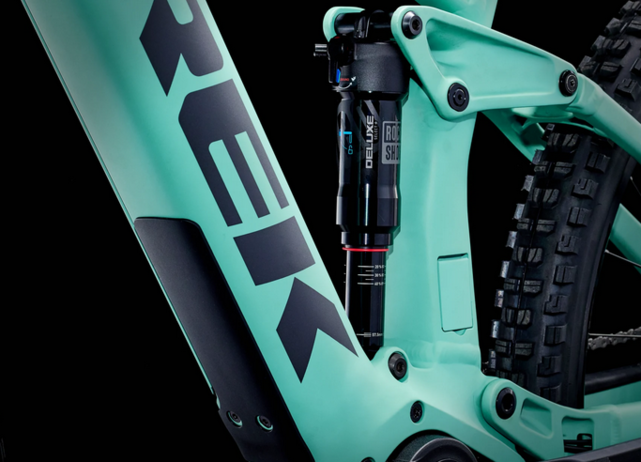

Shock RockShox Deluxe Select+ RT, 230mm x 57.5mm
Max compatible fork travel 170mm (580mm axle-to-crown)



Wheel front Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
Wheel rear Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle
Skewer rear Bontrager Switch thru axle, removable lever
Tire Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50''
Rim strip Bontrager TLR
Max tire size Frame: 29x2.60", Fork: See manufacturer



Shifter Shimano SLX M7100, 12 speed

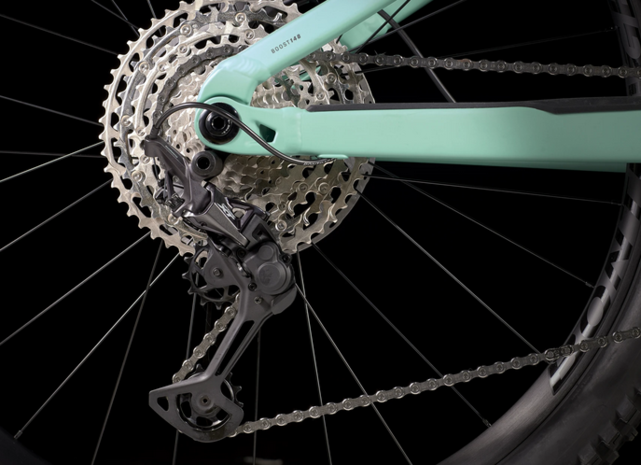

Rear derailleur Shimano XT M8100, long cage
Crank E*thirteen E*spec Plus, 165mm length
Crank arm E*thirteen E*spec Plus, 34T, 160mm length
Chain ring E*thirteen E*spec, 34T alloy, 55mm chainline
Cassette Shimano Deore M6100, 10-51, 12 speed
Chain Shimano Deore M6100, 12 speed
Pedal VP-536 nylon platform
Max chainring size 1x: 34T



Saddle Bontrager Arvada, steel rails, 138 mm width
*Seatpost Size: S
TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length
Size: M, L, XL
TranzX JD-YSP18, 150mm travel, internal routing, 31.6mm, 470mm length
Handlebar Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 780mm width
Grips Bontrager XR Trail Comp, nylon lock-on

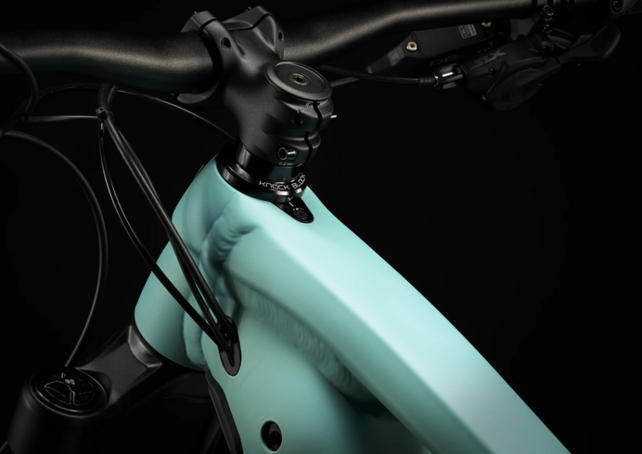

Stem Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length
Brake Shimano M6120 4-piston hydraulic disc
Brake rotor Shimano RT76, 6-bolt, 203mm
Rotor size Max brake rotor sizes - Frame: 200mm, Fork: see fork manufacturer

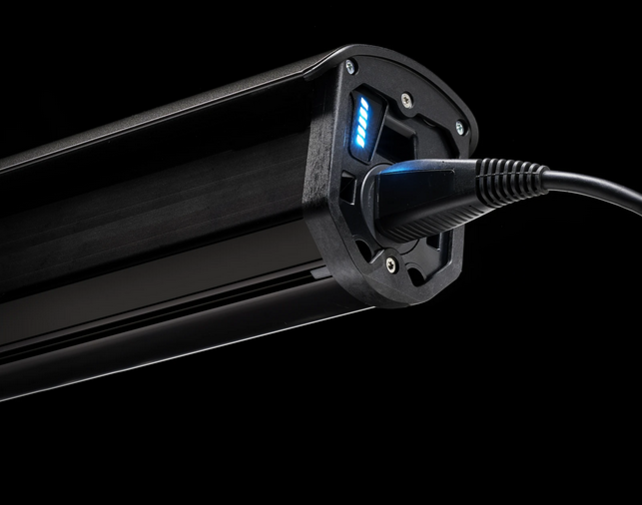

Battery Bosch PowerTube 625Wh, smart system
Charger Bosch standard 4A, 110V, smart system

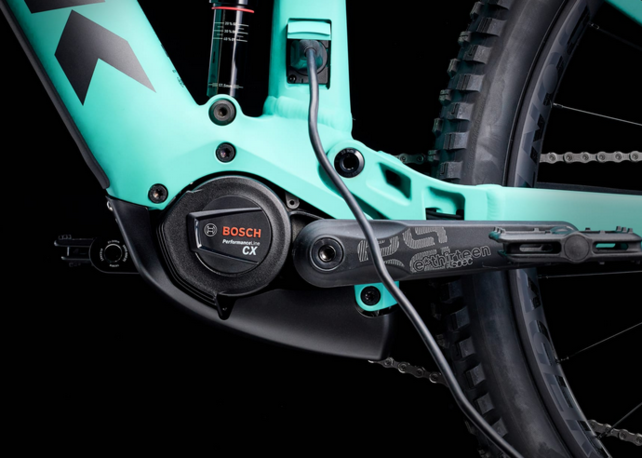

Motor Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm

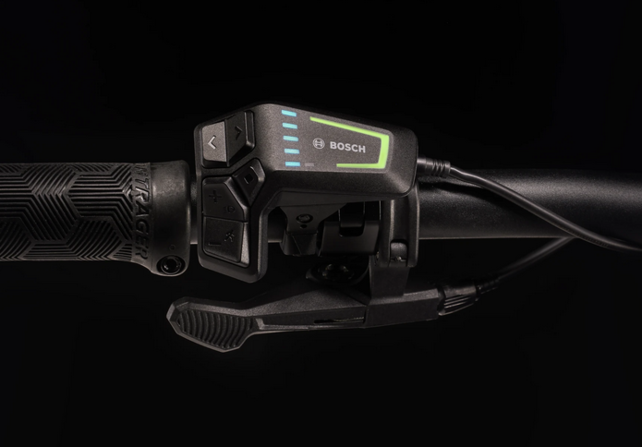

Computer Bosch LED remote, smart system



Weight M - 24.73 kg / 54.53 lbs
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).





We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.







Product information
EAN 768682595763
