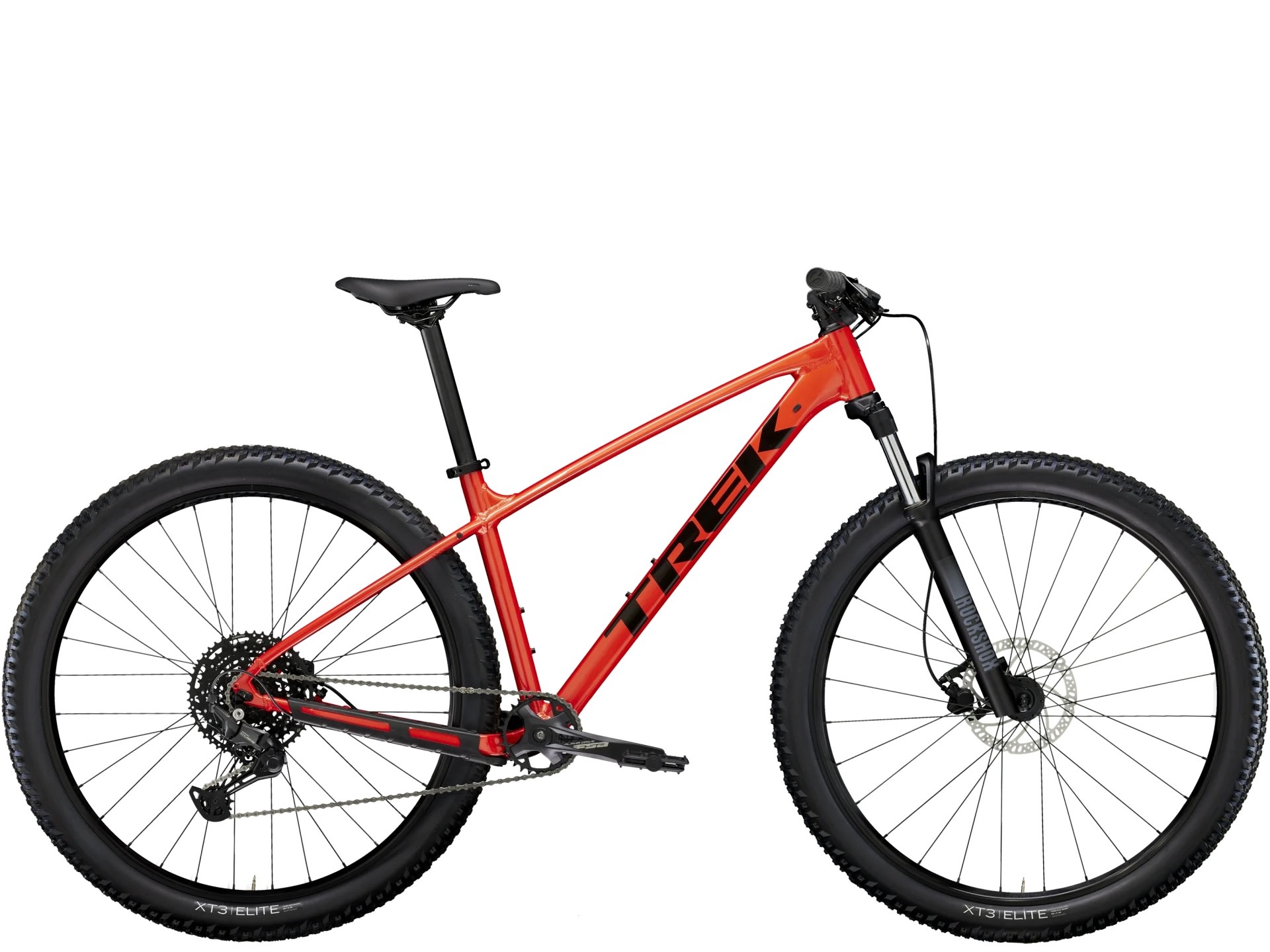

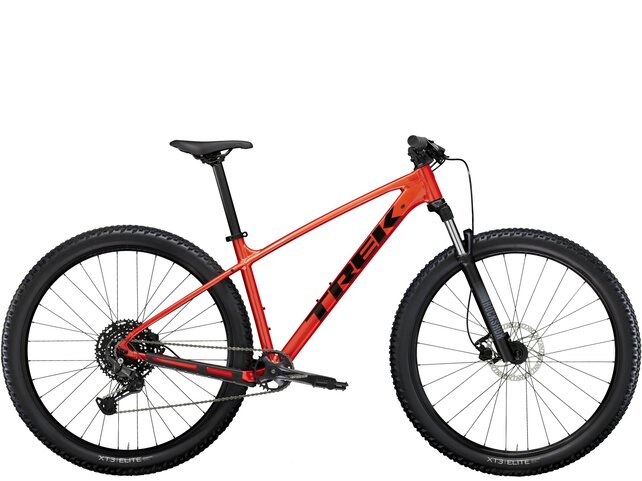

Trek Marlin 6 Gen 3 - Lava Red
- More information? Contact us about this product
- Add to comparison list
It's right for you if...
You want a trail bike that's dialed for building confidence on the dirt, and versatile enough for commuting to work or school.
Â
The tech you get

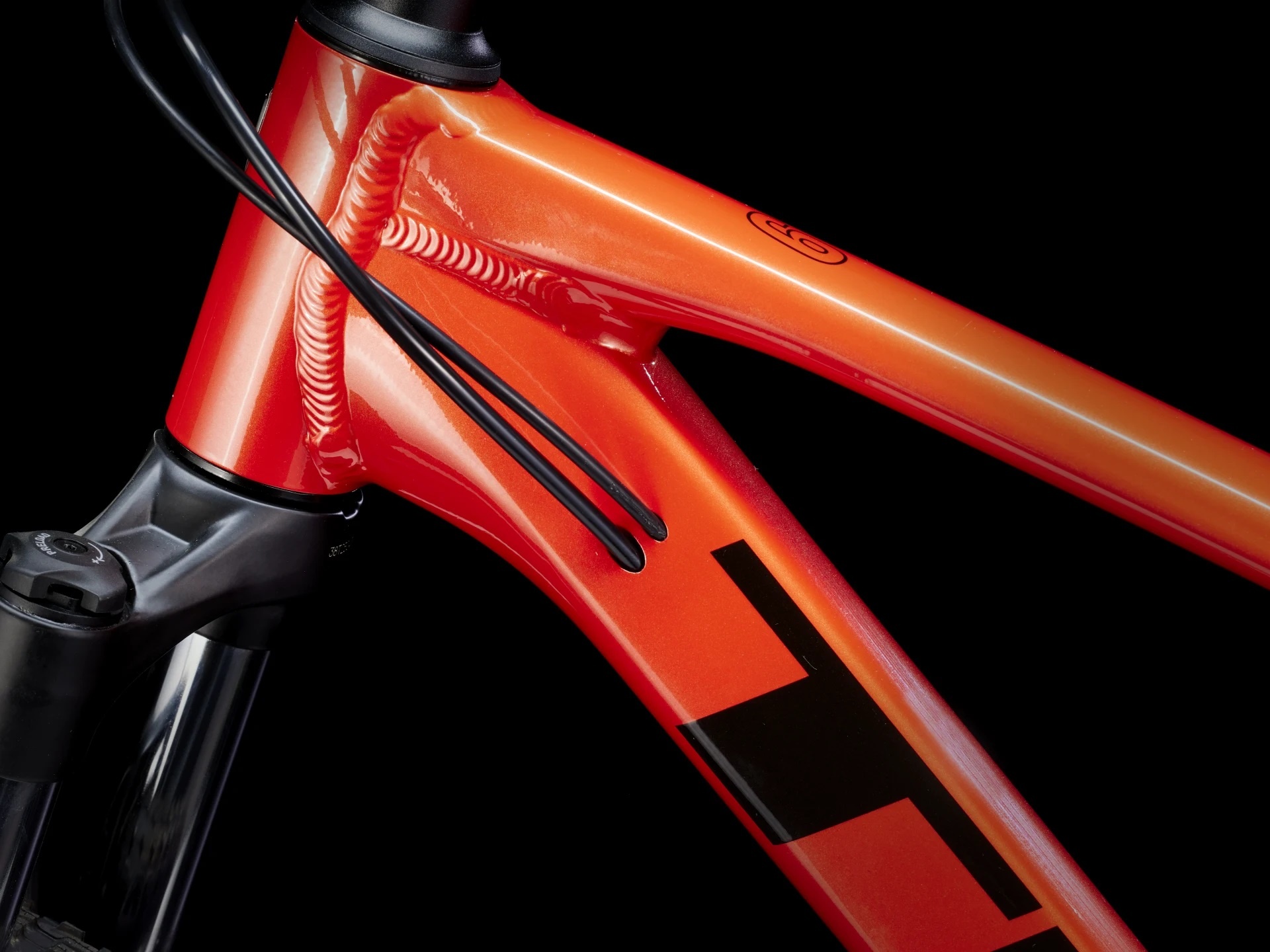

A lightweight aluminum frame with modern trail riding geometry and internal routing that keeps cables protected and keep the bike looking sleek. A 100mm RockShox Judy front suspension fork that cushions rocks, roots, and bumps in the trail, 10-speed fuss-free Shimano CUES shifting, and the serious stopping power of hydraulic disc brakes.
Â
The final word
Marlin 6 is an ideal trail bike for riders who want to progress on the dirt, and want a bike that can keep them rolling off of the trail, too.
Â
 Why you'll love it
Â
- Marlin Gen 3 gives you serious trail capability, with big tire clearance and slack, confidence-boosting geometry that keeps you stable from singletrack to city

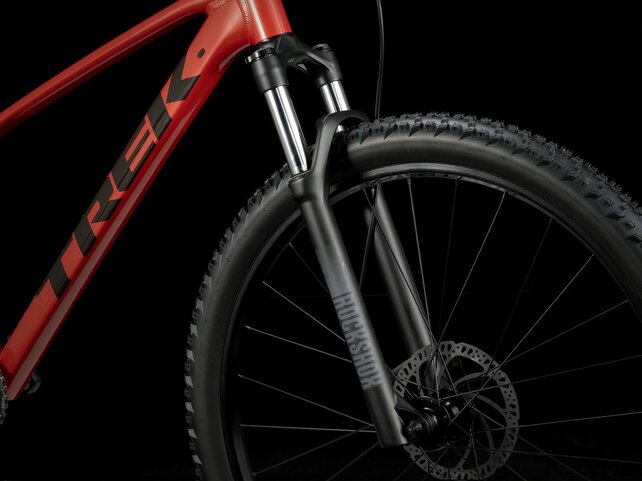

- Its RockShox fork gives you 100mm of suspension for turning rocks and roots in the trail into smooth-sailing
- Rack and fender mounts make it easy to accessorize, so your mountain bike can double as a rugged commuter
- Internal routing makes it easy to add a dropper post that lets you lower your saddle on the fly for more confident descending
- Marlin models in sizes XXS and XS have a curved top tube and lower standover height that makes it easier for smaller riders to mount and dismount
Â
*Please note - spec applies to all sizes unless listed separately
*Frame | Size: XXS , XS Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew |
---|---|
Size: S , M , ML , L , XL , XXL Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew |
|
*Fork | Size: XXS RockShox Judy, coil spring, preload, TurnKey lockout, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel |
Size: XS , S RockShox Judy, coil spring, preload, TurnKey lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel |
|
Size: M , ML , L , XL , XXL RockShox Judy, coil spring, preload, TurnKey lockout, 46mm offset for 29'' wheel, 100mm QR, 100mm travel |
|
Max compatible fork travel | 120mm, XXS: 80mm |
Hub front | Formula DC-20, alloy, 6-bolt, 100 mm ThruSkew |
---|---|
*Hub rear | Size: XXS , XS , S Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR |
Size: M , ML , L , XL , XXL Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
|
Skewer rear | 173x5mm QR |
Rim | Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve |

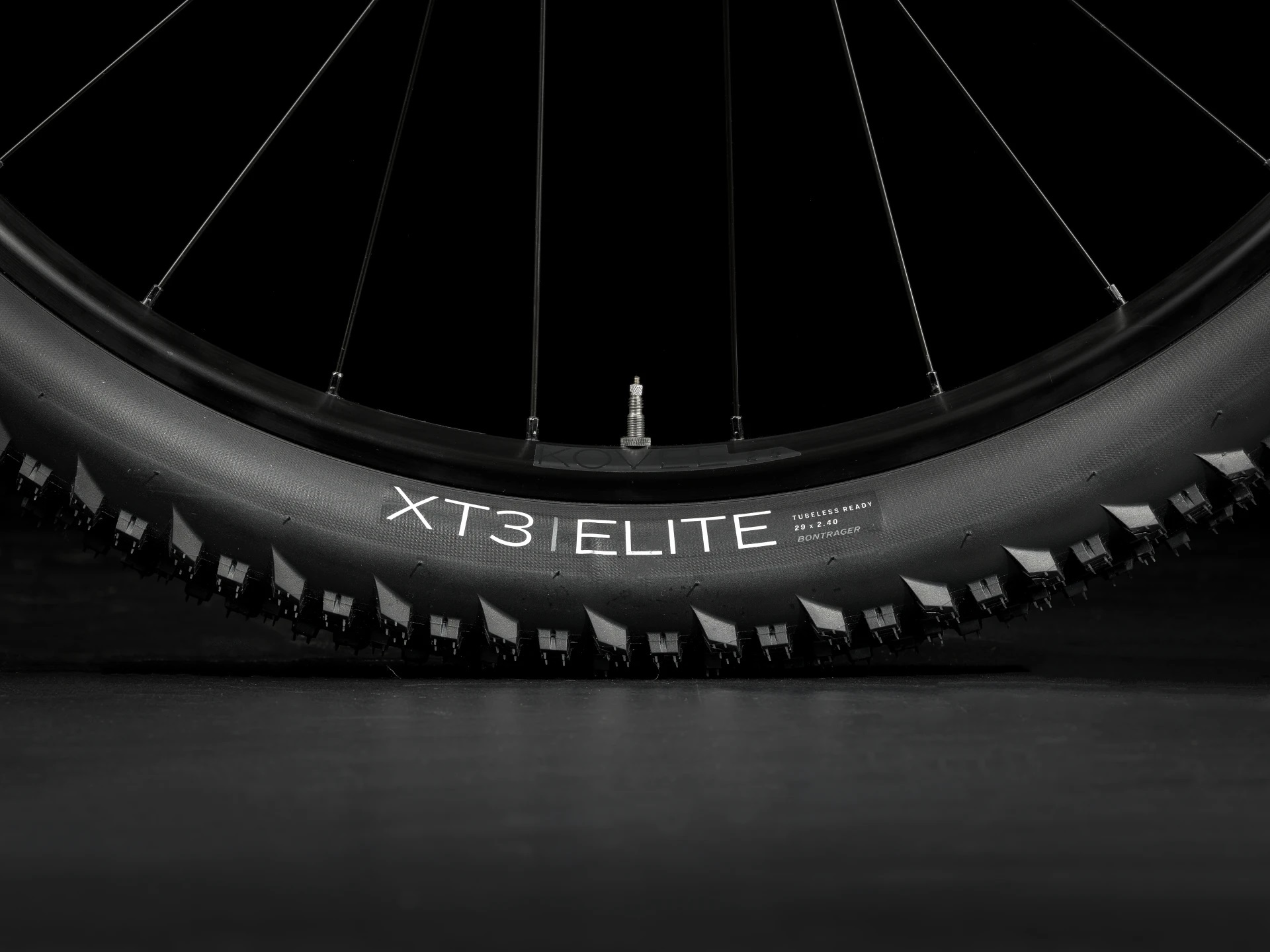

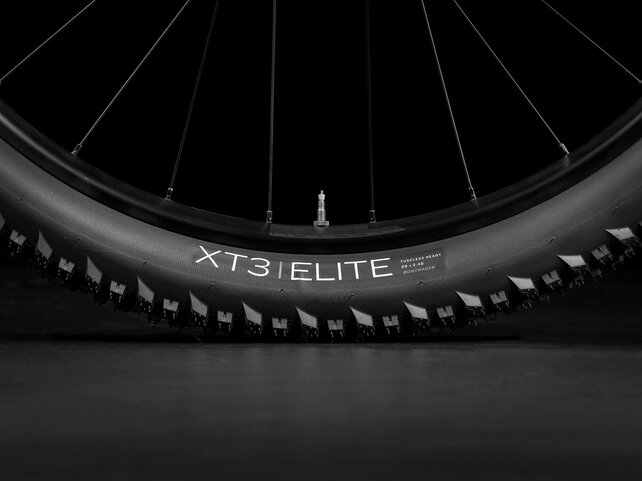

*Tire | Size: XXS Bontrager XT3 Elite, Tubeless Ready, Inner Strength casing, wire bead, 60 tpi, 26x2.35'' |
Size: XS , S Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60Â tpi, 27.5x2.35" |
|
Size: M , ML , L , XL , XXL Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60Â tpi, 29x2.35" |
|
Max tire size | Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer |
Shifter | Shimano U6000, 10 speed |
---|---|

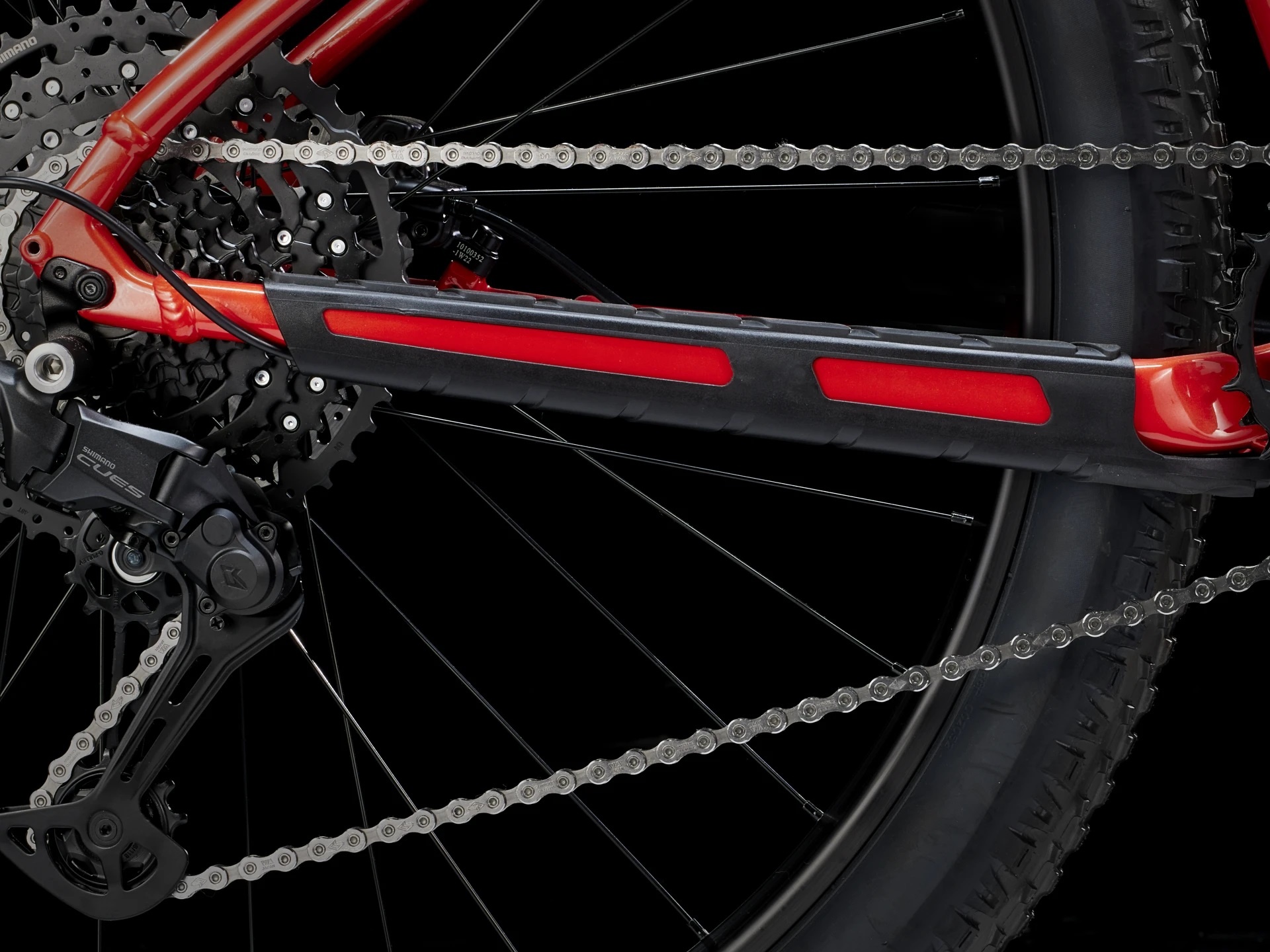

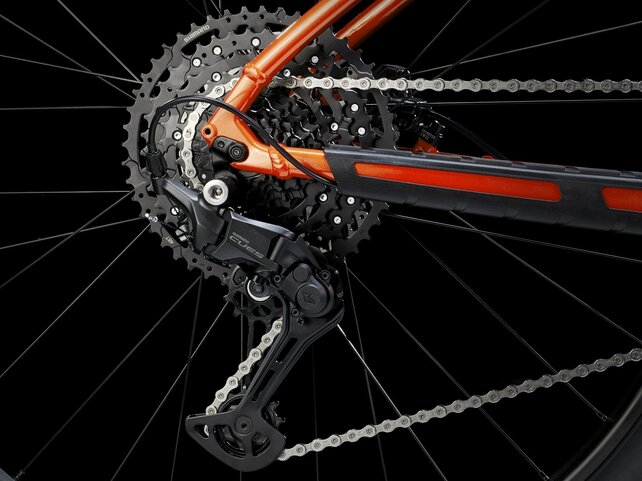

Rear derailleur | Shimano CUES U6000 GS |

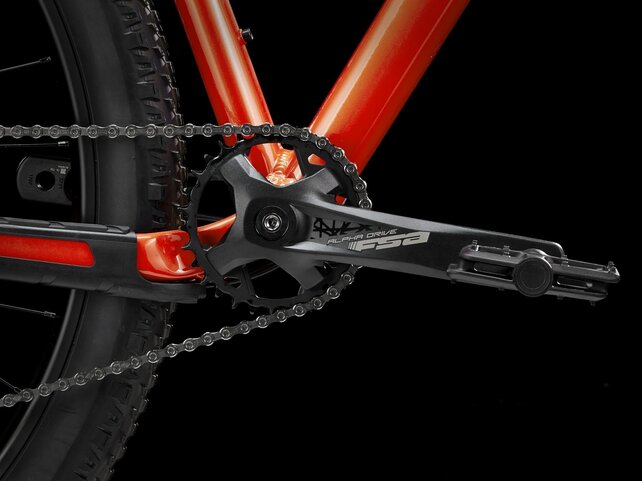

*Crank | Size: XXS , XS FSA Alpha Drive, 30T, 160mm length |
Size: S , M , ML FSA Alpha Drive, 30T, 170mm length |
|
Size: L , XL , XXL FSA Alpha Drive, 30T, 175mm length |
|
Bottom bracket | FSA, 73 mm, threaded cartridge, 122.5 mm spindle |
Cassette | Shimano CUES LG300, LINKGLIDE, 11-48, 10 speed |
Chain | Shimano LG500 |
Pedal | VP-536 nylon platform |
Max chainring size | 1x: 34T, 2x: 36/22 |
Saddle | Bontrager Verse Short, stainless steel rails |
---|---|
*Seatpost | Size: XXS Bontrager alloy, 31.6Â mm, 12Â mm offset, 300Â mm length |
Size: XS , S , M Bontrager alloy, 31.6mm, 12mm offset, 330mm length |
|
Size: ML , L , XL , XXL Bontrager alloy, 31.6mm, 12mm offset, 400mm length |
|
*Handlebar | Size: XXS , XS Bontrager alloy, 31.8mm, 5mm rise, 690mm width |
Size: S Bontrager alloy, 31.8mm, 15mm rise, 720mm width |
|
Size: M , ML , L , XL , XXL Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
|
Grips | Bontrager XR Trail Comp, nylon lock-on |
*Stem | Size: XXS , XS , S Bontrager Comp, 31.8mm, 7 degree, 35mm length |
Size: M , ML , L Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length |
|
Size: XL Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length |
|
Size: XXL Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 70mm length |
|
Headset | Semi-integrated, 1-1/8" |
Brake rotor | Tektro, 6-bolt, 160mm |

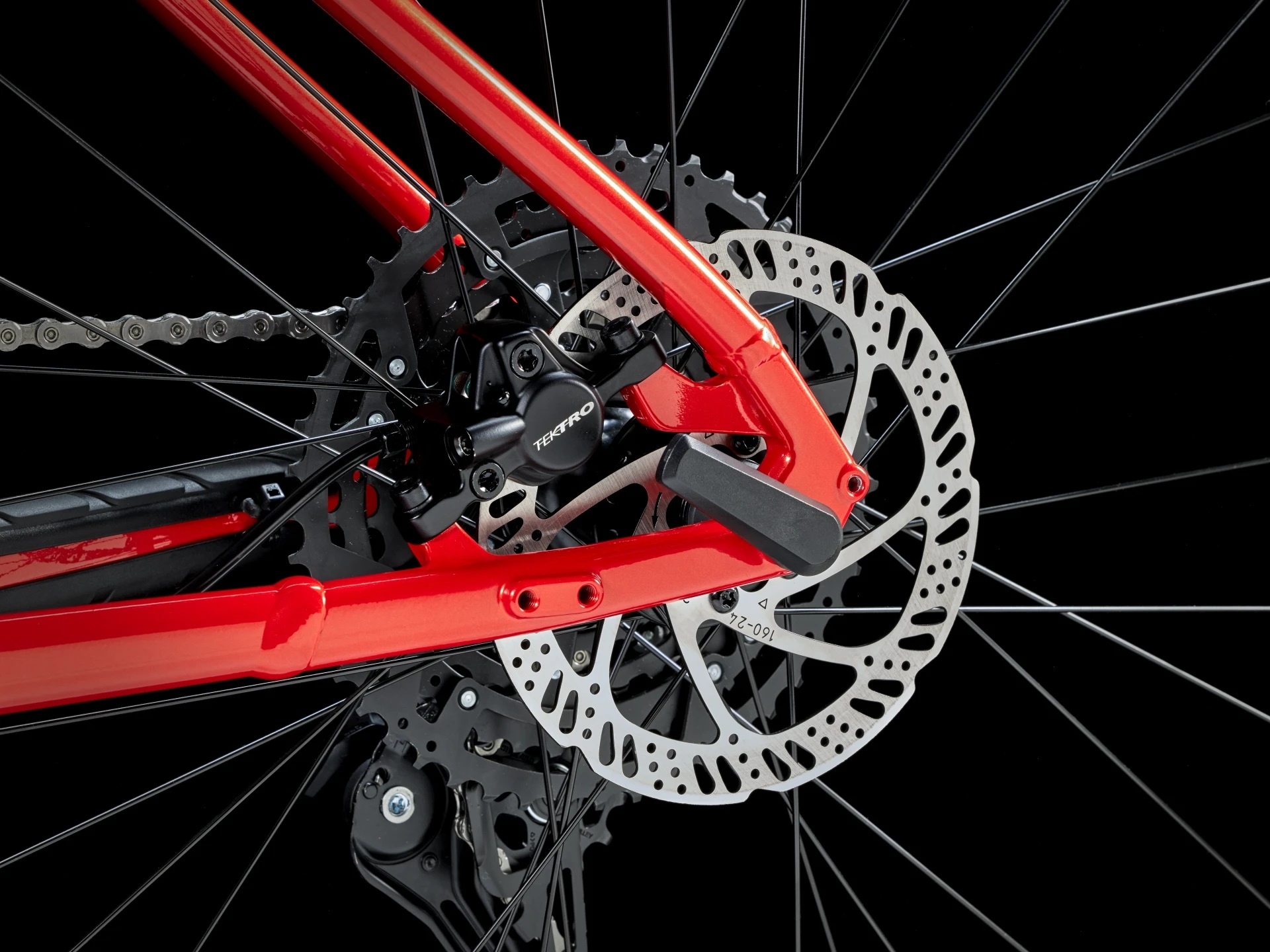

*Brake Set | Size: XXS , XS , S Tektro HD-M276 hydraulic disc, short reach |
Size: M , ML , L , XL , XXL Tektro HD-M275 hydraulic disc |
|
Rotor size | Max brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer |
Weight | M - 14.50 kg / 31.97 lbs (with tubes) |
---|---|
Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
Â
Â
EAN | 745889472073 |
