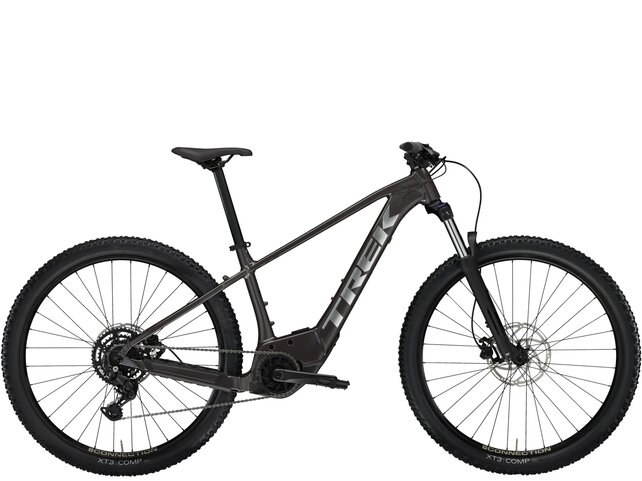

Trek Marlin+ 6 - Dnister Black
- More information? Contact us about this product
- Add to comparison list
It's right for you if...
You want a boost of power on the trail without spending an arm and a leg. You love the trail to town capability of Marlin and want a ride that helps you ride a little faster or pedal farther.
Â
The tech you get
An Alpha Platinum Aluminum frame with real mountain bike geometry and a coil-sprung 120mm fork. A reliable Bosch Active Line Plus 50Nm drive system capable of assisting you to speeds of 20mph/32kph. A compact Purion 200 remote with built in display. Plus, hydraulic disc brakes and 9-speed Shimano CUES drivetrain that performs well, even under load.
Â
The final word
Â
Marlin+ is the go-to for riders looking to dip their toes into the electric mountain bike world. Its trail-savvy frame gives you confident control, and Bosch Active Line Plus motor offers enough power to take the burn out of long climbs.
Â
 Why you'll love it
- Its AUTO mode adaptive motor support recognizes speed reductions and adjusts assistance automatically
- The 120mm suspension keeps your ride feeling smooth through bumps, roots, and rough stuff
- Marlin+ is easy to use with simple controls and intuitive support, so you can focus on the ride ahead, not complicated remotes
- Trail-savvy geometry keeps handling easy and confident from singletrack to city streets
- Tons of rack and fender mounts let you customize your ride for the trail or taking on daily commutes
Â
Â
Frame
Â

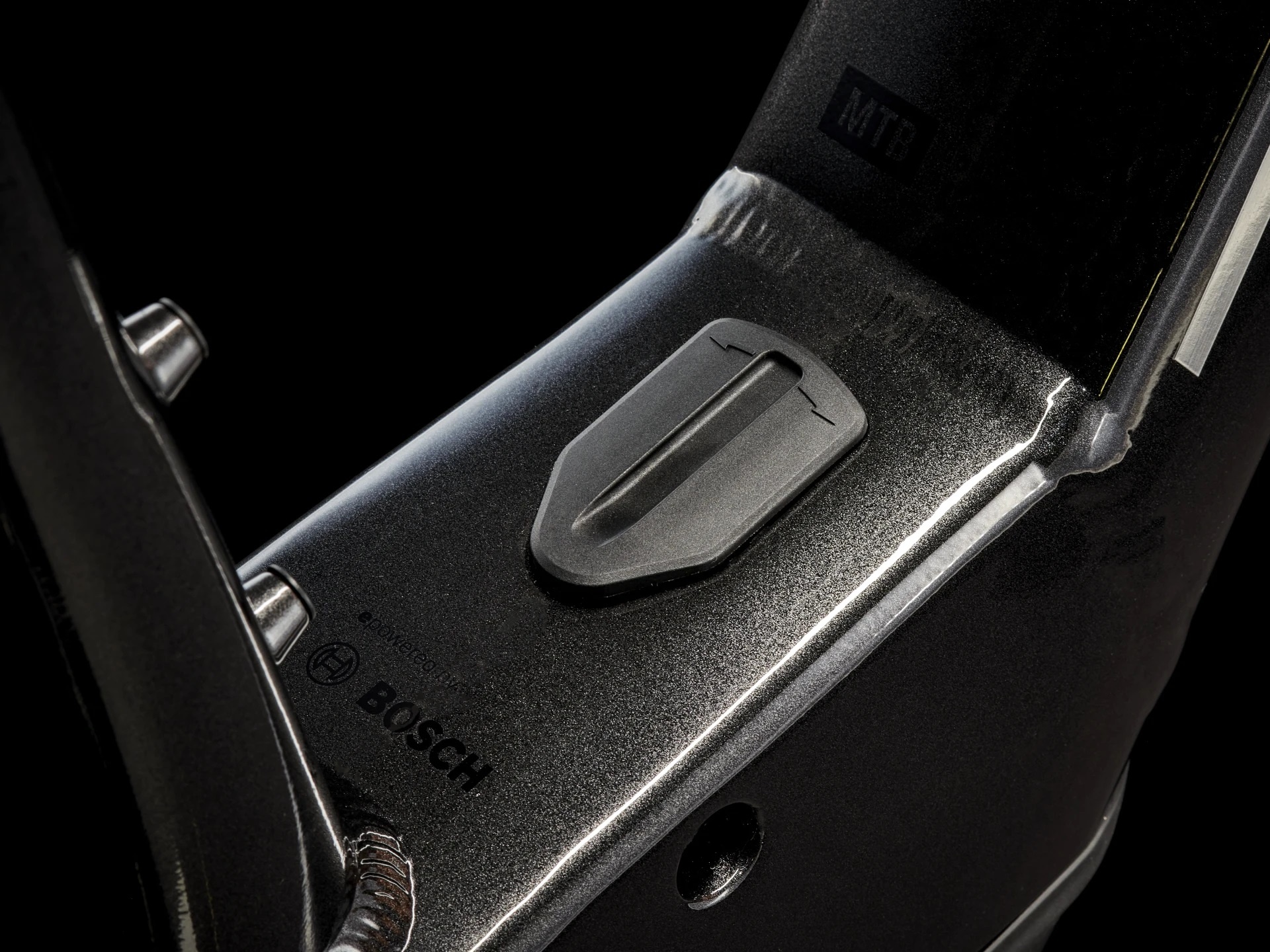

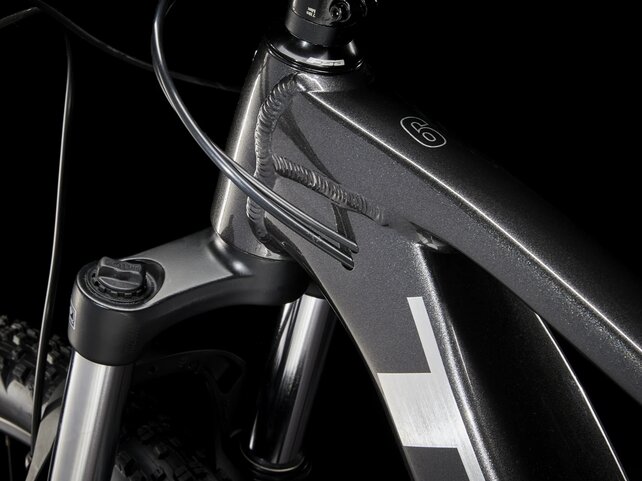

*Frame | Size:Â XS Alpha Gold Aluminum, curved top tube, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle |
---|---|
Size:Â S , M , L , XL Alpha Gold Aluminum, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle |
|

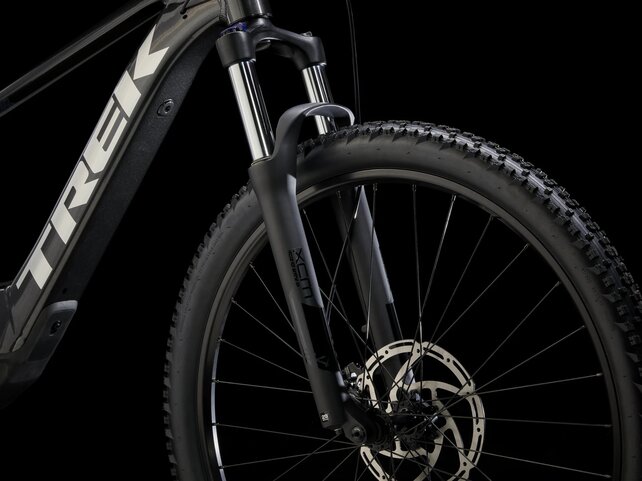

*Fork | Size:Â XS SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44mm offset, Boost110, 15mm thru axle, 100mm travel |
Size:Â S , M , L , XL SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44mm offset, Boost110, 15mm thru axle, 120mm travel |
Hub front | Shimano TC500 alloy, centerlock, 110x15mm thru axle |
---|---|
Hub rear | Shimano TC500 alloy, centerlock, 148x12mm thru axle |
Skewer rear | Bontrager Switch thru axle, removable lever |
Rim | Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve |
*Tire | Size:Â XS , S Bontrager XT3 Comp, wire bead, 30 tpi, 27.5x2.40'' |
Size:Â M , L , XL Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40'' |
Battery | Bosch CompactTube 400Wh |
---|---|

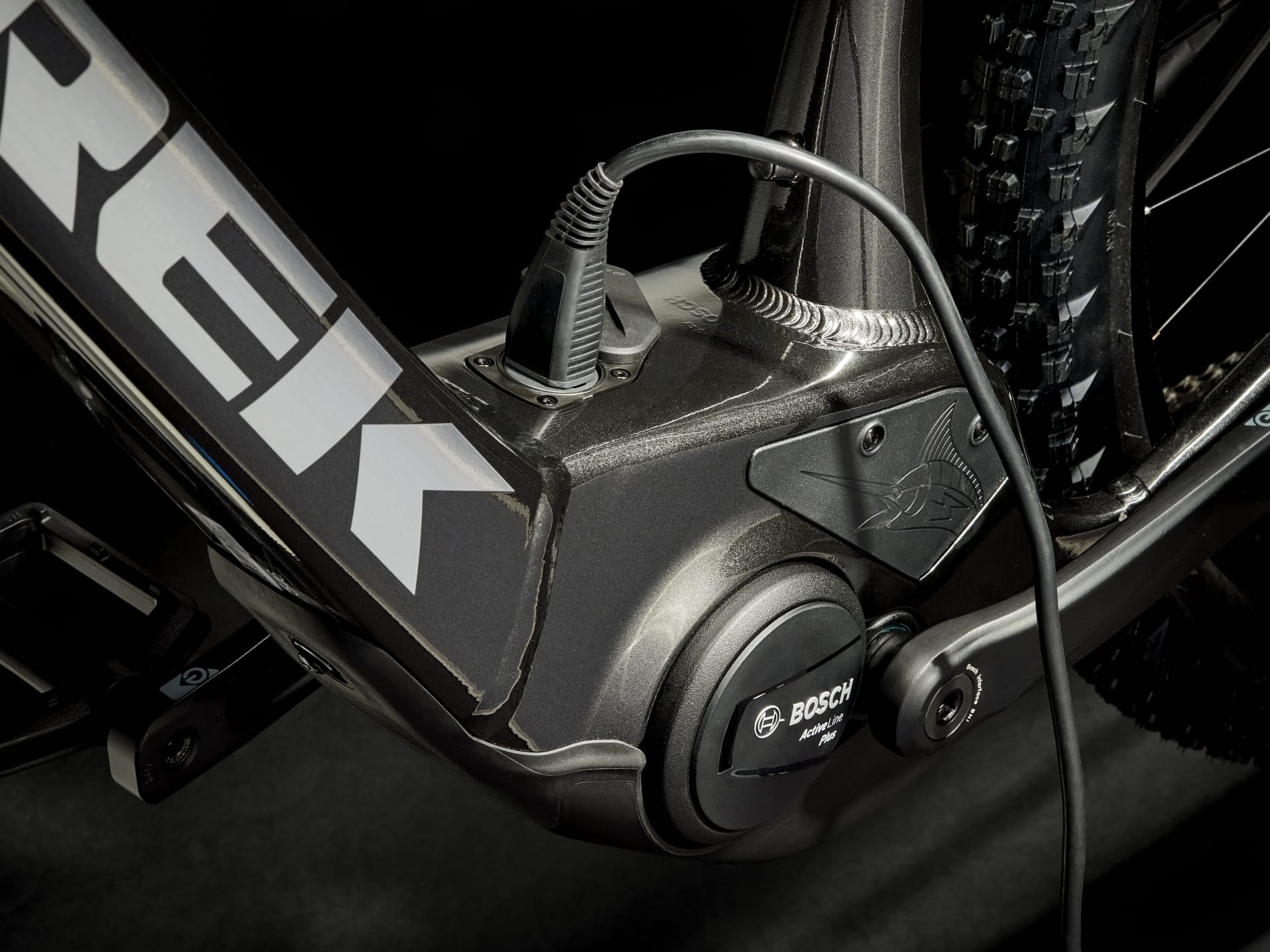

Charger | Bosch standard 2A, 110V, smart system |

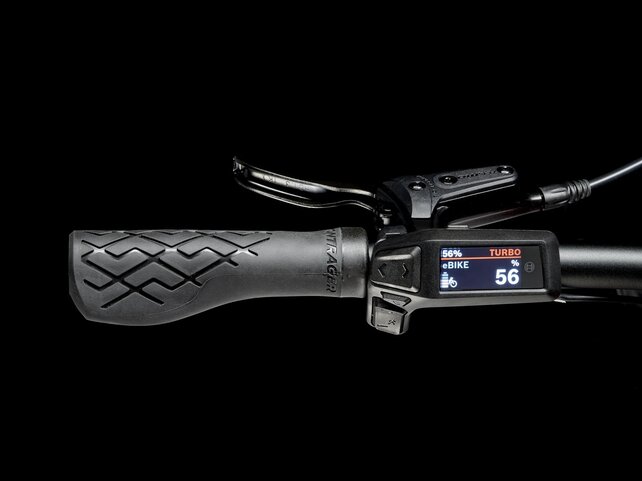

Computer | Bosch Purion 200 |

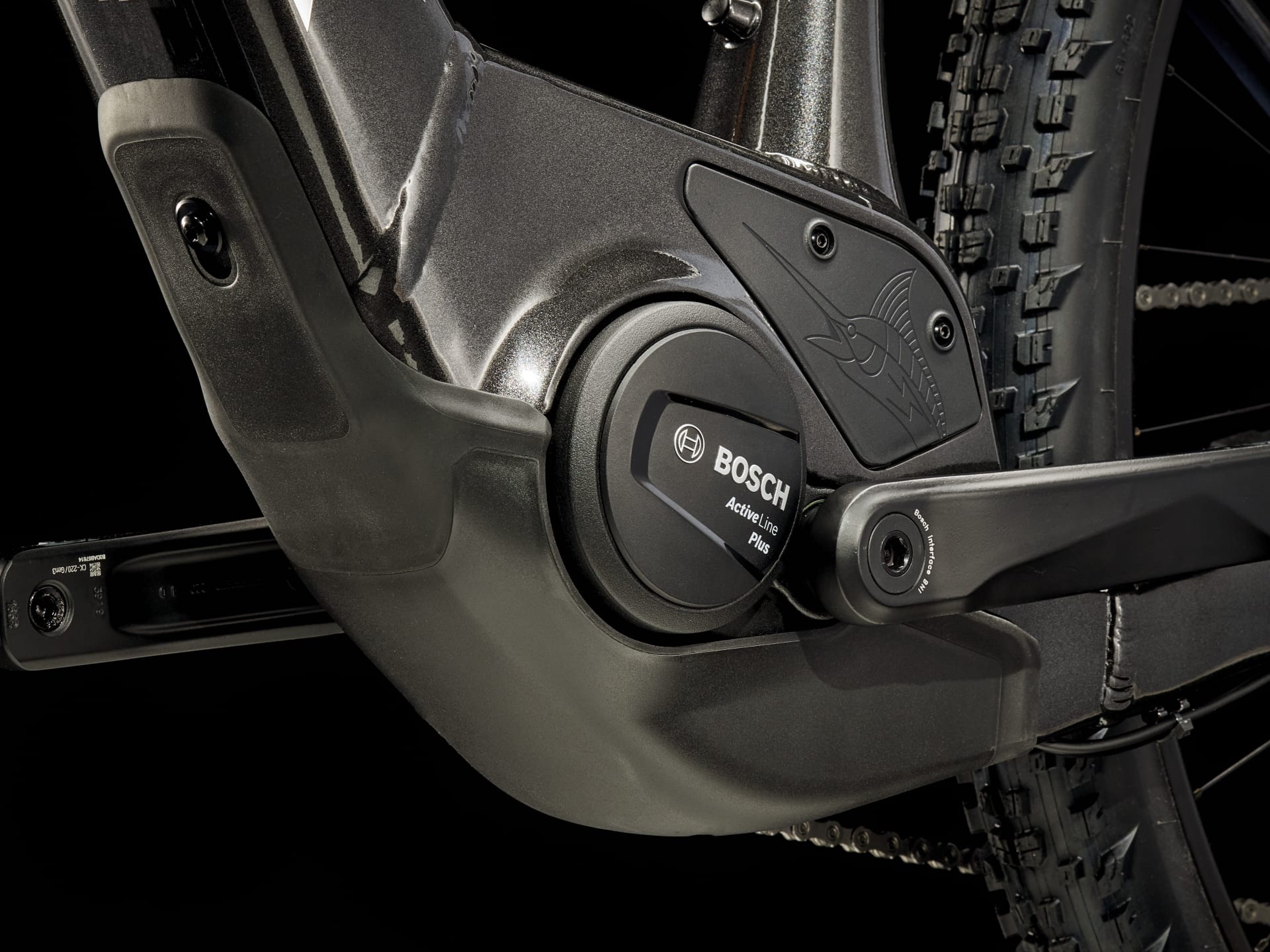

Motor | Bosch Active Line Plus, 50 Nm |
Shifter | Shimano U4000, 9 speed |
---|---|

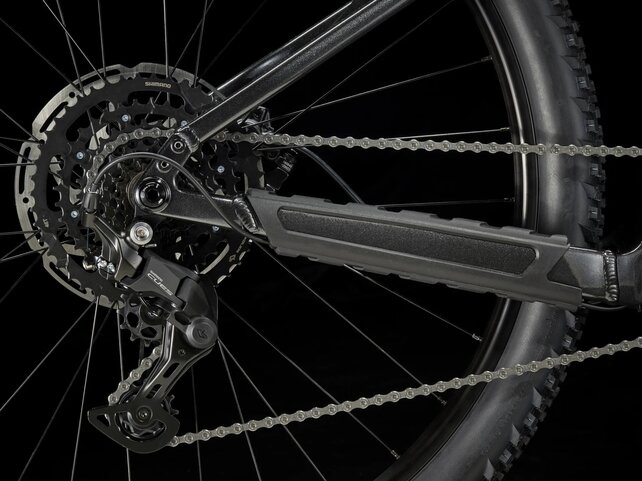

Rear derailleur | Shimano CUES U4000 |
Crank | FSA CK-220, 165mm length |
Chain ring | FSA, 32T, steel |
Cassette | Shimano LINKGLIDE LG300, 11-46, 9 speed |
Chain | Shimano LG500 |
Pedal | VP-536 nylon platform |
Saddle | Bontrager Verse P3, steel rails |
---|---|
*Seatpost | Size:Â XS , S Bontrager alloy, 31.6mm, 12mm offset, 330mm length |
Size:Â M Bontrager alloy, 31.6mm, 12mm offset, 360mm length |
|
Size:Â L , XL Bontrager alloy, 31.6mm, 12mm offset, 400mm length |
|
*Handlebar | Size:Â XS , S Bontrager alloy, 31.8mm, 15mm rise, 720mm width |
Size:Â M , L , XL Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
|
Grips | Bontrager XR Endurance Comp, lock-on |
*Stem | Size:Â XS Bontrager Comp, 31.8mm, 7 degree, 35mm length |
Size:Â S , M , L Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length |
|
Size:Â XL Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length |
|
Headset | Semi-integrated, loose ball bearing, 1-1/8" top, 1.5" bottom |
Brake rotor | Tektro, centerlock, 203mm |
Brake Set | Tektro HD-M275 hydraulic disc |
Weight | M - 22.45 kg / 49.5 lbs (with tubes) |
---|---|
Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
Â
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
Â
Â
EAN | 745889469073 |
