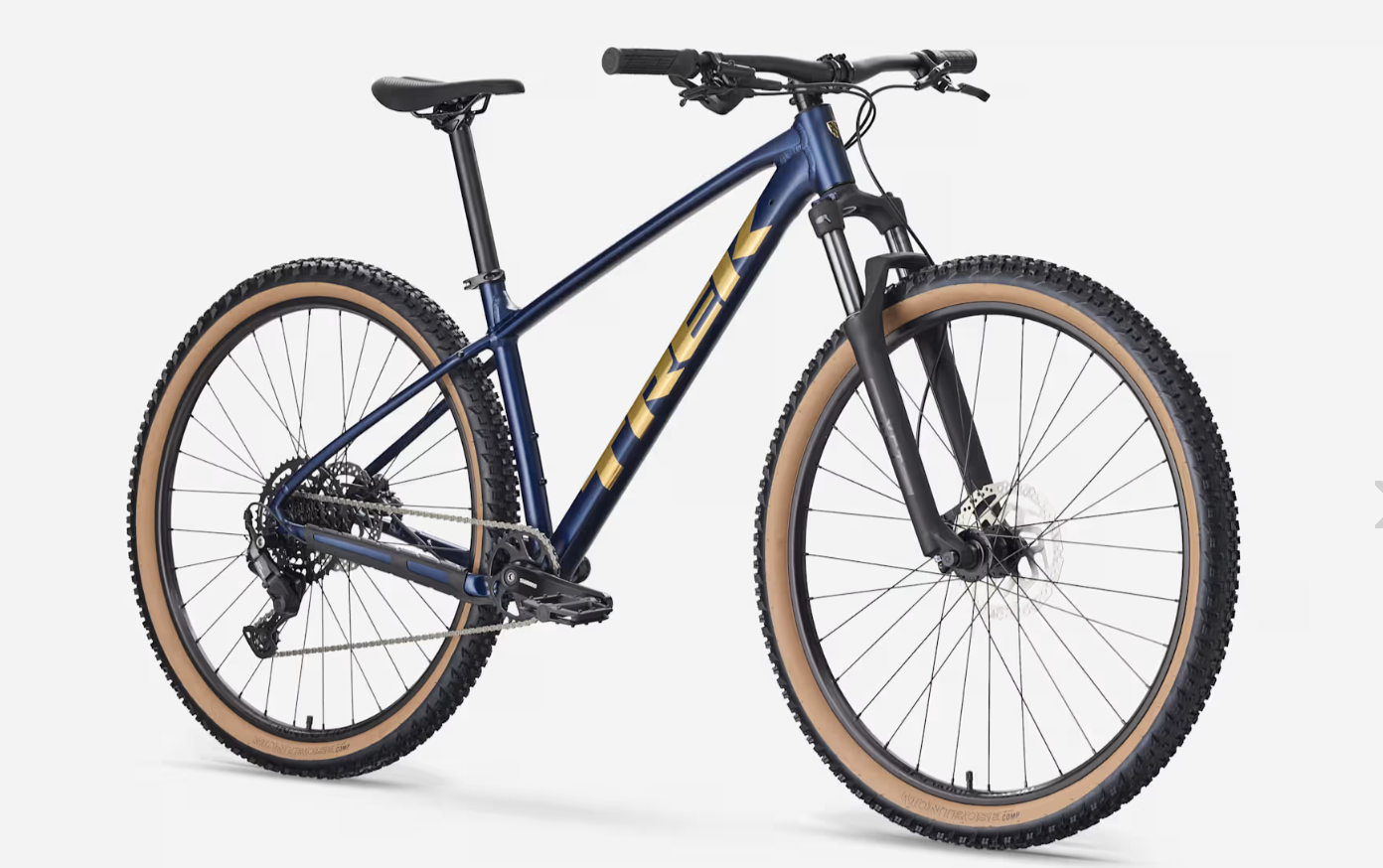

Trek Marlin 5 Gen 3 - Mulsanne Blue

C$929.99 Excl. tax

In stock

Add to cart

More information? Contact us about this product
Add to comparison list

Product description

Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 9-speed Shimano CUES shifting, and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.

*Please note - spec applies to all sizes unless listed separately

*Frame: Size: XS

Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew

Size: S , M , ML , L , XL , XXL

Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
*Fork: Size: XS

SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel

Size: S

SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel

Size: M , ML , L , XL , XXL

SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 29" wheel, 100 mm QR, 100 mm travel

Hub front: Formula DC-20, alloy, 6-bolt, 100x5mm
Skewer front: Trek Thru-Skew
Hub rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm
Skewer rear: 173x5mm QR
Rim: Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
Spokes: 14g stainless steel, black
*Tire: Size: XS , S

Bontrager Montrose Comp, wire bead, 30 tpi, 27.5x2.4''

Size: M , ML , L , XL , XXL

Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.4''

Shifter: Shimano U4000, 9 speed
Rear derailleur: Shimano CUES U4000
*Crank: Size: XS , S , M , ML

Shimano CUES U4001, 32T, 52mm chainline, 170mm length

Size: L , XL , XXL

Shimano CUES U4001, 32T, 52mm chainline, 175mm length
Bottom bracket: Shimano, 73mm, threaded cartridge, 122.5mm spindle
Cassette: Shimano LINKGLIDE LG300, 11-46, 9 speed
Chain: Shimano LG500
Pedal: VP-536 nylon platform

Saddle: Bontrager Verse Short, stainless steel rails
*Seatpost: Size: XS , S , M

Bontrager alloy, 31.6mm, 12mm offset, 330mm length

Size: ML , L , XL , XXL

Bontrager alloy, 31.6mm, 12mm offset, 400mm length
*Handlebar: Size: XS

Bontrager alloy, 31.8mm, 5mm rise, 690mm width

Size: S

Bontrager alloy, 31.8mm, 15mm rise, 720mm width

Size: M , ML , L , XL , XXL

Bontrager alloy, 31.8mm, 15mm rise, 750mm width
Grips: Trek Line Comp, nylon lock-on
*Stem: Size: XS , S

Bontrager Comp, 31.8mm, 7 degree, 35mm length

Size: M , ML , L
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length

Size: XL
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length

Size: XXL
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 70mm length
Headset: Semi-integrated, 1-1/8"
Brake: Shimano MT200 hydraulic disc
*Brake rotor: Size: XS , S , M , ML , L , XL , XXL

Shimano RT26, 6-bolt, 160mm

Size: M , ML , L , XL , XXL

Shimano RT26, 6-bolt, 180mm
Brake Set: Shimano MT200 hydraulic disc

Weight: M - 15.10 kg / 33.29 lbs
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.

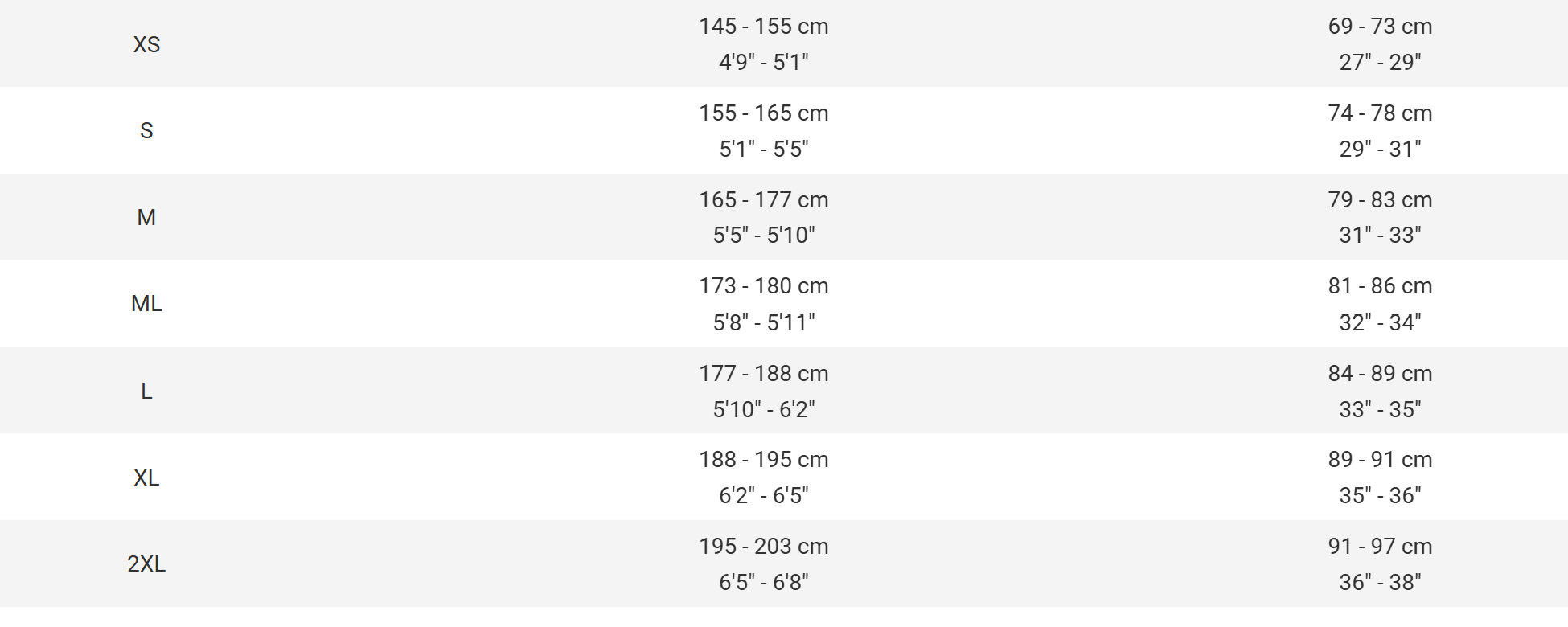

Size Chart
