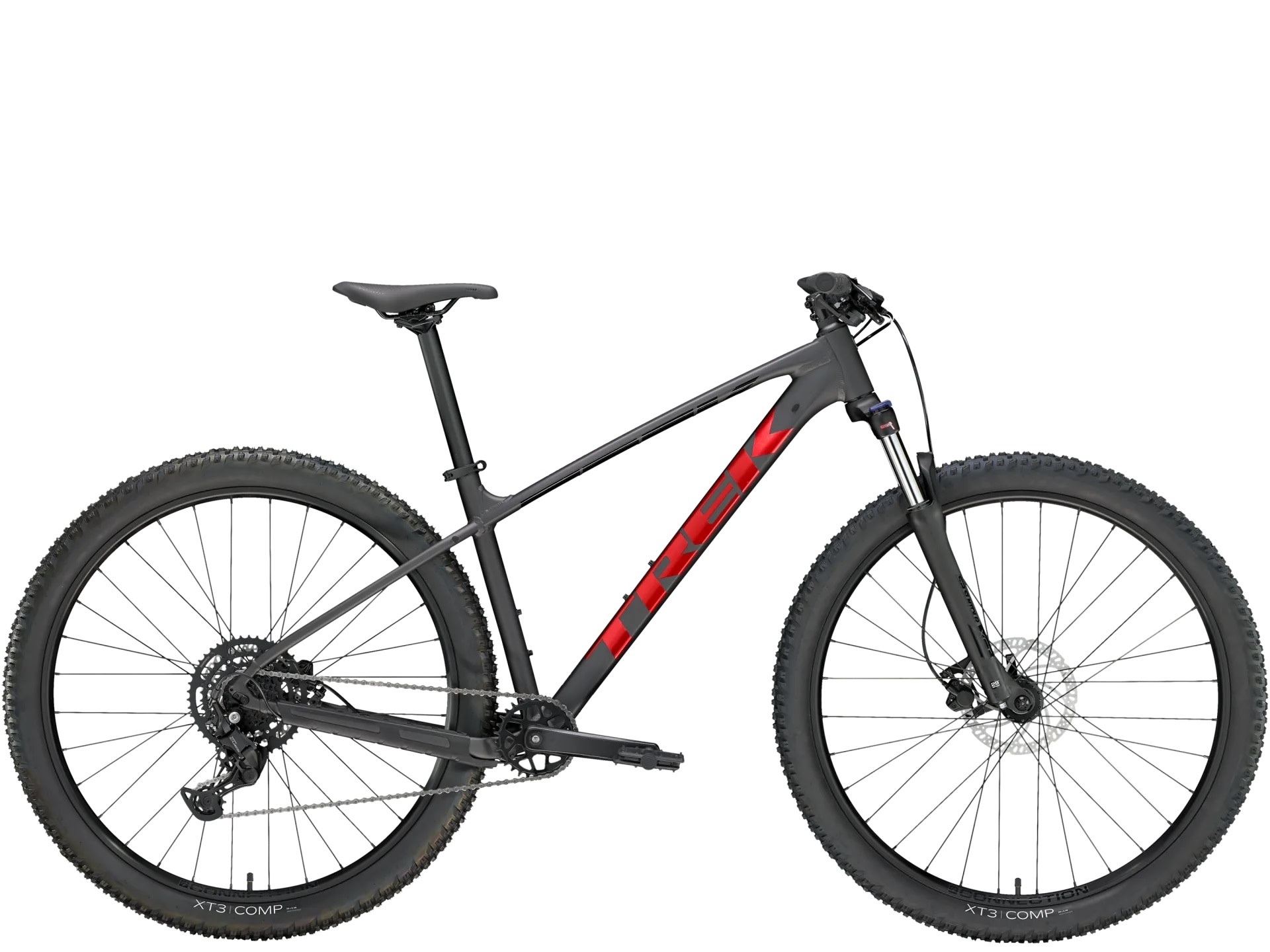

Trek Marlin 5 Gen 3 - Matte Dnister Black

Enlarge image

Trek Marlin 5 Gen 3 - Matte Dnister Black

C$929.99 Excl. tax

Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 9-speed Shimano CUES shifting, and mounts for a rack and kickstand that make it an ideal

In stock

Add to cart

More information? Contact us about this product
Add to comparison list

Product description

You're new to the trail and you’re looking for a real mountain bike that doubles as a commuter — and you want it all at an exceptional value.

A lightweight aluminum frame with internal routing to protect your cables and add to the bike's sleek look, an upgraded 9-speed Shimano CUES drivetrain, a wide range of gearing so you always have the right gear for your terrain, powerful hydraulic disc brakes, and a terrain-smoothing suspension fork with a lockout.

Marlin 5 is a great ride for all your adventures. It's also versatile and a popular ride on college campuses because the rack and kickstand mounts make it easy to accessorize and haul a load.

Marlin Gen 3 gives you serious trail capability, with big tire clearance and slack, confidence-boosting geometry that keeps you stable from singletrack to city
Rack and fender mounts make it easy to accessorize, so your mountain bike can double as a rugged commuter
Its ThruSkew system is safer, simpler, and stronger, plus it makes removing the rear wheel easy for flat fixes in a pinch

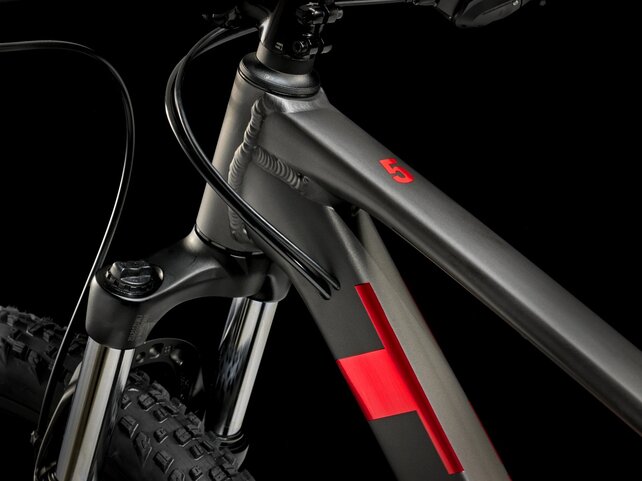

Internal routing makes it easy to add a dropper post that lets you lower your saddle on the fly for more confident descending
Marlin models in sizes XXS and XS have a curved top tube and lower standover height that makes it easier for smaller riders to mount and dismount

*Frame	Size: XS Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
*Frame	Size: S , M , ML , L , XL Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew

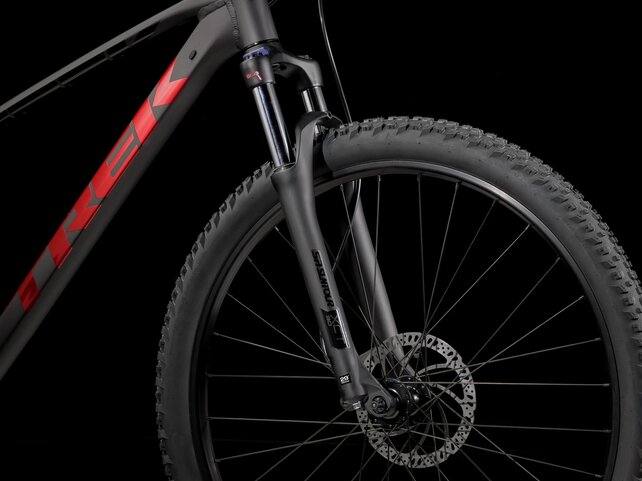

*Fork	Size: XS SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5" wheel, 100mm QR, 80mm travel
	Size: S SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
	Size: M , ML , L , XL SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46mm offset for 29" wheel, 100mm QR, 100mm travel
Max compatible fork travel	120mm, XXS: 80mm

Wheels

Hub front	Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Hub rear	Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Skewer rear	173x5mm QR
*Rim	Size: XS , S Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve, Black
*Rim	Size: M , ML , L , XL Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
*Tire	Size: XS , S Bontrager XT3 Comp, wire bead, 30 tpi, 27.5x2.40''
*Tire	Size: M , ML , L , XL Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40''
Max tire size	Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer

Drivetrain

Shifter	Shimano U4000, 9 speed

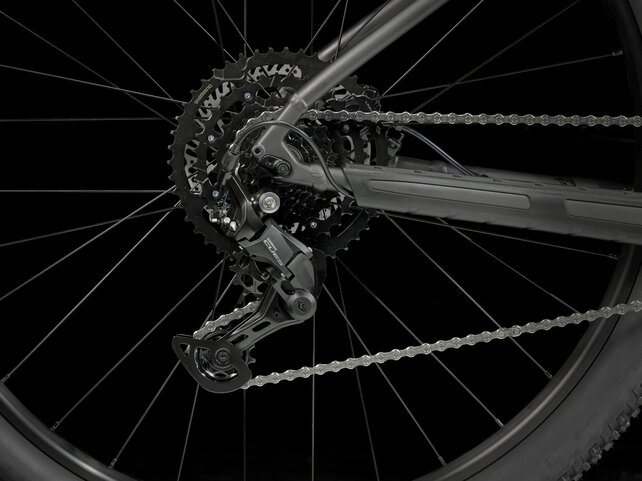

Rear derailleur	Shimano CUES U4000

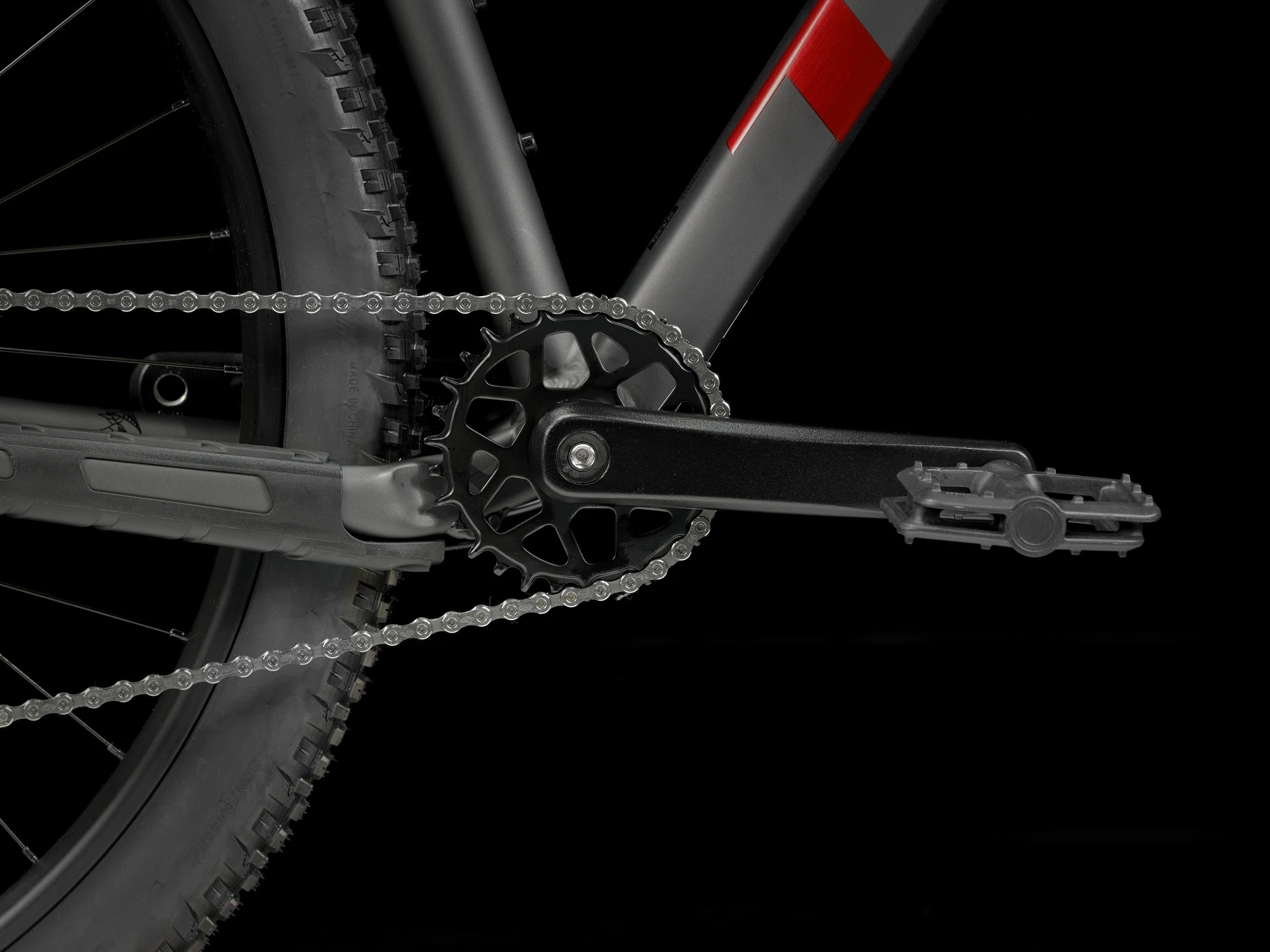

*Crank	Size: XS Prowheel C10Y-NW, 30T steel narrow-wide ring, 160mm length
*Crank	Size: S , M , ML , L , XL Prowheel C10Y-NW, 30T steel narrow-wide ring, 170 mm length
Cassette	Shimano LINKGLIDE LG300, 11-46, 9 speed
Chain	Shimano LG500
Pedal	VP-536 nylon platform
Max chainring size	1x: 34T, 2x: 36/22

Components

*Seatpost	Size: XS , S , M Bontrager alloy, 31.6mm, 12mm offset, 330mm length
*Seatpost	Size: ML , L , XL Bontrager alloy, 31.6mm, 12mm offset, 400mm length
*Handlebar	Size: XS Bontrager alloy, 31.8mm, 5mm rise, 690mm width
	Size: S Bontrager alloy, 31.8mm, 15mm rise, 720mm width
	Size: M , ML , L , XL Bontrager alloy, 31.8mm, 15mm rise, 750mm width
Grips	Bontrager XR Trail Comp, nylon lock-on
*Stem	Size: XS , S Bontrager Comp, 31.8mm, 7 degree, 35mm length
	Size: M , ML , L Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
	Size: XL Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length
Headset	Semi-integrated, 1-1/8"

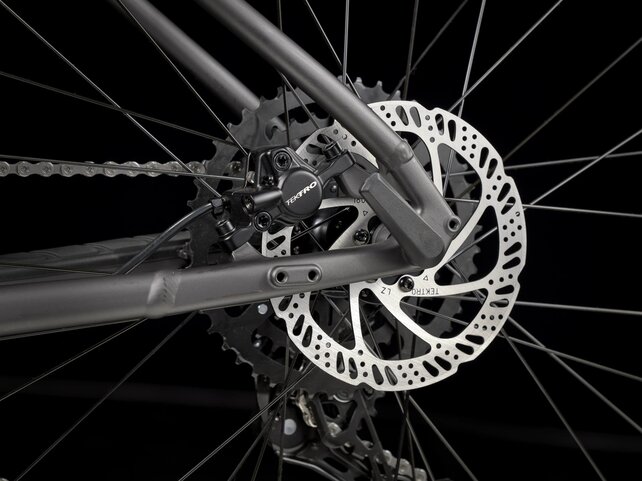

Brake rotor	Tektro, 6-bolt, 160mm
*Brake Set	Size: XS , S Tektro HD-M276 hydraulic disc, short reach
*Brake Set	Size: M , ML , L , XL Tektro HD-M275 hydraulic disc
Rotor size	Max brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer

Weight

Weight	M - 15.10 kg / 33.29 lbs (with tubes)
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
