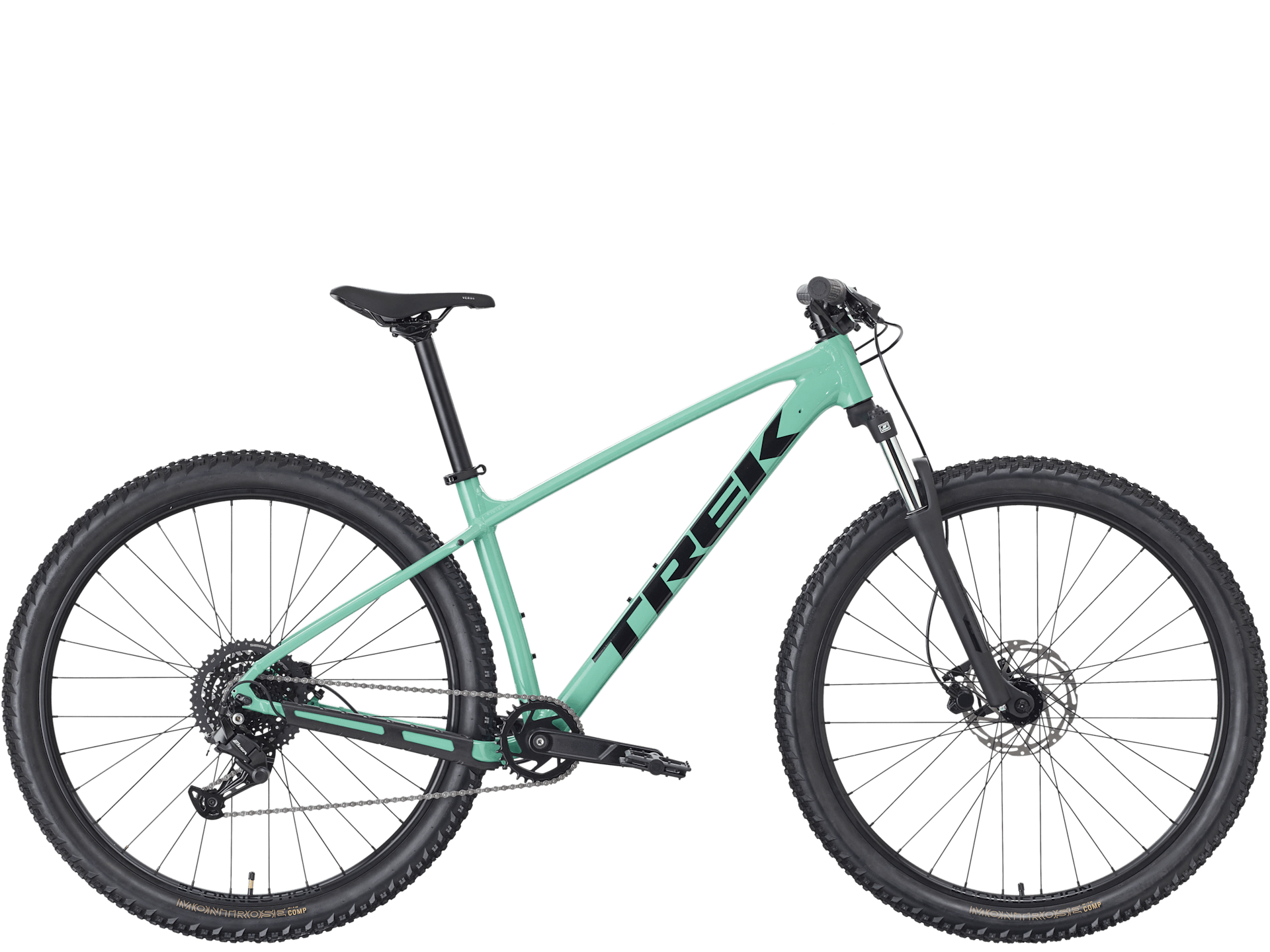

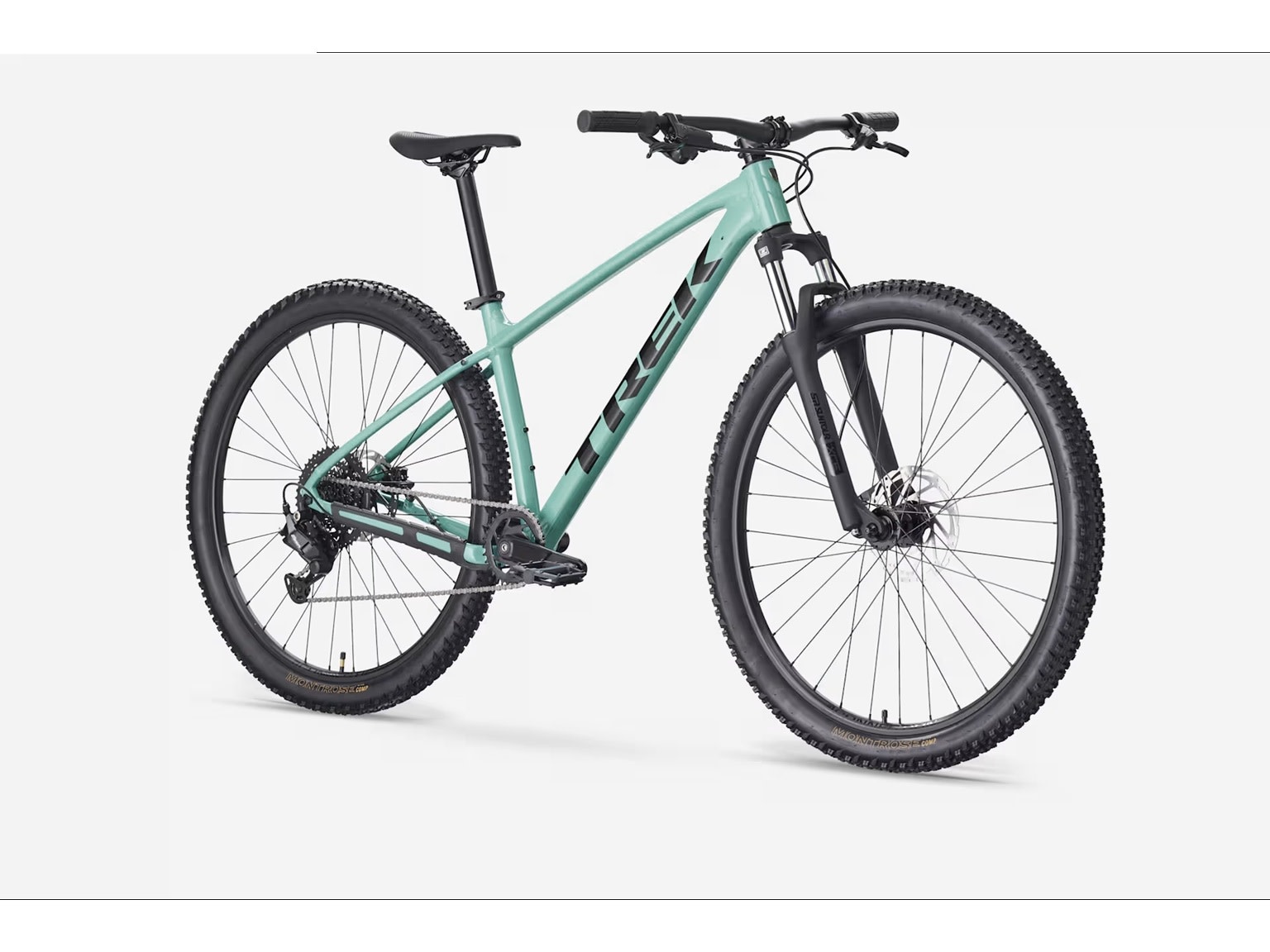

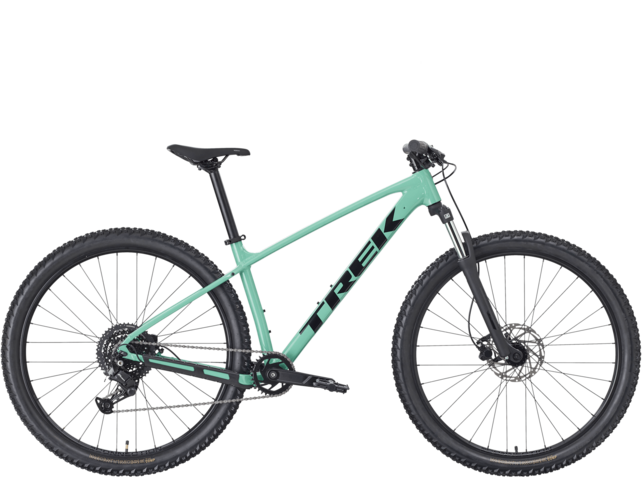

Trek Marlin 4 - Blue Sage

C$749.99 Excl. tax

Out of stock

Out of stock

Product description

*Frame: Size: XXS , XS

Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew

Size: S , M , ML , L , XL

Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
*Fork: Size: XXS

SR Suntour XCM 30, coil spring, preload, hydraulic lockout, 42mm offset for 26" wheel, 100mm QR, 100mm travel

Size: XS

SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel

Size: S

SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel

Size: M , ML , L , XL

SR Suntour XCE 28, coil spring, preload, 46mm offset for 29'' wheel, 100mm QR, 100mm travel

Hub front: Formula DC-20, alloy, 6-bolt, 100x5mm
Skewer front: Rychloupínák 116 x 5 mm.
Hub rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm
Skewer rear: 173x5mm QR
Rim: Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
*Tire: Size: XXS

Bontrager Montrose Comp, wire bead, 30 tpi, 26x2.35''

Size: XS , S

Bontrager Montrose Comp, wire bead, 30 tpi, 27.5x2.4''

Size: M , ML , L , XL

Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.4''

Shifter: Shimano M315, 8 speed
Rear derailleur: Shimano ESSA U2000
*Crank: Size: XXS , XS

ProWheel alloy, 30T narrow-wide steel ring, 160mm length

Size: S , M , ML

ProWheel alloy, 30T narrow-wide steel ring, 170mm length

Size: L , XL

ProWheel alloy, 30T narrow-wide steel ring, 175mm length
Bottom bracket: Závitované ložisko.
Cassette: Shimano HG300, 11-45, 8 speed
Chain: KMC Z8.3, 8 speed
Pedal: nylon platform

Saddle: Bontrager Verse Short, stainless steel rails
*Seatpost: Size: XXS

Bontrager alloy, 31.6 mm, 12 mm offset, 300 mm length

Size: XS , S , M

Bontrager alloy, 31.6mm, 12mm offset, 330mm length

Size: ML , L , XL

Bontrager alloy, 31.6mm, 12mm offset, 400mm length
*Handlebar: Size: XXS , XS

Bontrager alloy, 31.8mm, 5mm rise, 690mm width

Size: S

Bontrager alloy, 31.8mm, 15mm rise, 720mm width

Size: M , ML , L , XL

Bontrager alloy, 31.8mm, 15mm rise, 750mm width
Grips: Trek Line Comp, nylon lock-on
*Stem: Size: XXS , XS , S

Bontrager Comp, 31.8mm, 7 degree, 35mm length

Size: M , ML , L
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length

Size: XL
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length
Headset: Semi-integrated, 1-1/8''
*Brake: Size: XXS , XS , S

Tektro HD-M276 hydraulic disc

Size: XXS , XS , S , M , ML , L , XL

Power BH-M286TF hydraulic disc, 160mm rotor

Size: M , ML , L , XL

Tektro HD-M275 hydraulic disc

Size: M , ML , L , XL

Power BH-M286TF hydraulic disc, 180mm rotor
*Brake rotor: Size: XXS , XS , S , M , ML , L , XL

Tektro, 6-bolt, 160mm

Size: M , ML , L , XL

Tektro, 6-bolt, 180mm

Weight: M - 14.90 kg / 32.85 lbs
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

Frameset
