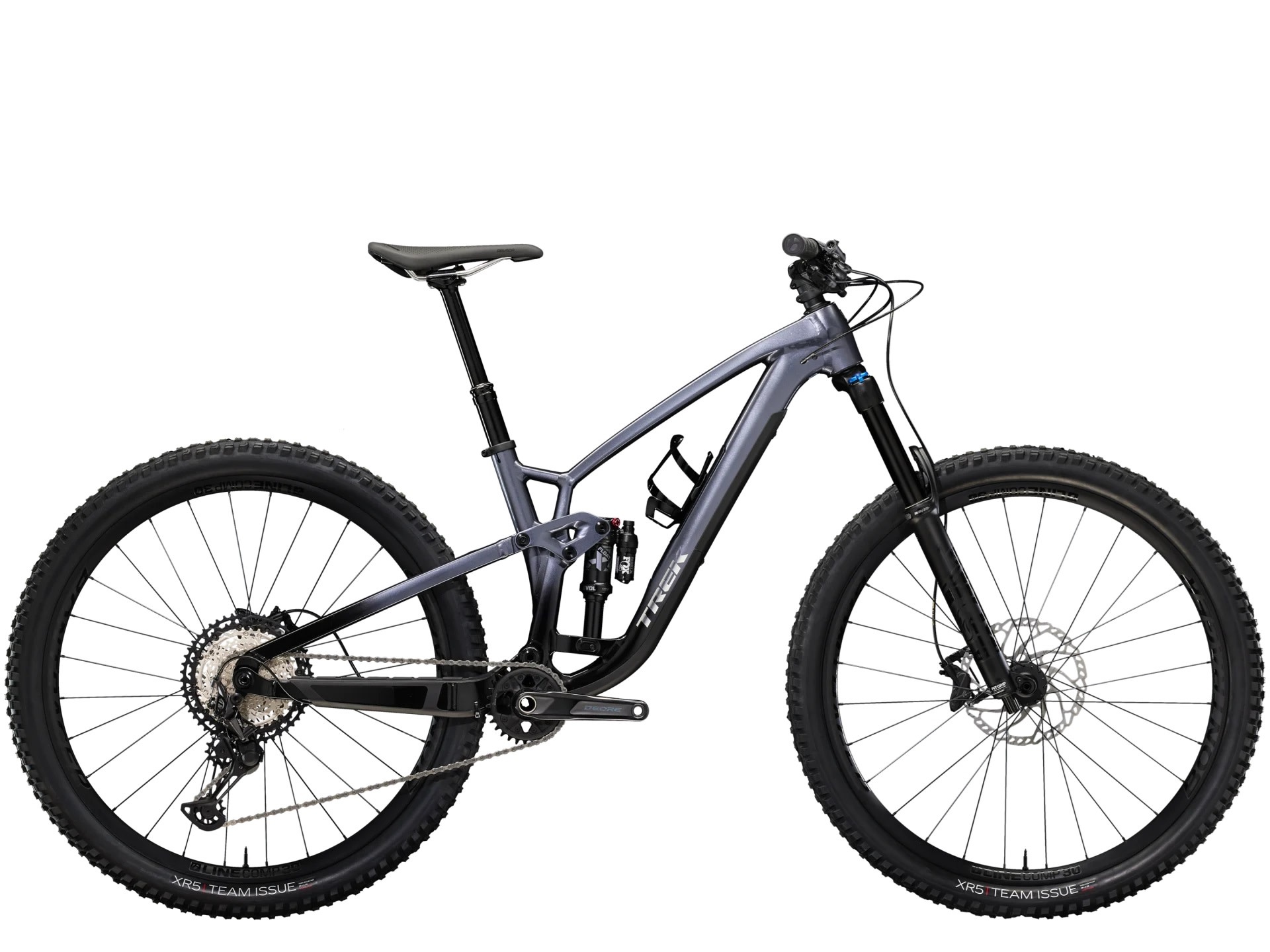

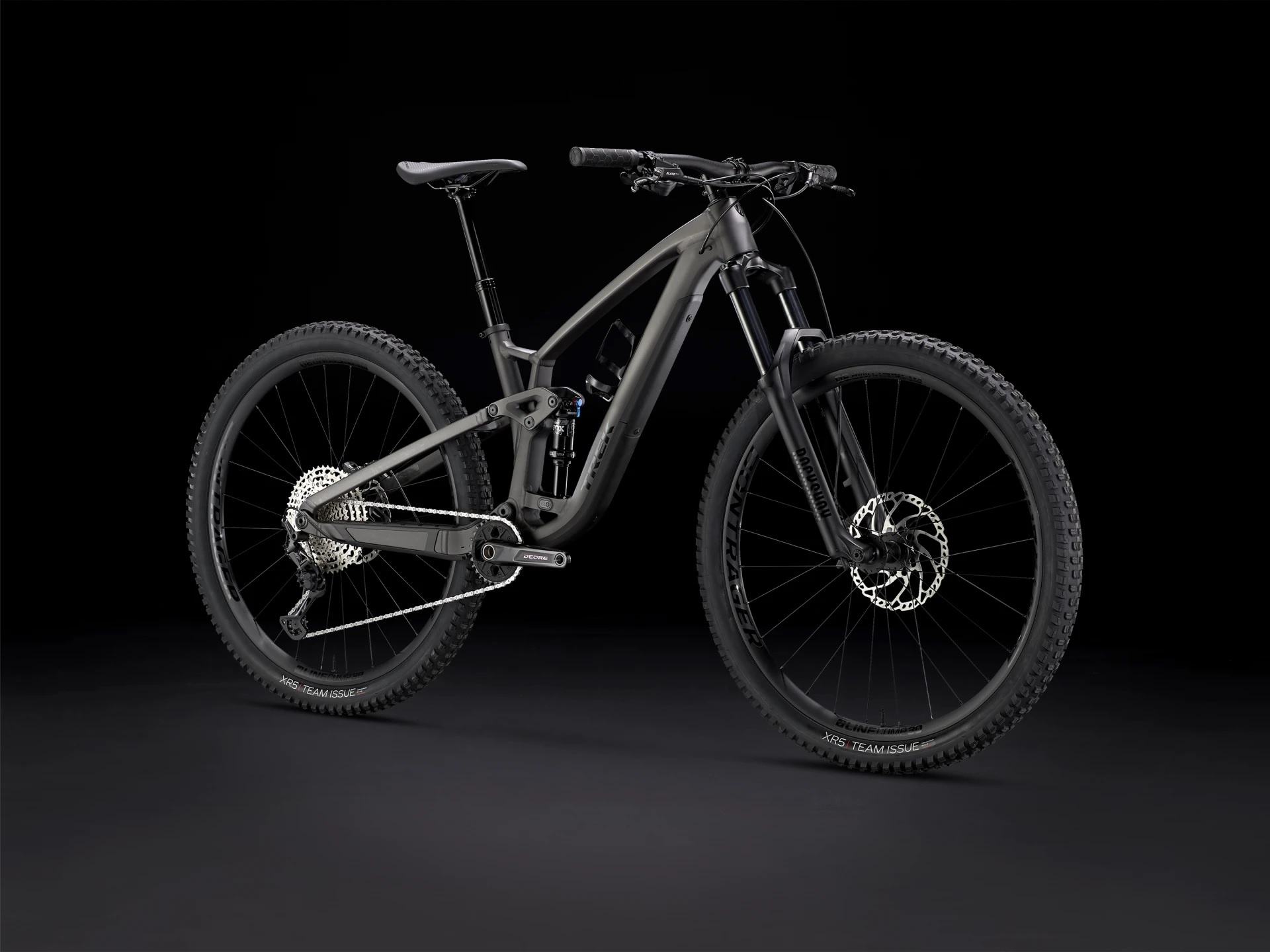

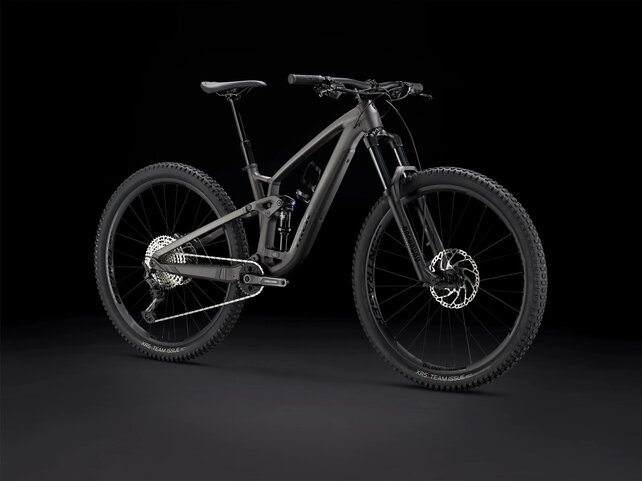

Trek Fuel EX 8 Gen 6 - Galactic Grey to Black Fade
- More information? Contact us about this product
- Add to comparison list
It's right for you if...
You want a full suspension trail bike that prioritizes suspension and shifting performance over a more expensive carbon frame.
The tech you get

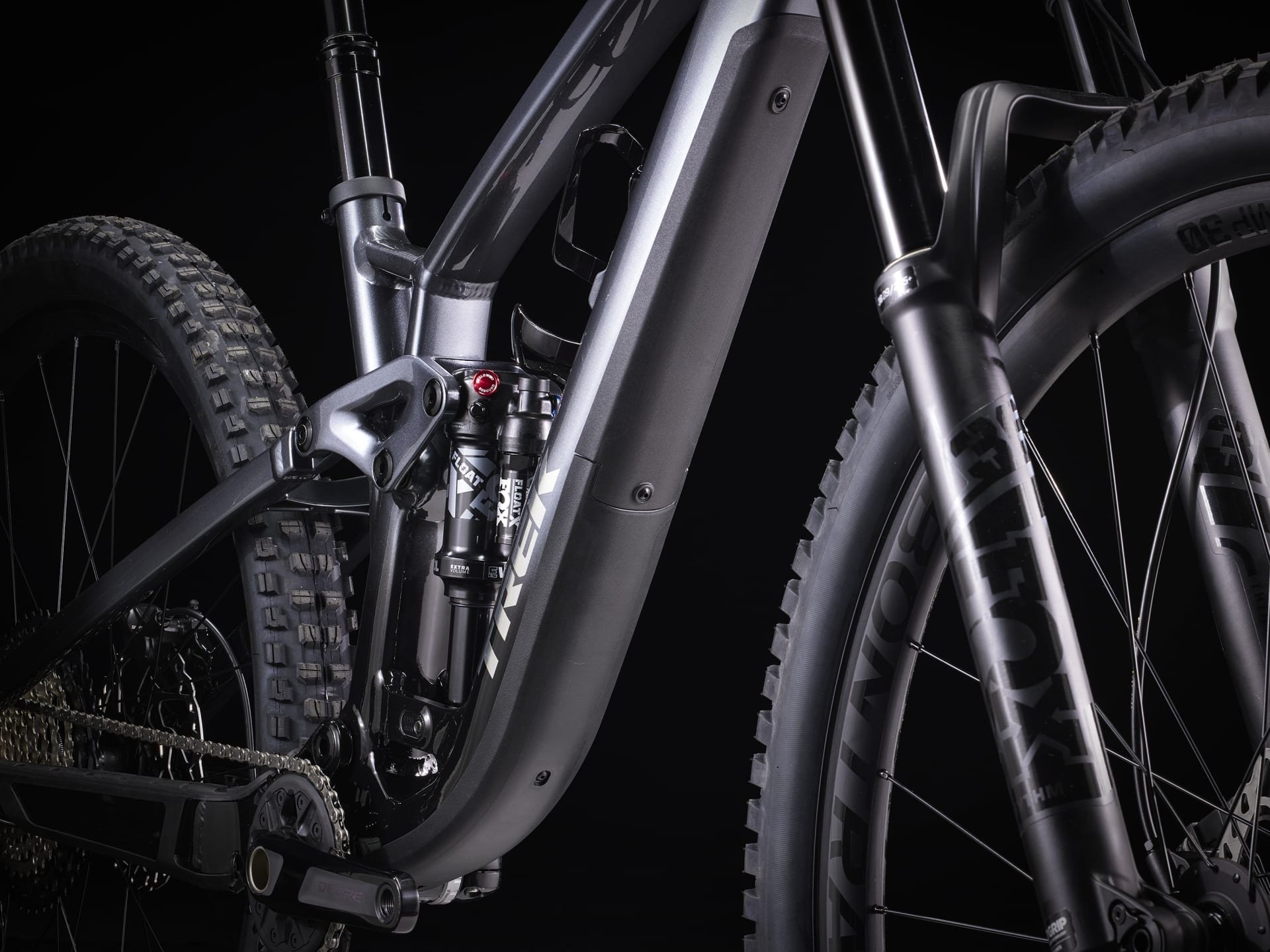

A light and stiff alloy frame with 150mm FOX Rhythm fork with Float EVOL air spring and GRIP damper for small bump compliance, plus a FOX Performance Float X rear shock. A Shimano XT 12-speed drivetrain for snappy shifting, and tubeless-ready Bontrager wheels. Plus, new adjustable geometry that lets you take control of your setup.
The final word
For the rider who doesn't want to be limited on the trail, Fuel EX 8 is ready to handle everything. Its progressive trail geometry is built to keep you charging, and upgraded components are the cherry on top.
Why you'll love it
- This bike is built to take on the singletrack, with modern geometry that's evolved to handle the rough and rowdy
- You'll get upgraded components where it matters most, with 12-speed XT shifting, and a rock-gobbling FOX Rhythm 36 fork
- With the adjustable angle headset (angled cups sold separately) and Mino Link, you can choose from six different geometry configurations
- We expanded our size range to ensure a better fit for all riders, and use the best-fitting wheels for each frame size: XS frames get 27.5˝ wheels, S frames get to choose between 27.5˝ or 29˝, and sizes M and up get 29˝ wheels
- Guided internal routing, universal derailleur hanger, improved hardware, and a threaded BB make maintenance a breeze

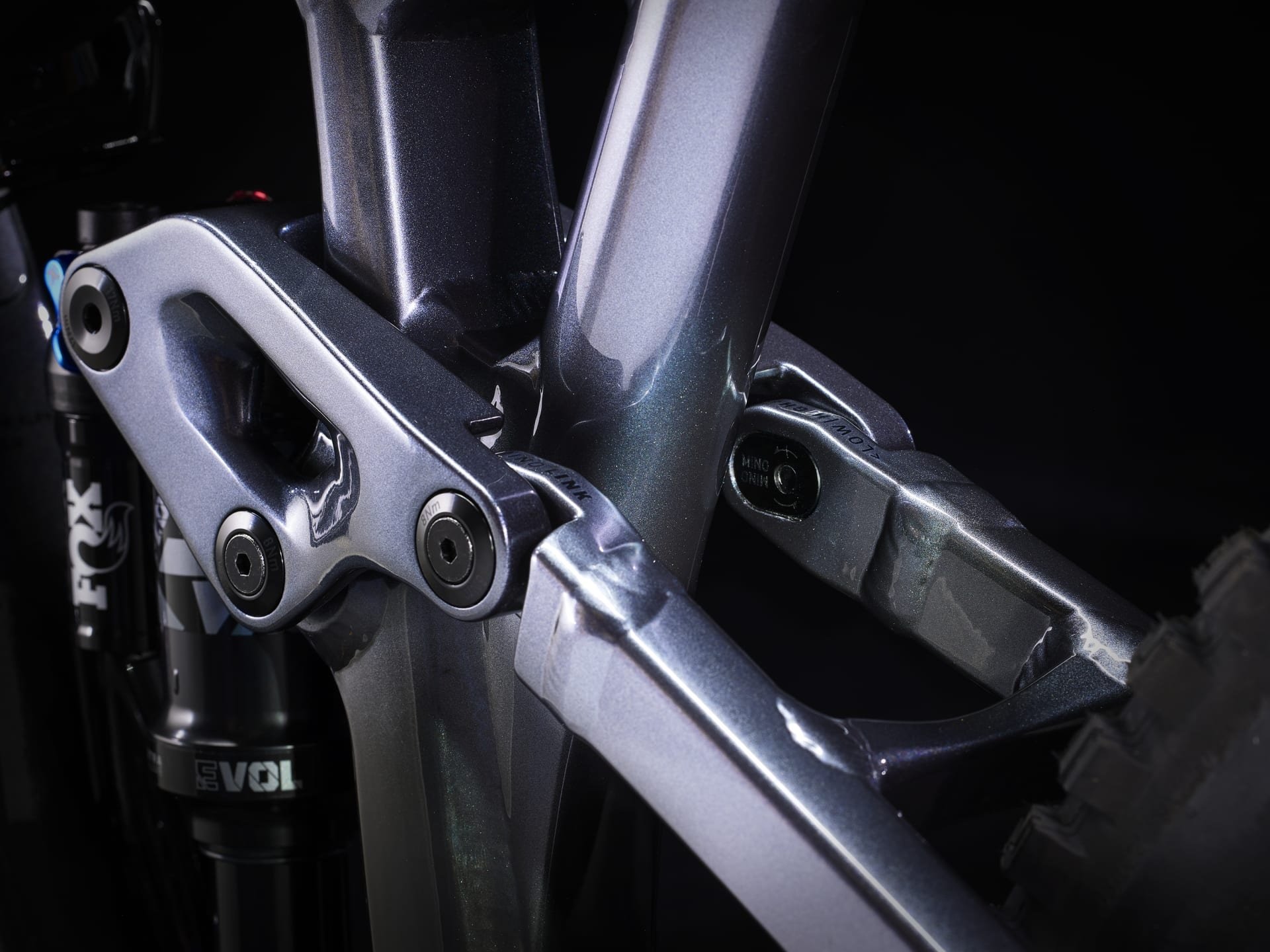

| Frame | Alpha Platinum Aluminum, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140mm travel |
|---|---|
| *Fork | Size: XS , S Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 140mm travel |
| Size: S , M , ML , L , XL , XXL Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 150mm travel |
|

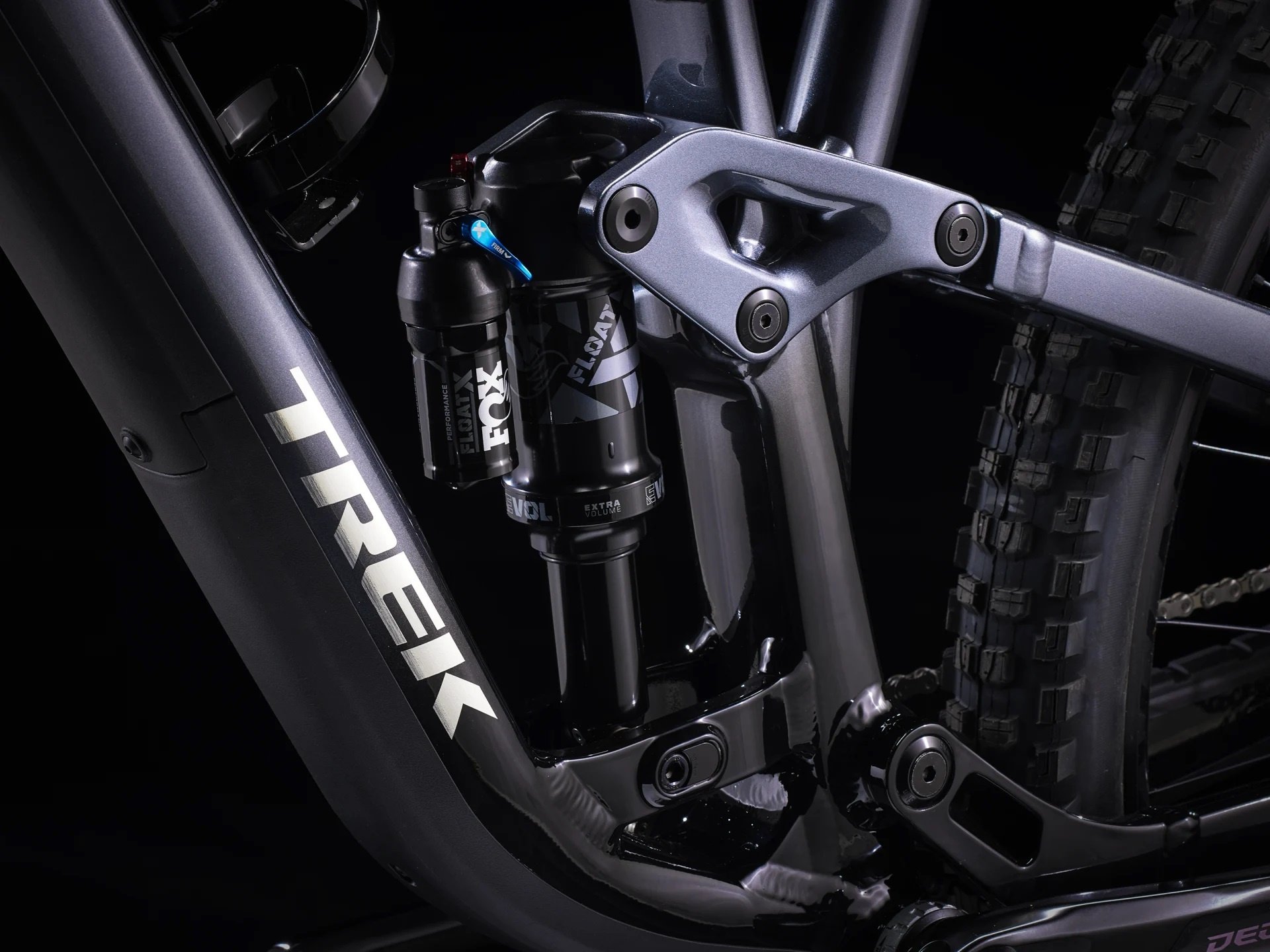

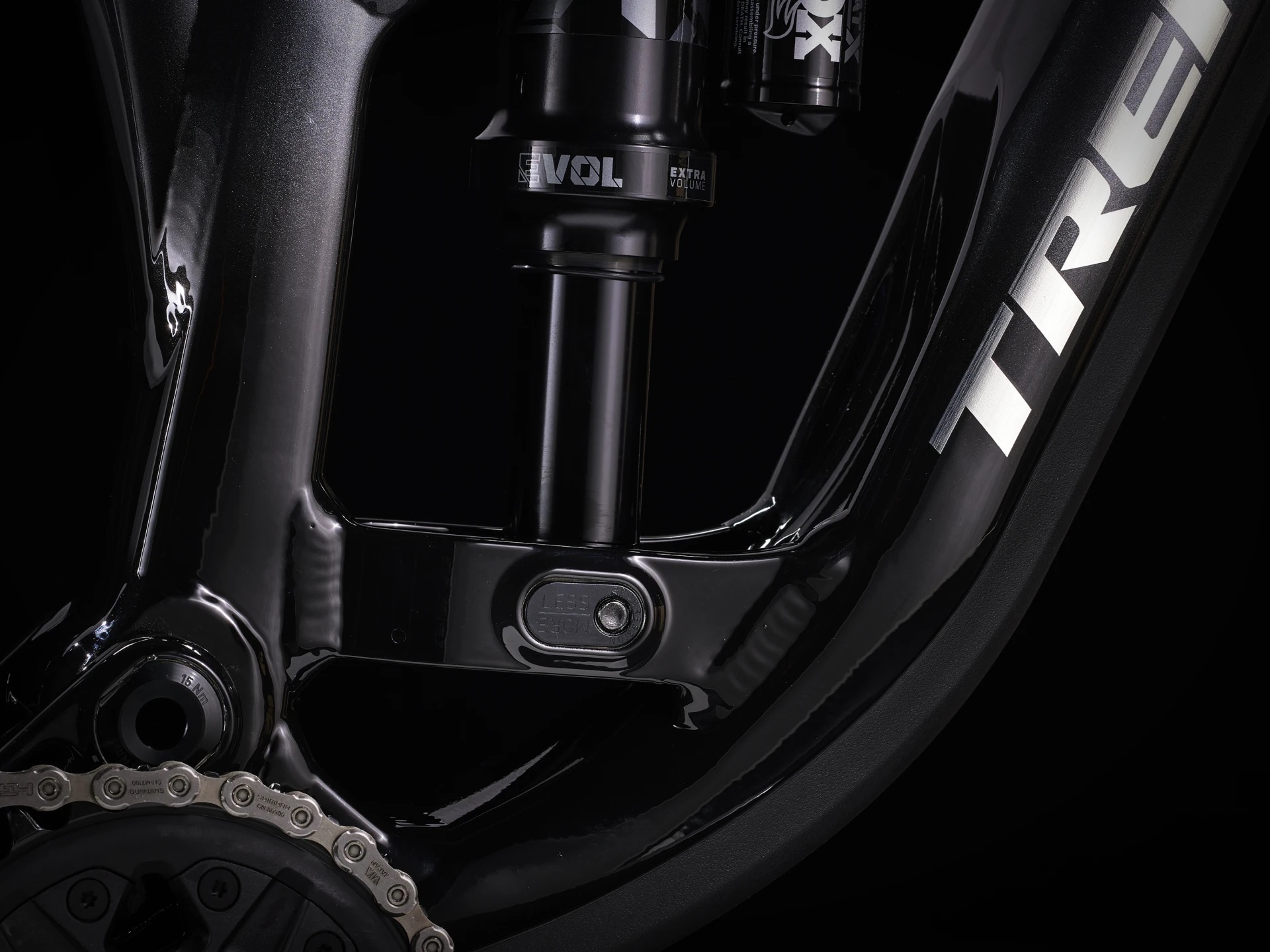

| Shock | Fox Performance Float X, 2-position damper, 185mm x 55mm |
| Max compatible fork travel | 160mm |
| *Wheel front | Size: XS , S Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 27.5'' |
|---|---|
| Size: S , M , ML , L , XL , XXL Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29'' |
|
| *Wheel rear | Size: XS , S Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 54, 6-bolt, Boost148, 12mm thru axle, 27.5'' |
| Size: S , M , ML , L , XL , XXL Bontrager Line Comp 30, High Strength 6000 Series Aluminum rim, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle, 29'' |
|
| Skewer rear | Bontrager Switch thru axle, removable lever |
| *Tire | Size: XS , S Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 27.5x2.50" |
| Size: S , M , ML , L , XL , XXL Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50'' |
|
| Tire part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tire size | Frame: 29x2.50" (XS & S: 27.5x2.50"), Fork: See manufacturer |
| Shifter | Shimano XT M8100, 12 speed |
|---|---|

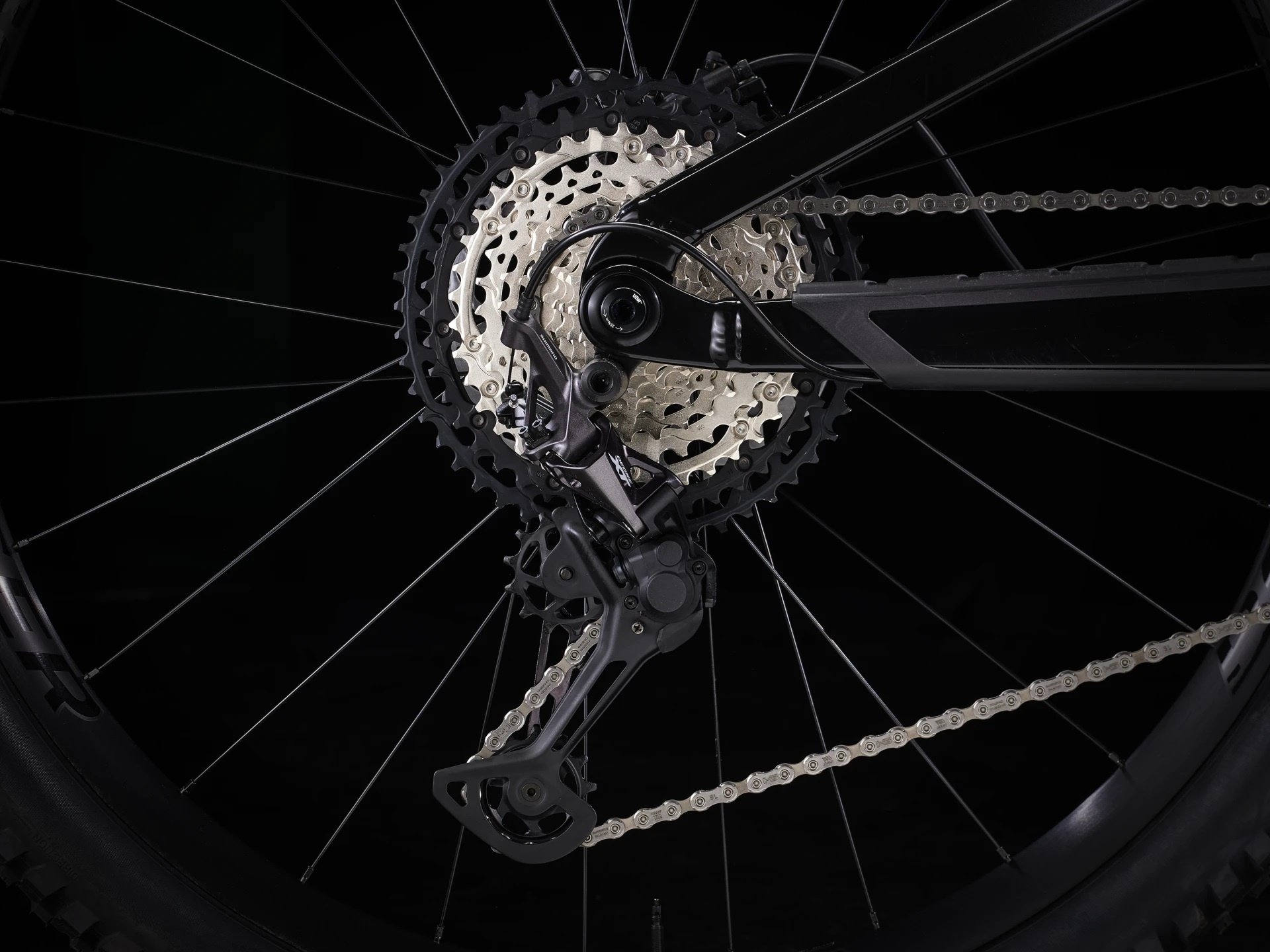

| Rear derailleur | Shimano XT M8100, long cage |
| Crank | Shimano Deore M6120, 30T ring, 55 mm chainline, 170 mm length |
| Bottom bracket | Shimano BB-MT501 BSA |
| Cassette | Shimano XT M8100, 10-51, 12 speed |
| Chain | Shimano SLX M7100, 12 speed |
| Max chainring size | 1x: 34T round, 32T oval, min 28T |
| Saddle | Bontrager Arvada, hollow chromoly rails, 138 mm width |
|---|---|
| *Seatpost | Size: XS , S TranzX JD-YSP39, 100 mm travel, internal routing, 34.9 mm |
| Size: M , ML TranzX JD-YSP39, 150 mm travel, internal routing, 34.9 mm |
|
| Size: L , XL , XXL TranzX JD-YSP39, 170 mm travel, internal routing, 34.9 mm |
|
| *Handlebar | Size: XS , S Bontrager Line, alloy, 35 mm, 27.5 mm rise, 750 mm width |
| Size: M , ML , L , XL , XXL Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width |
|
| Grips | Bontrager XR Trail Elite, nylon lock-on |
| *Stem | Size: XS , S Bontrager Elite, 35mm, 0 degree, 35mm length |
| Size: M , ML , L , XL , XXL Bontrager Elite, 35mm, 0 degree, 45mm length |
|

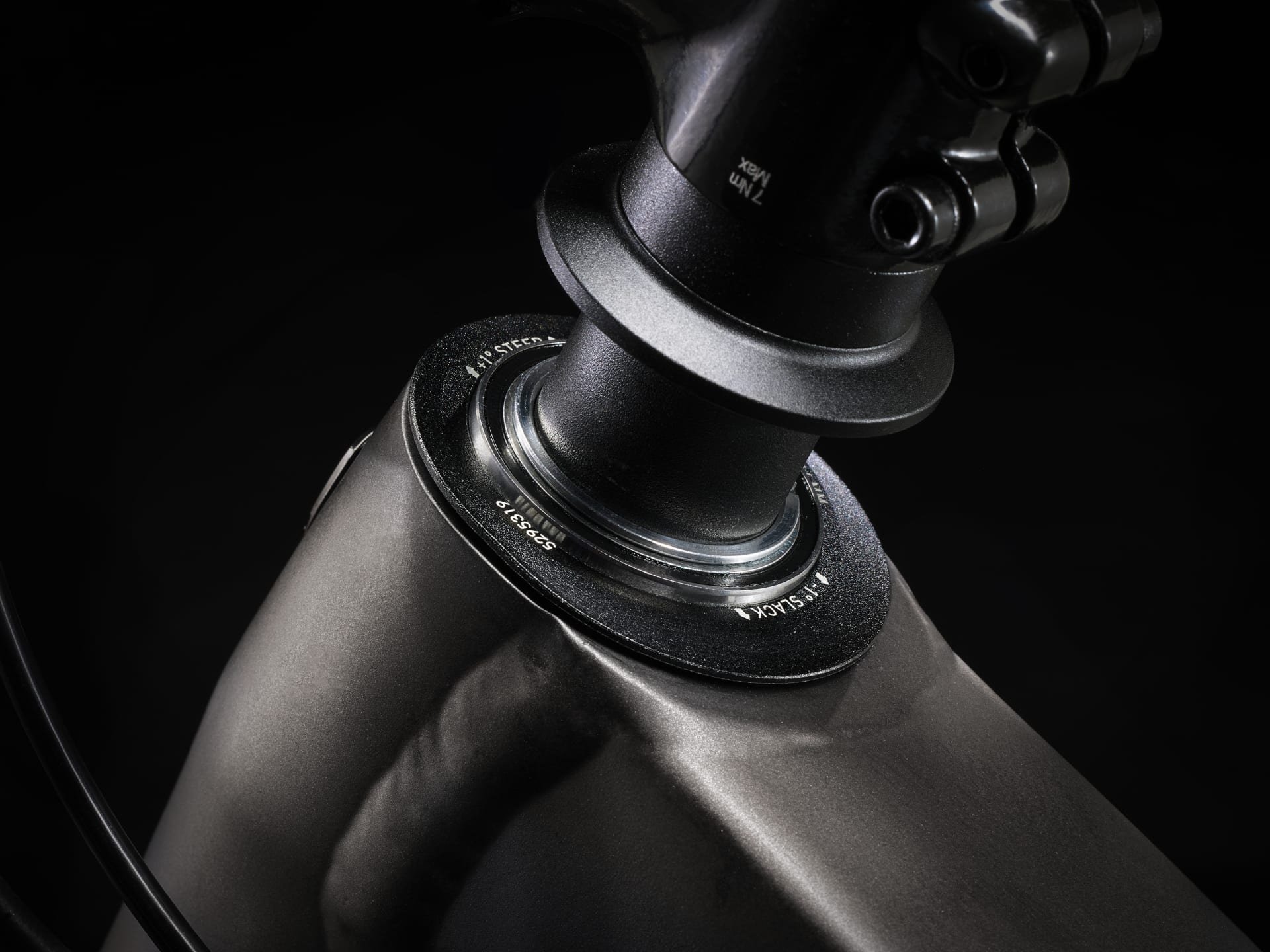

| Headset | Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible |

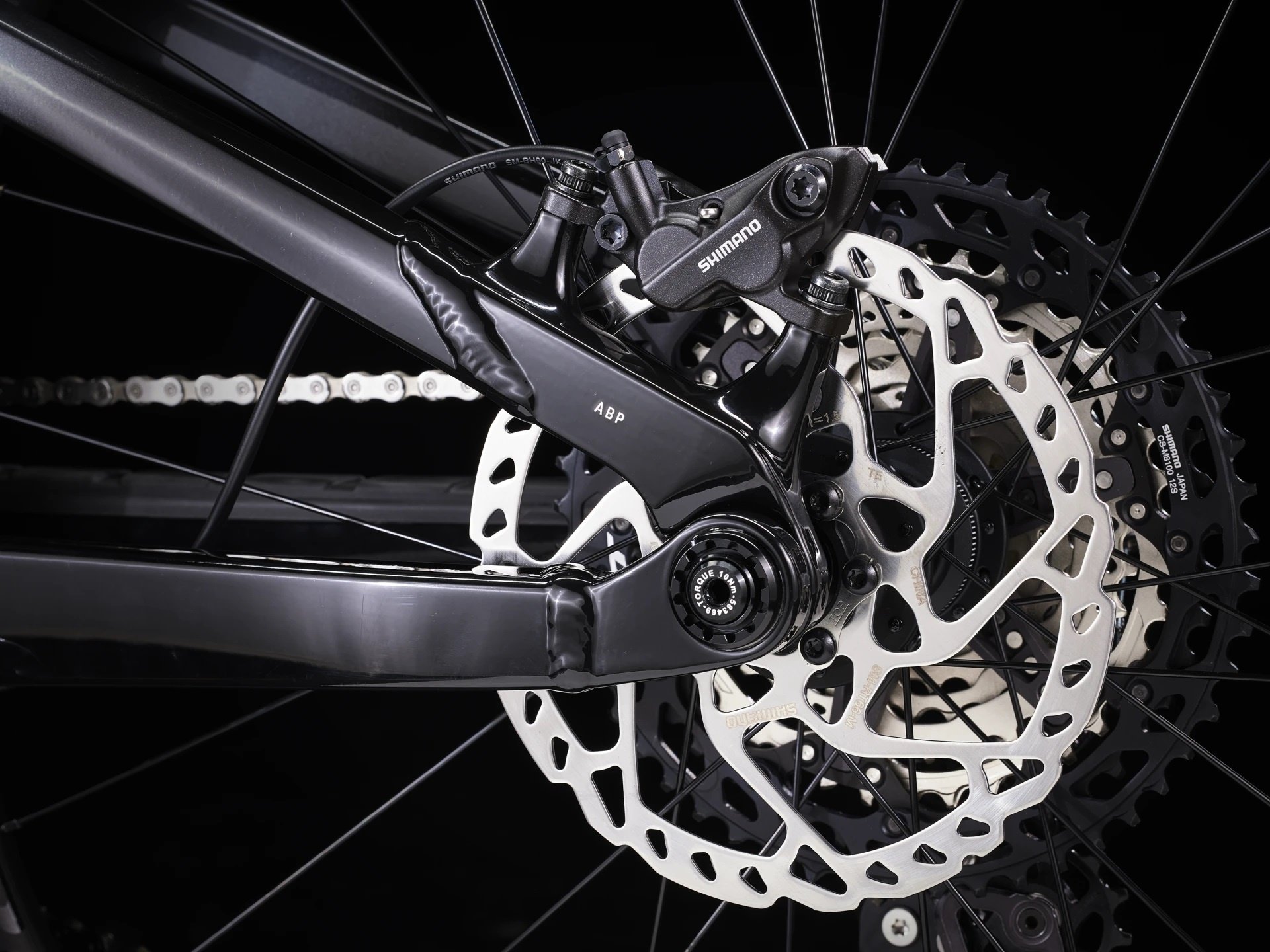

| Brake | Shimano M6120 4-piston hydraulic disc |
| *Brake rotor | Size: XS , S , M , ML , L , XL , XXL Shimano RT66, 6-bolt, 180mm |
| Size: XS , S , M , ML , L , XL , XXL Shimano RT66, 6-bolt, 203mm |
|
| Rotor size | Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer |

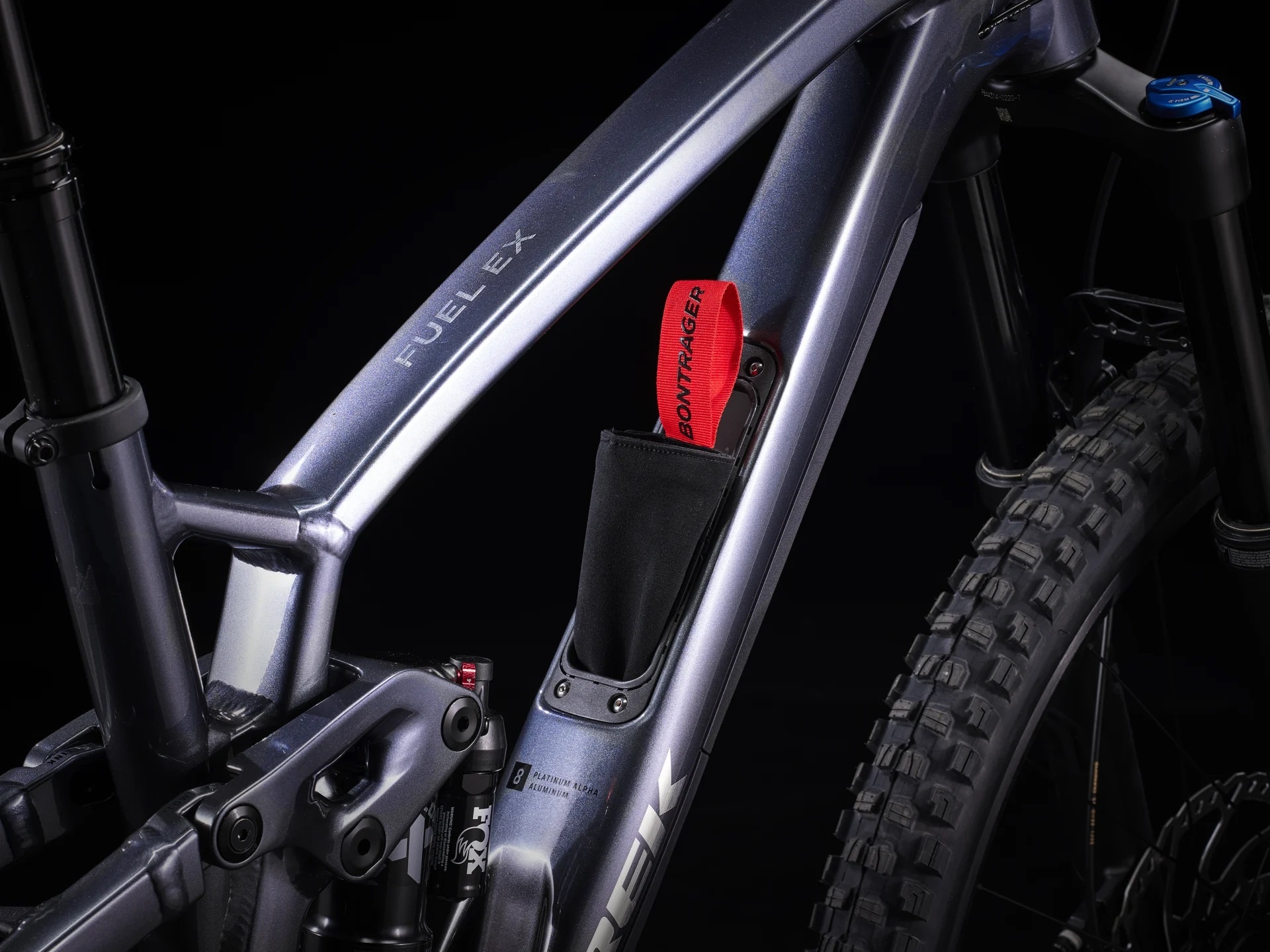

| Bag | Bontrager BITS Internal Frame Storage Bag |
|---|
| Weight | M - 15.65 kg / 34.51 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
