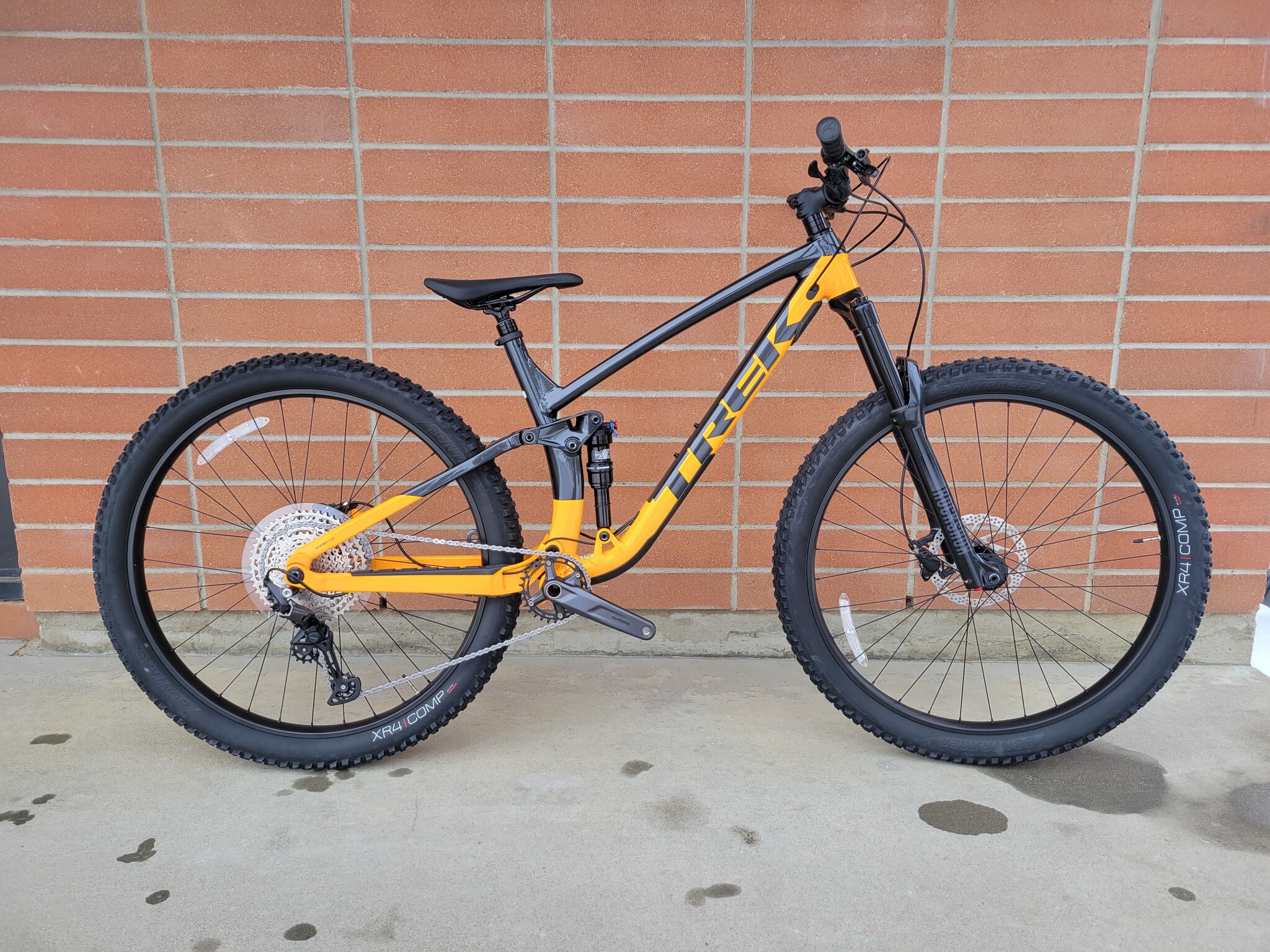

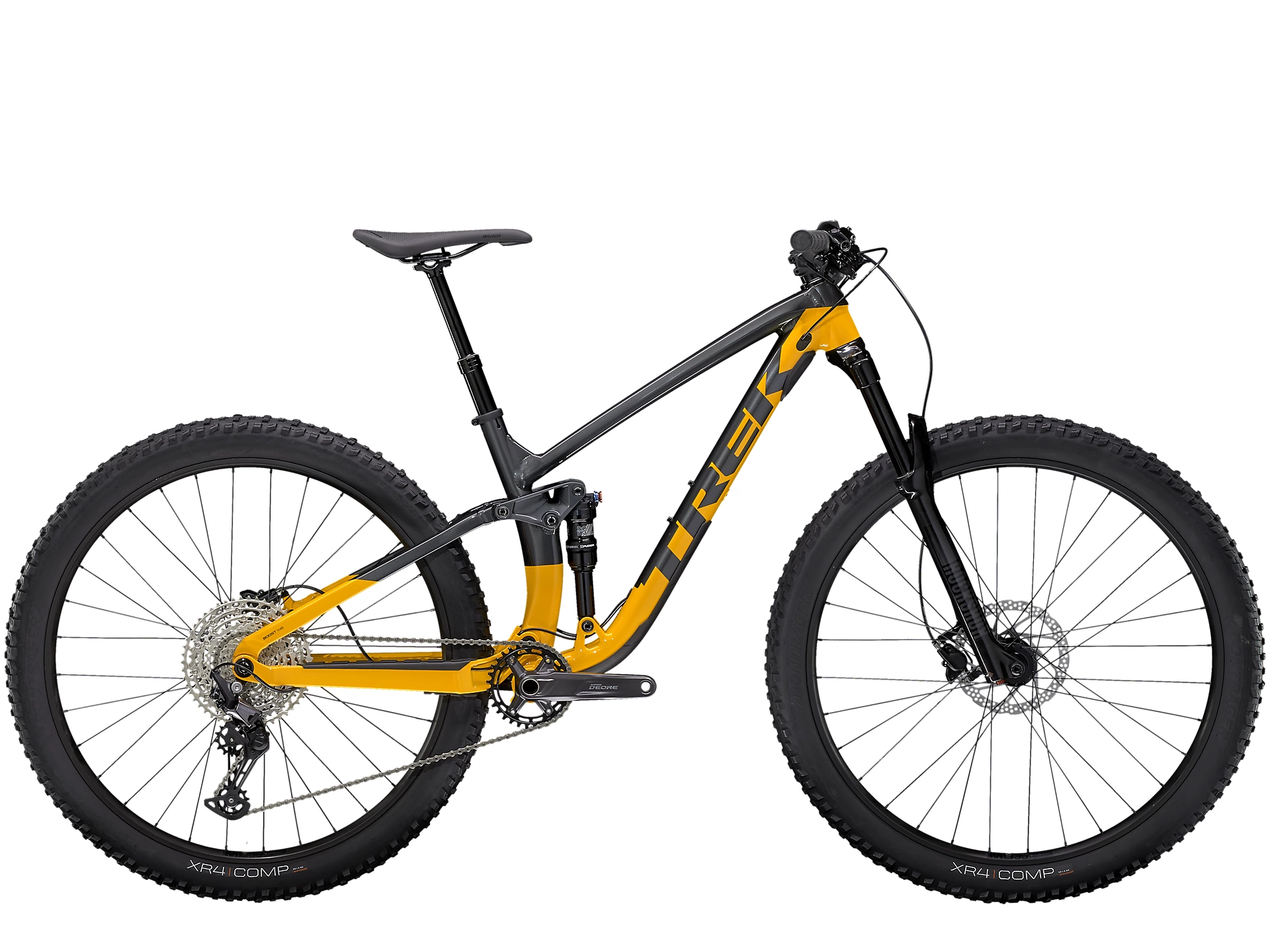

Trek Fuel EX 5 Gen 5 Deore Lithium Grey/Marigold
Fuel EX 5 is the gateway to full suspension trail bikes. Trail-taming front and rear suspension, a Shimano 1x12 drivetrain, a dropper post for getting low on descents, and hydraulic disc brakes make Fuel EX 5 a high-value, high-performance mountain bike w
- More information? Contact us about this product
- Add to comparison list
Fuel EX 5 is a full-suspension trail bike that's ready to handle it all. With trail-taming 140mm front and 130mm rear suspension, a Shimano 1x12 drivetrain, a dropper post for getting low on descents, and hydraulic disc brakes, the Fuel EX 5 hits the mark as a high-value, high-performance mountain bike with exceptional versatility.
It's right for you if...
You're ready to go full suspension, and you want a versatile trail bike at a great value. You want a ride that's sure-footed, capable, and responsive so you can stay in control no matter where you're riding.
The tech you get

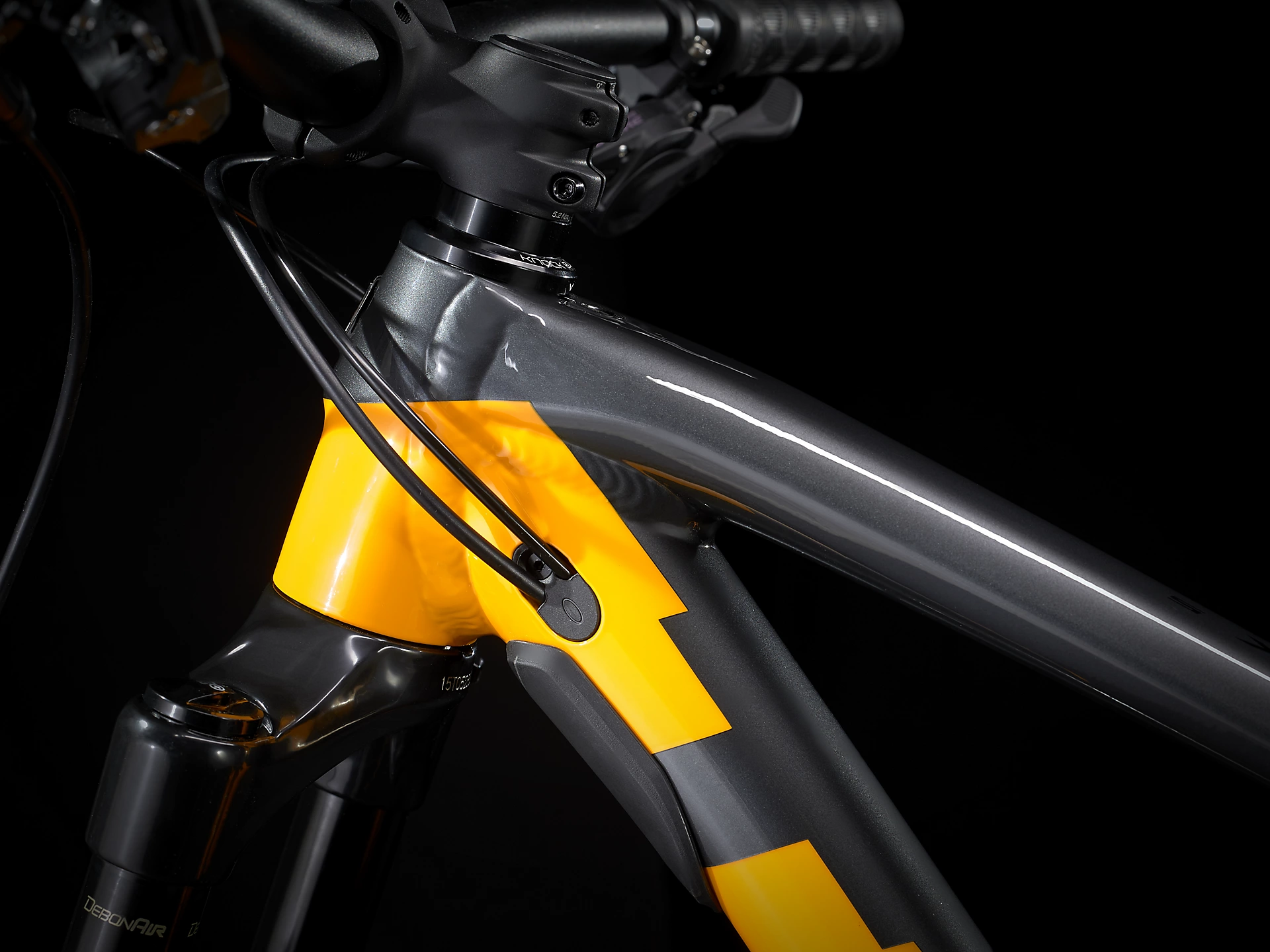

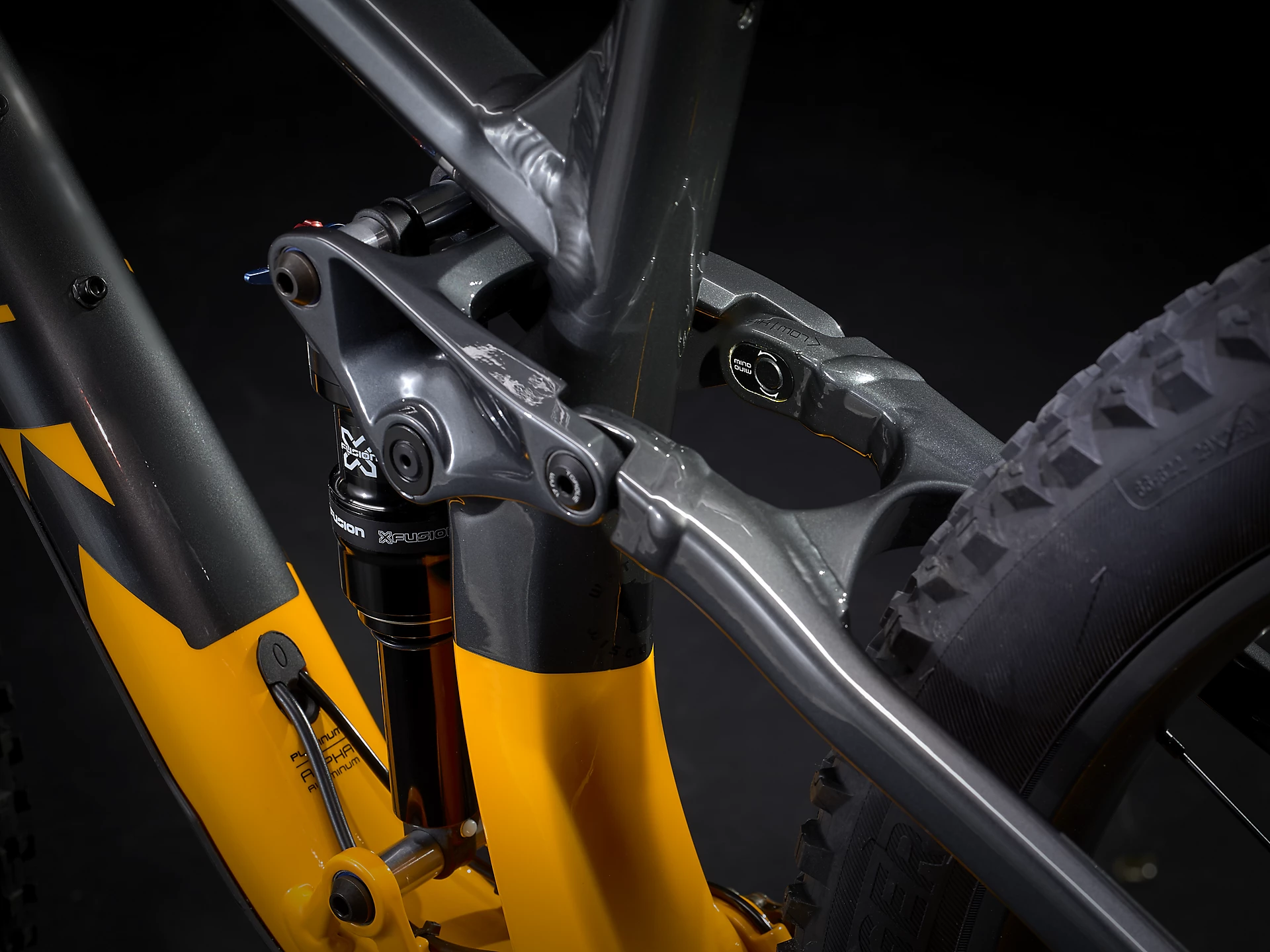

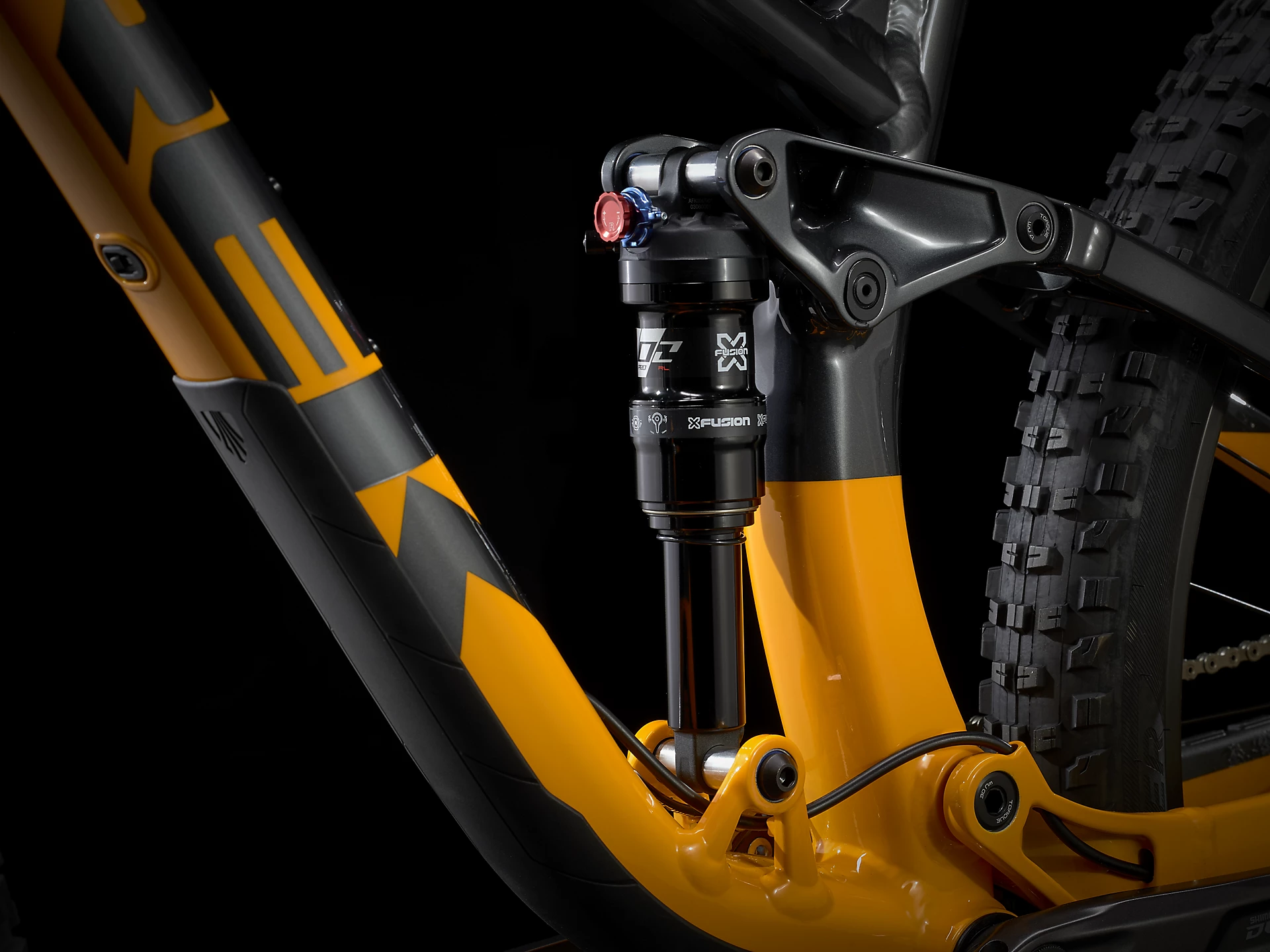

A lightweight aluminum frame with a Knock Block steerer stop to protect against spinning bars. A 140mm RockShox Recon Silver fork, 130mm of rear travel with an X-Fusion Pro 2 shock, a durable 12-speed Shimano Deore drivetrain, dropper post, and hydraulic disc brakes.
The final word
You get full suspension performance without the sticker shock. Fuel EX 5 has the same frame technology as our higher-end alloy Fuel EX models with parts chosen to keep the price tag low and stoke level high.
Why you'll love it
- You get a high-end ride at an exceptional value with frame features like Boost148 and ABP that give you confident handling and room to upgrade parts as your skills grow
- It has the capability of far more expensive trail bikes: it shreds singletrack and can even handle the occasional XC or enduro race
- The dropper post lets you lower your saddle on the fly so it's out of the way on descents
- The RockShox fork's DebonAir spring can easily be adjusted for a specific rider weight, and it's lighter than a coil spring

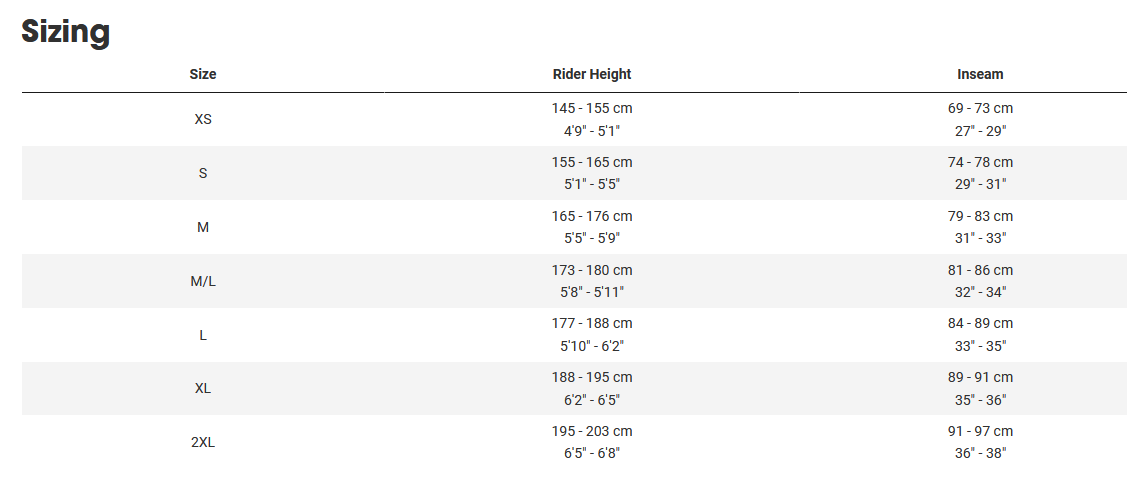

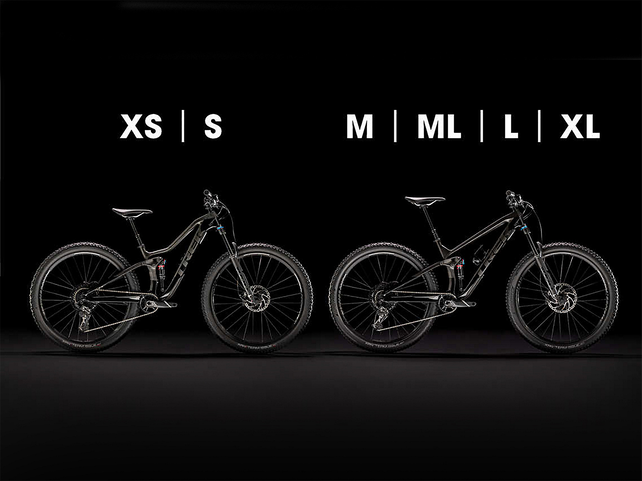

- We expanded our size range to ensure a better fit for all riders. And, you get the fastest wheel that fits your frame: XS frames get 27.5˝ wheels, S frames get to choose between 27.5˝ or 29˝, and sizes M to XL get 29˝ wheels
BCI Tip: Marigold orange appears a deep orange in person than online
Specifications
*spec applies to all sizes unless otherwise noted
|
Frame |

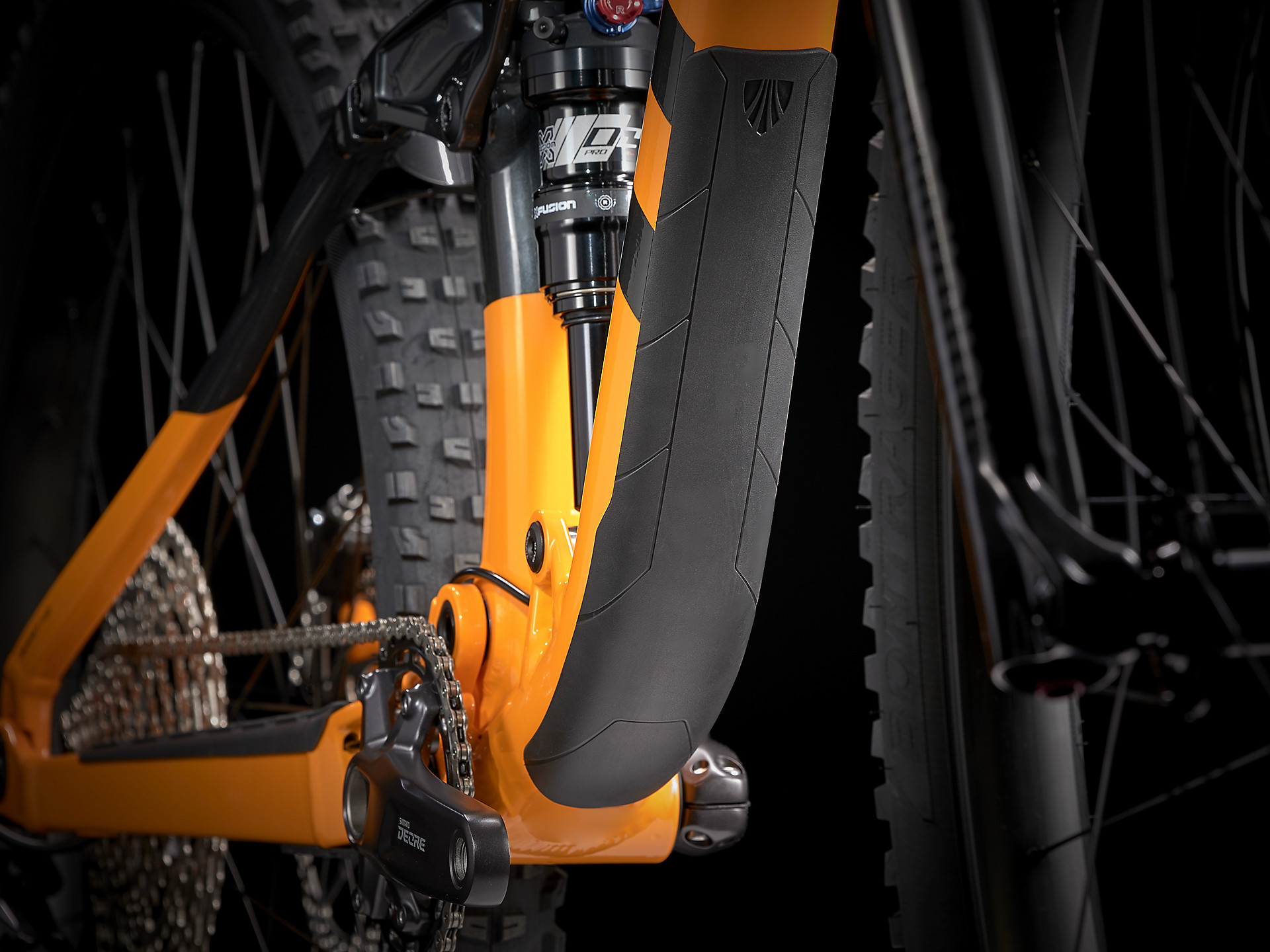

Alpha Platinum Aluminium, tapered head tube, Knock Block, Control Freak internal routing, downtube guard, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130 mm travel |
|---|---|
|
*Fork |
Size: XS , S |
|
Size: S , M , ML , L , XL |
|
| *Shock |
Size: XS , S |
|
Size: XS , S |
|
|
Size: S , M , ML , L , XL |
|
|
Size: S , M , ML , L , XL |
|
| Max compatible fork travel |
150mm (561mm axle-to-crown) |
| *Wheel rear |
Size: XS , S |
|---|---|
|
Size: S , M , ML , L , XL |
|
|
Hub front |
Bontrager alloy, 6-bolt, Boost110, 15 mm thru-axle |
| *Hub rear |
Size: XS , S , M , ML , L , XL |
|
Size: XS , S , M , ML , L , XL |
|
|
Skewer rear |
Bontrager Switch thru-axle, removable lever |
|
Rim |
Alex MD35, tubeless compatible, 32-hole, 35mm width, presta valve |
|
Spokes |
14 g stainless steel |

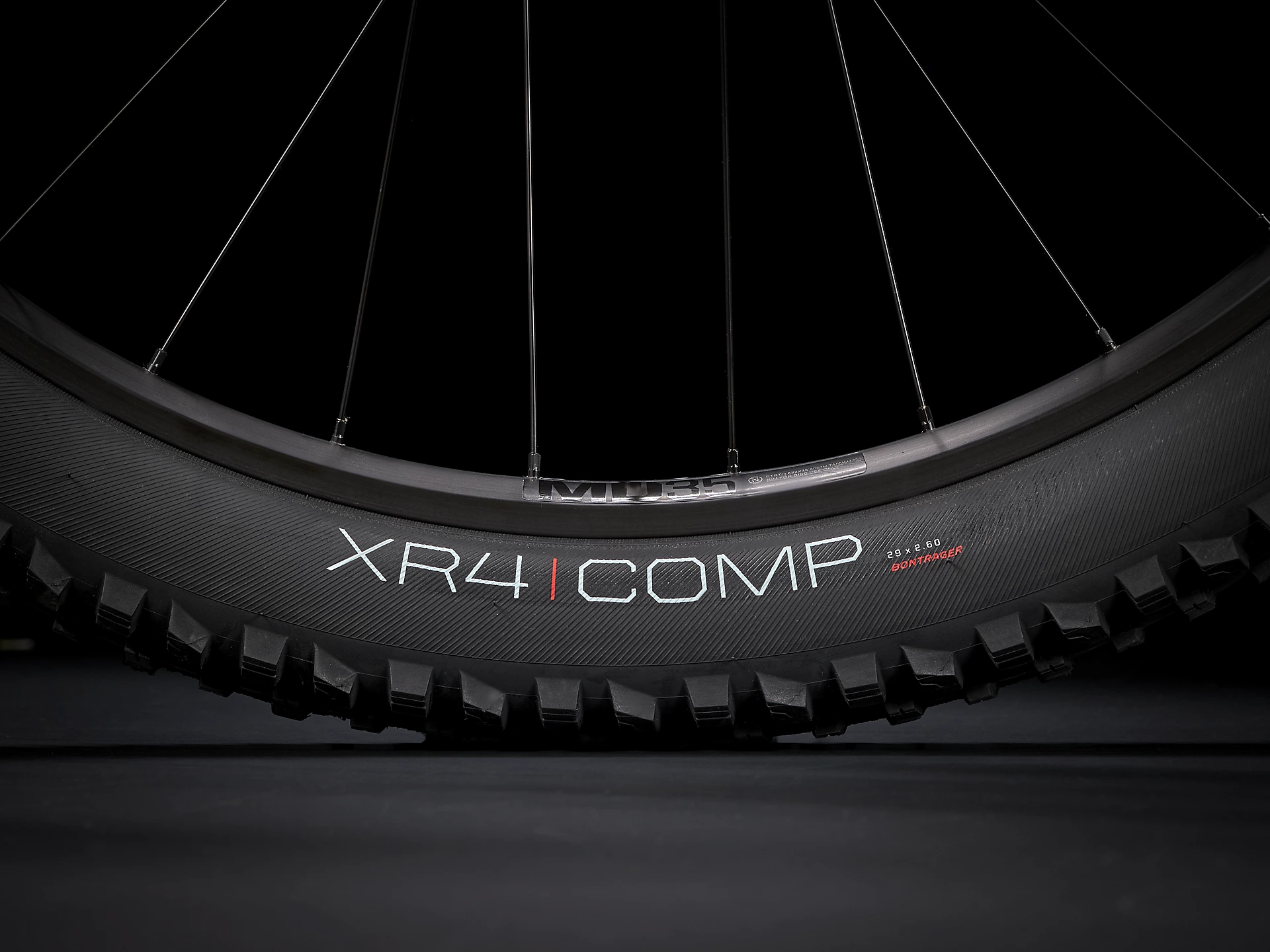

| *Tire |
Size: XS , S |
|
Size: S , M , ML , L , XL |
|
|
Rim strip |
Bontrager TLR |
|
Max tire size |
Frame: 29x2.60" Fork: See manufacturer |
|
Shifter |
Shimano Deore M6100, 12-speed |
|---|---|
|

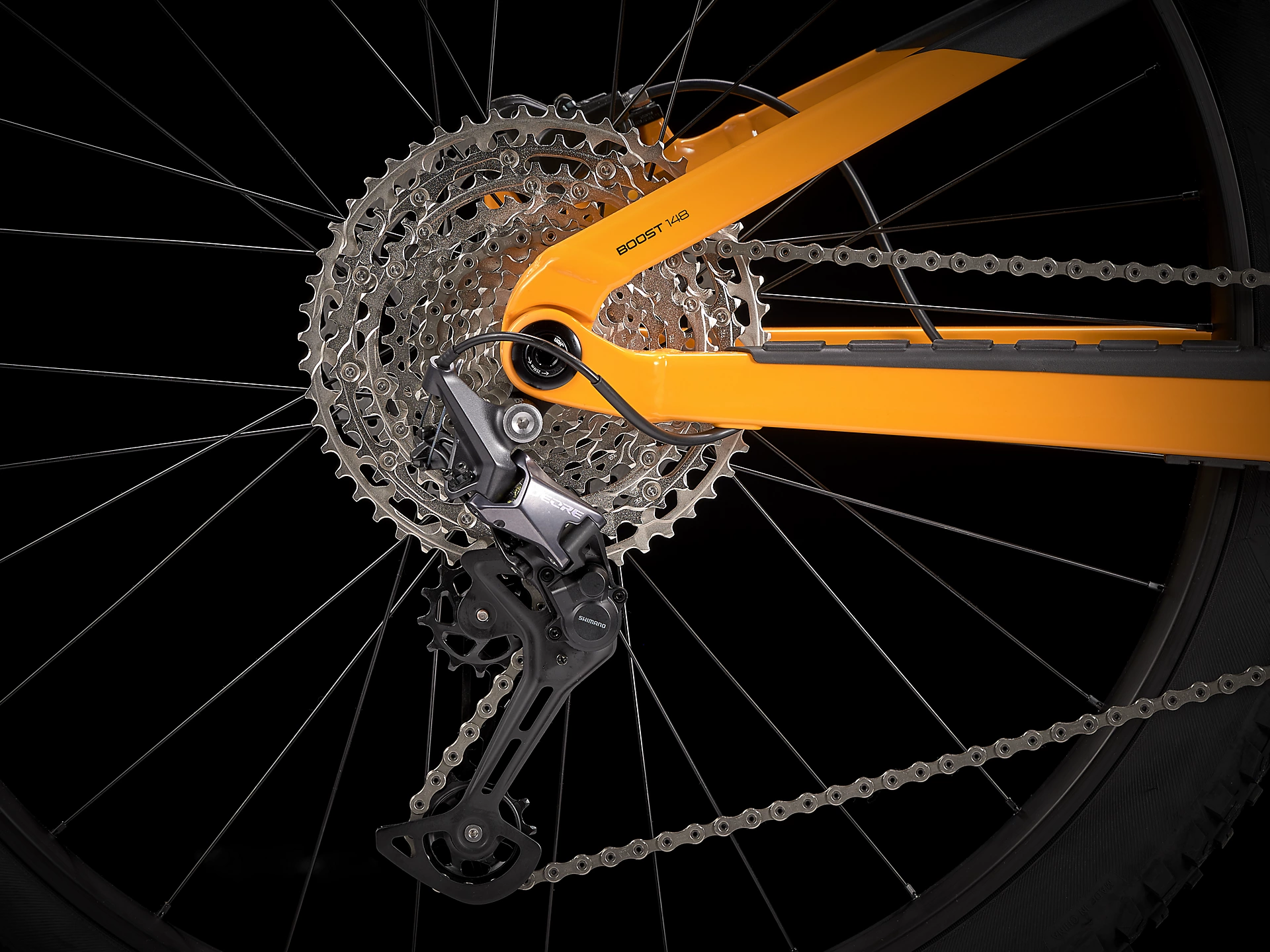

Rear derailleur |
Shimano Deore M6100, long cage |

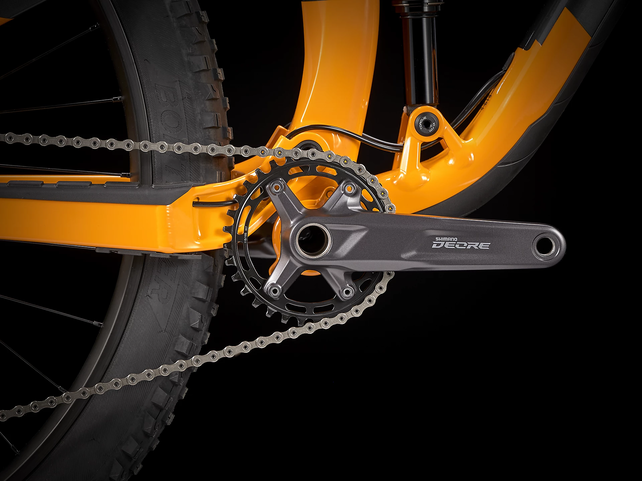

| *Crank |
Size: XS , S , M , ML , L |
|
Size: M , ML , L , XL |
|
|
Bottom bracket |
Shimano MT500, 92 mm, PressFit |
|
Cassette |
Shimano Deore M6100, 10-51, 12 speed |
|
Chain |
Shimano Deore M6100, 12-speed |
|
Max chainring size |
34T |
|

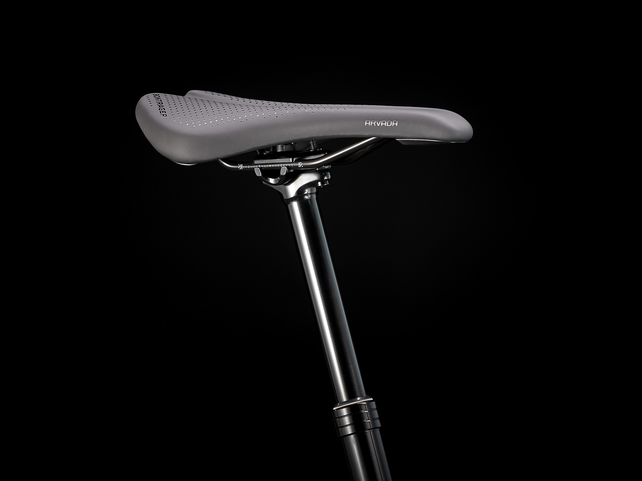

Saddle |
Bontrager Arvada, steel rails, 138 mm width |
|---|---|
| *Seatpost |
Size: XS , S |
|
Size: M , ML , L , XL |
|
|
Handlebar |
Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
|
Grips |
Bontrager XR Trail Comp, nylon lock-on |
|
Stem |
Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length |
|
Headset |
Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom |
|

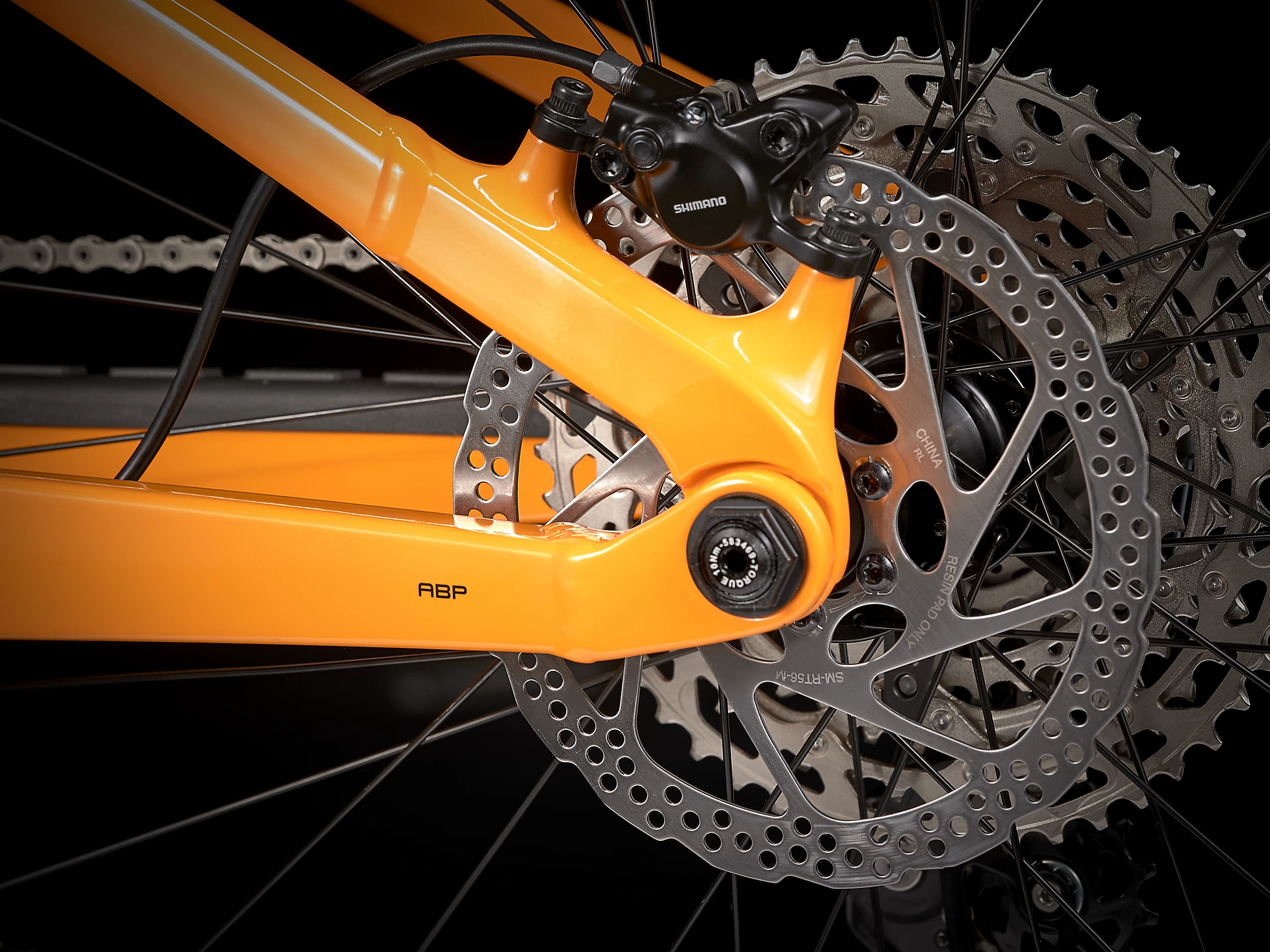

Brake |
Shimano hydraulic disc, MT201 lever, MT200 calliper |
|
Brake rotor |
Shimano RT56, 6-bolt, 180 mm |
|
Weight |
M - 34.61 lbs / 15.7 kg |
|---|---|
|
Weight limit |
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
| Article code | 1045225 |
| EAN | 601842380390 |
