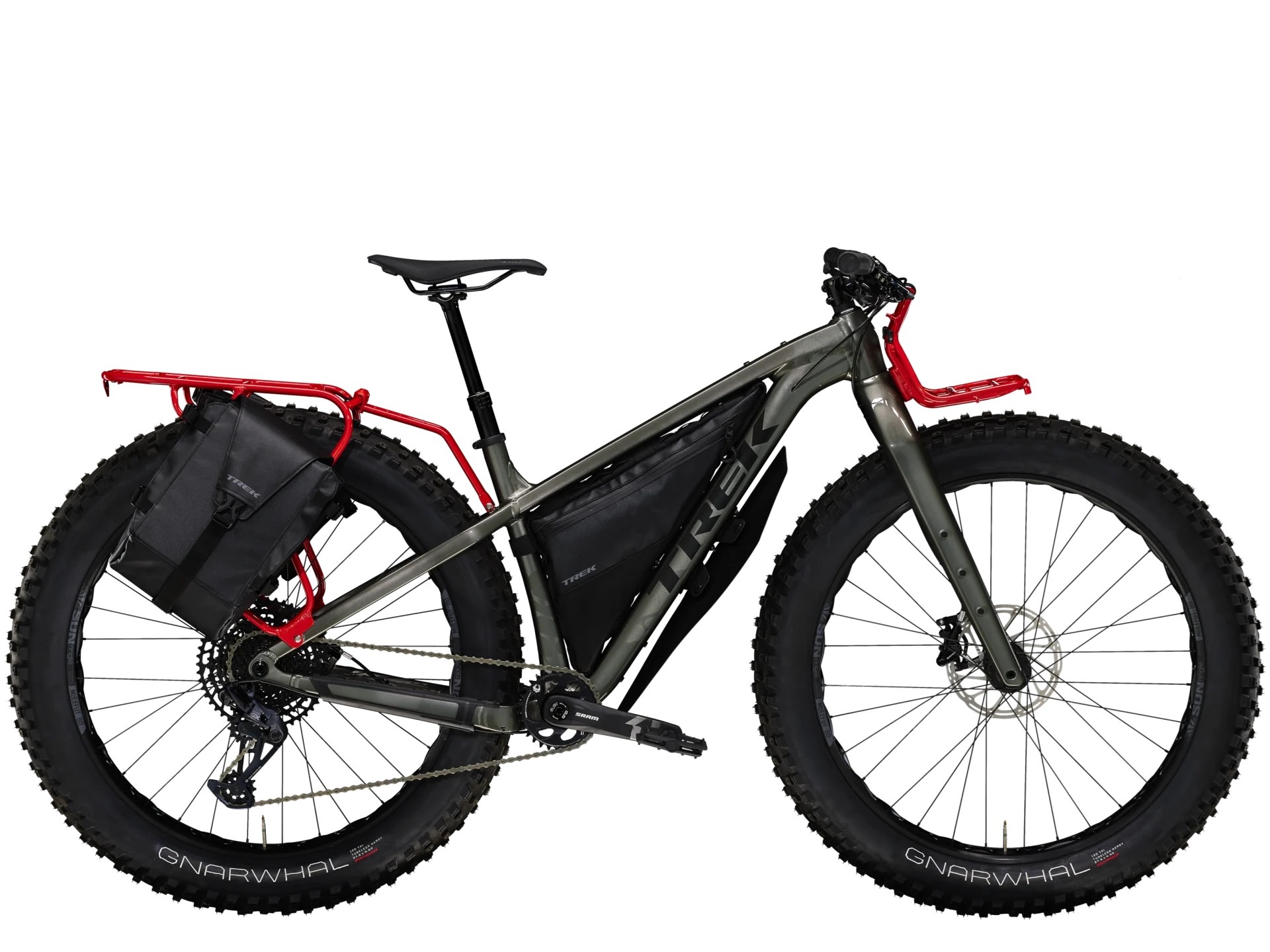

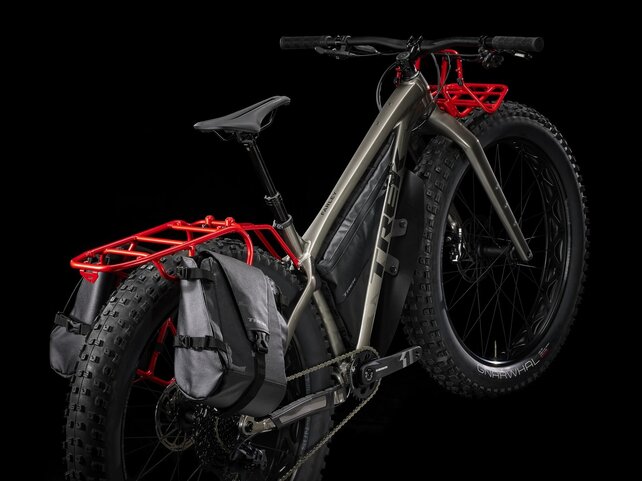

Trek Farley 9 - Mercury
- More information? Contact us about this product
- Add to comparison list
It's right for you if...
You dream of distant horizons and want the ultimate adventure bike for getting there. You don't want to limit your pursuits to fair weather days. You crave exploration every month of the year and need a plethora of racks and bags for loading up for extra-long adventures.
The tech you get

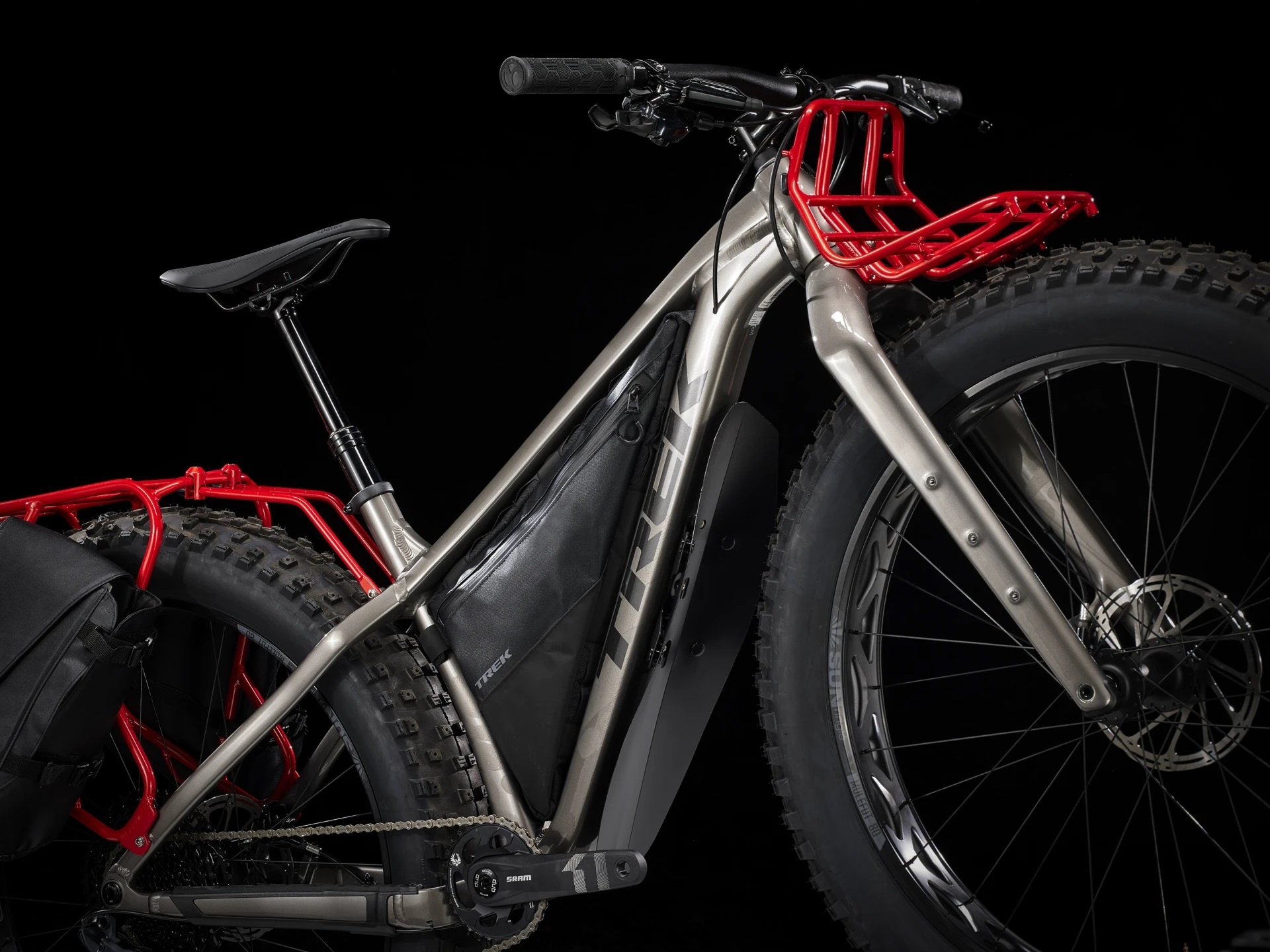

A rugged alloy frame with progressive trail geometry that's built to handle it all. Huge 4.5-inch tires that keep you floating over snow, sand, mud, and dirt. A carbon fork with a sleek design and plenty of mounts for loading up with racks and bags. An internally routed travel dropper post that lets you get behind the saddle on descents. A 12-speed SRAM GX Eagle drivetrain with a big cog for taking the sting out of steep climbs when your bike is fully loaded. Plus, all of the racks and bags your heart could desire for loading up and heading out on big trips.
The final word
If you crave riding far beyond the beaten path, where ridgelines are no longer dotted with power lines and bikepacking is the only way in and out — Farley 9 is right for you. It's fully equipped for your longest adventures, and built on a capable chassis that can handle rough trails, deep snow, and long miles.
Â
Why you'll love it
- It's a bike that's built for big adventures with custom accessories to make any adventure better
- It comes with a carbon fork that has lower leg mounts for gear cages, mounts for our custom front rack, and rubber bumpers to protect the dropouts when the front wheel is removed
- Its huge 4.5-inch tires will keep you floating over snow, sand, mud, and dirt

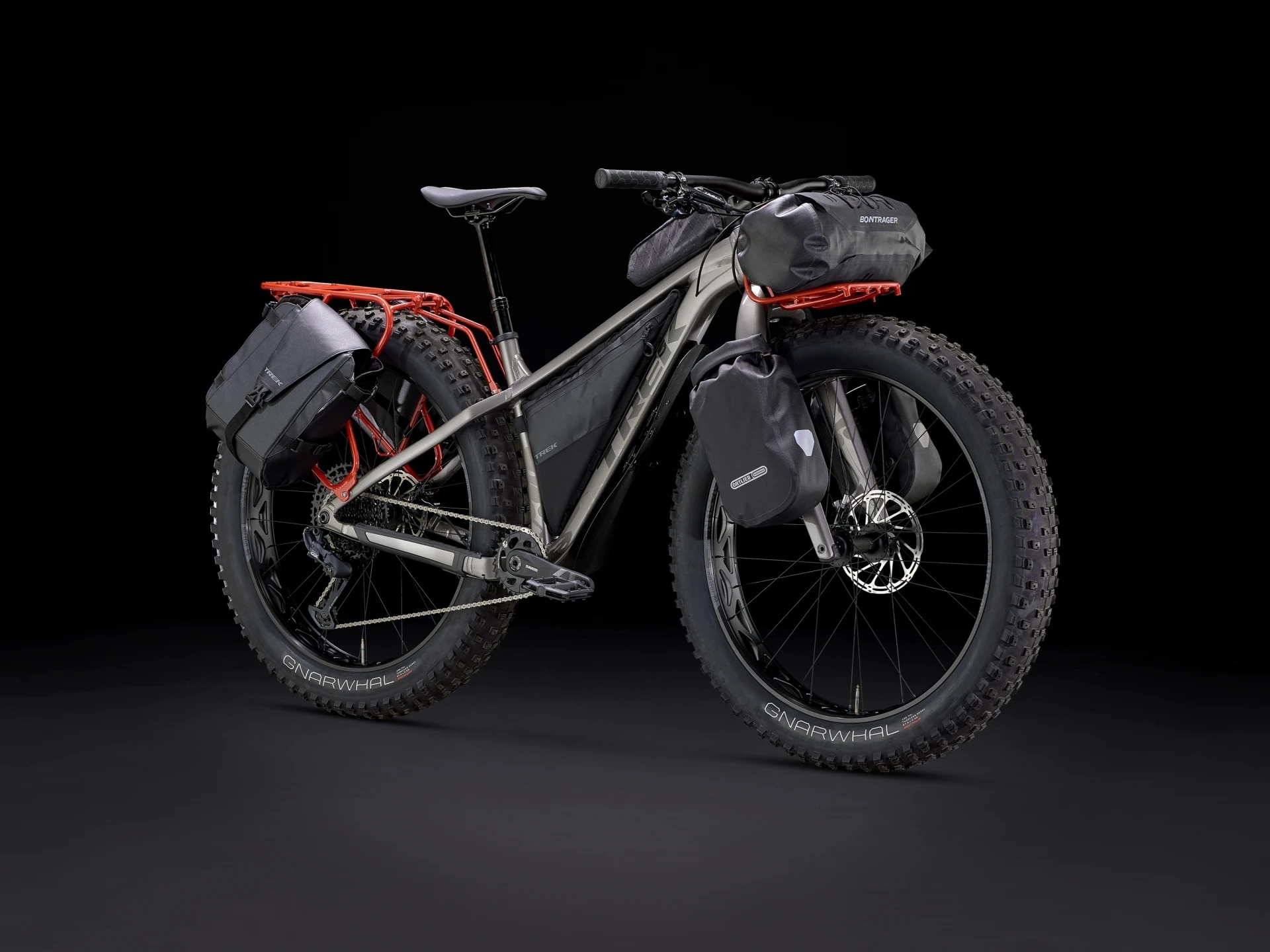

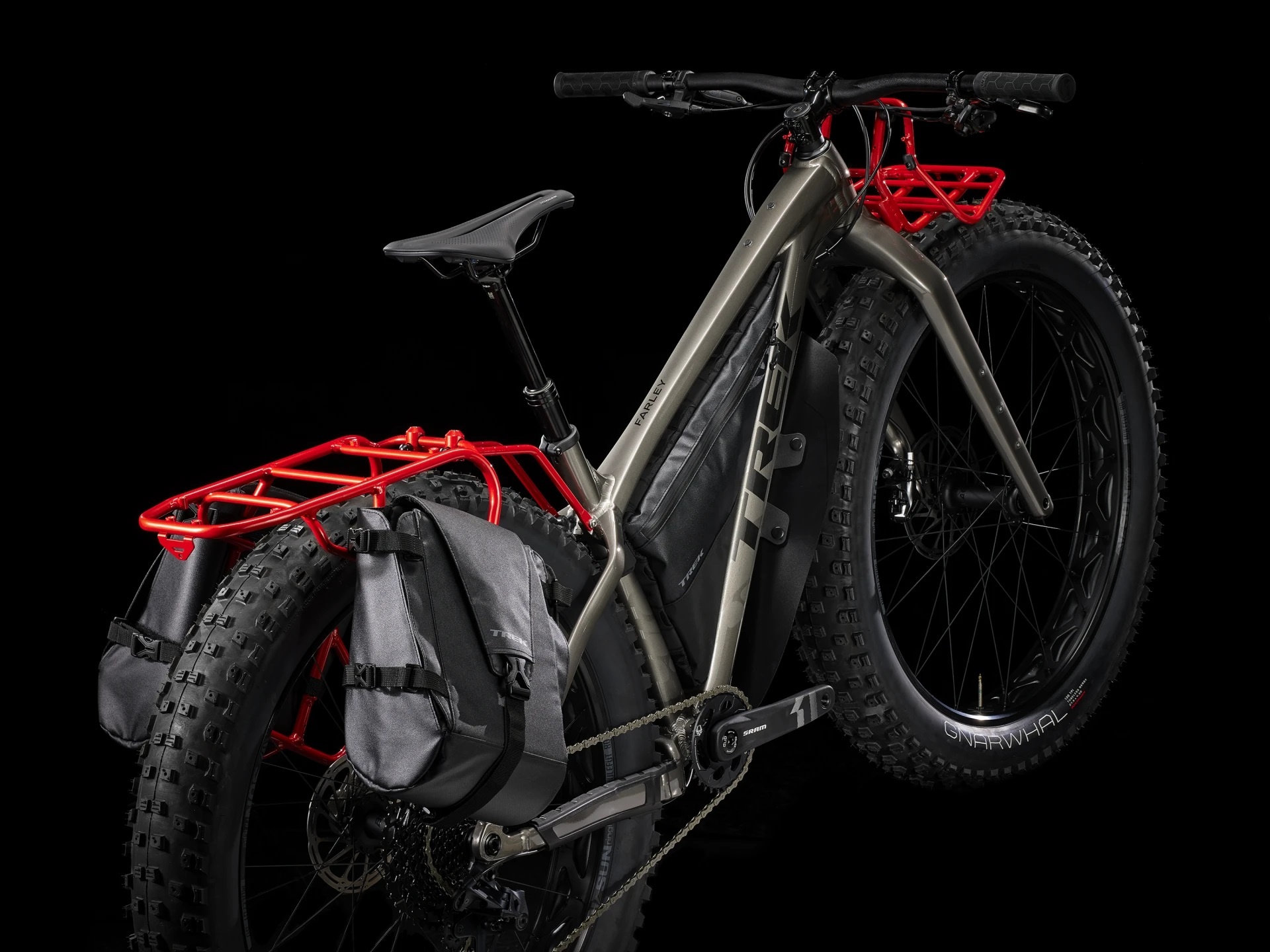

- You get plenty of racks and bags for loading up all of the essentials for the ultimate bikepacking adventure
- The internally routed dropper post lets you move around on the bike and get behind the saddle on steep descents
Â
Â
Â

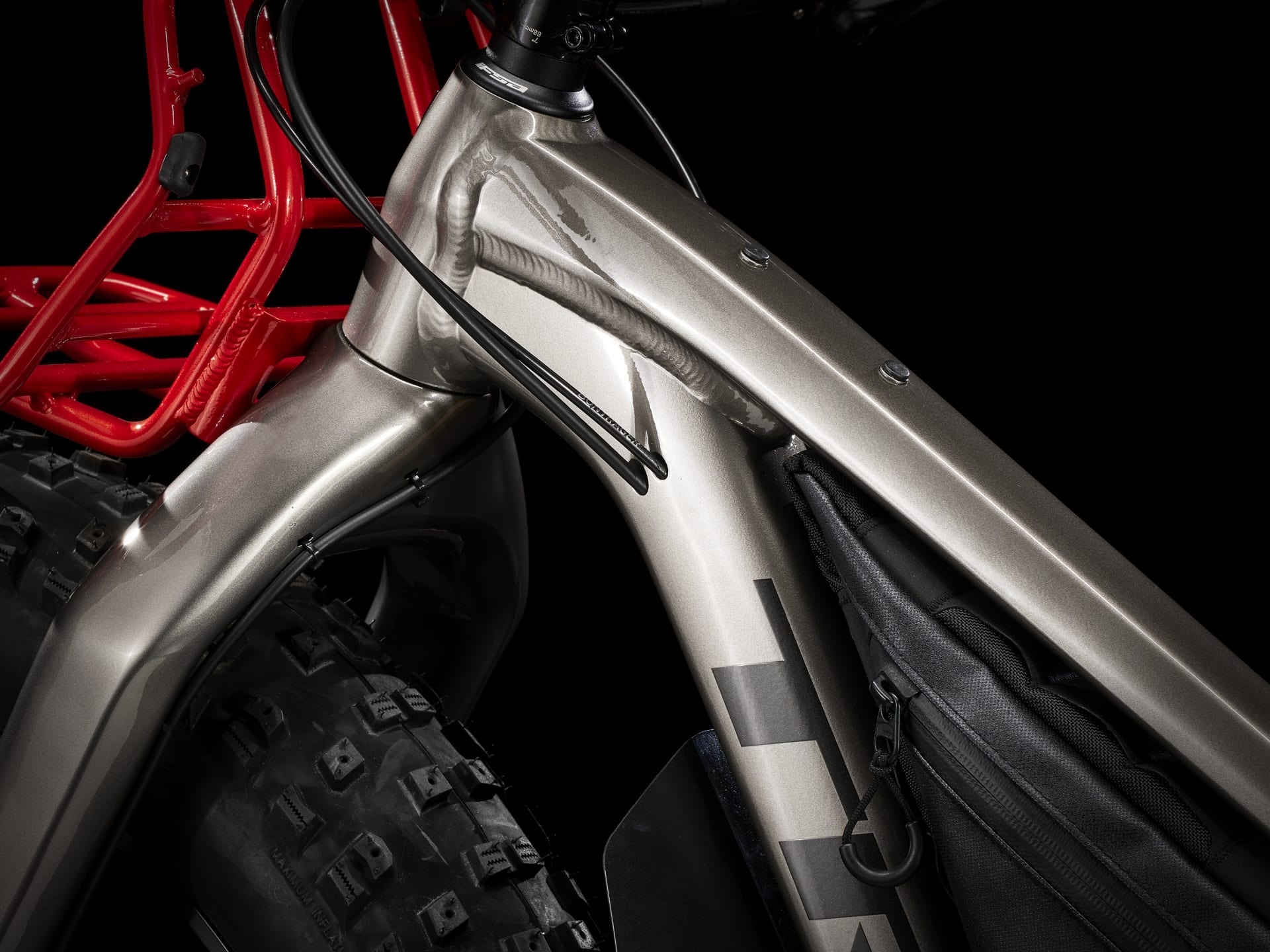

Frame | Alpha Platinum Aluminum, tapered head tube, top tube bag mounts, strapless full frame bag mounts, downtube fender mount, lower downtube accessory mount, seat stay rear rack mounts, internal rear derailleur & dropper post routing, threaded BB, UDH, 197x12mm |
---|---|
Fork | Farley carbon, tapered alloy steerer, crown rack mounts, lower leg cage mounts, 150x15mm thru axle |
Max compatible fork travel | 80mm (492mm axle-to-crown) |
Hub front | Bontrager alloy, sealed bearing, 6-bolt, 15x150mm thru axle |
---|---|
Skewer front | Bontrager Switch thru axle, removable lever |
Hub rear | Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano 10 freehub, 197x12mm thru axle |
Skewer rear | Bontrager Switch thru axle, removable lever |
Rim | SUNRingle Mulefut 80 SL, 32-hole cutout |
Tire | Bontrager Gnarwhal Team Issue, Tubeless Ready, Inner Strength sidewalls, studdable, aramid bead, 120 tpi, 27.5x4.50'' |
Max tire size | 27.5x4.50" |
Shifter | SRAM GX Eagle, 12 speed |
---|---|

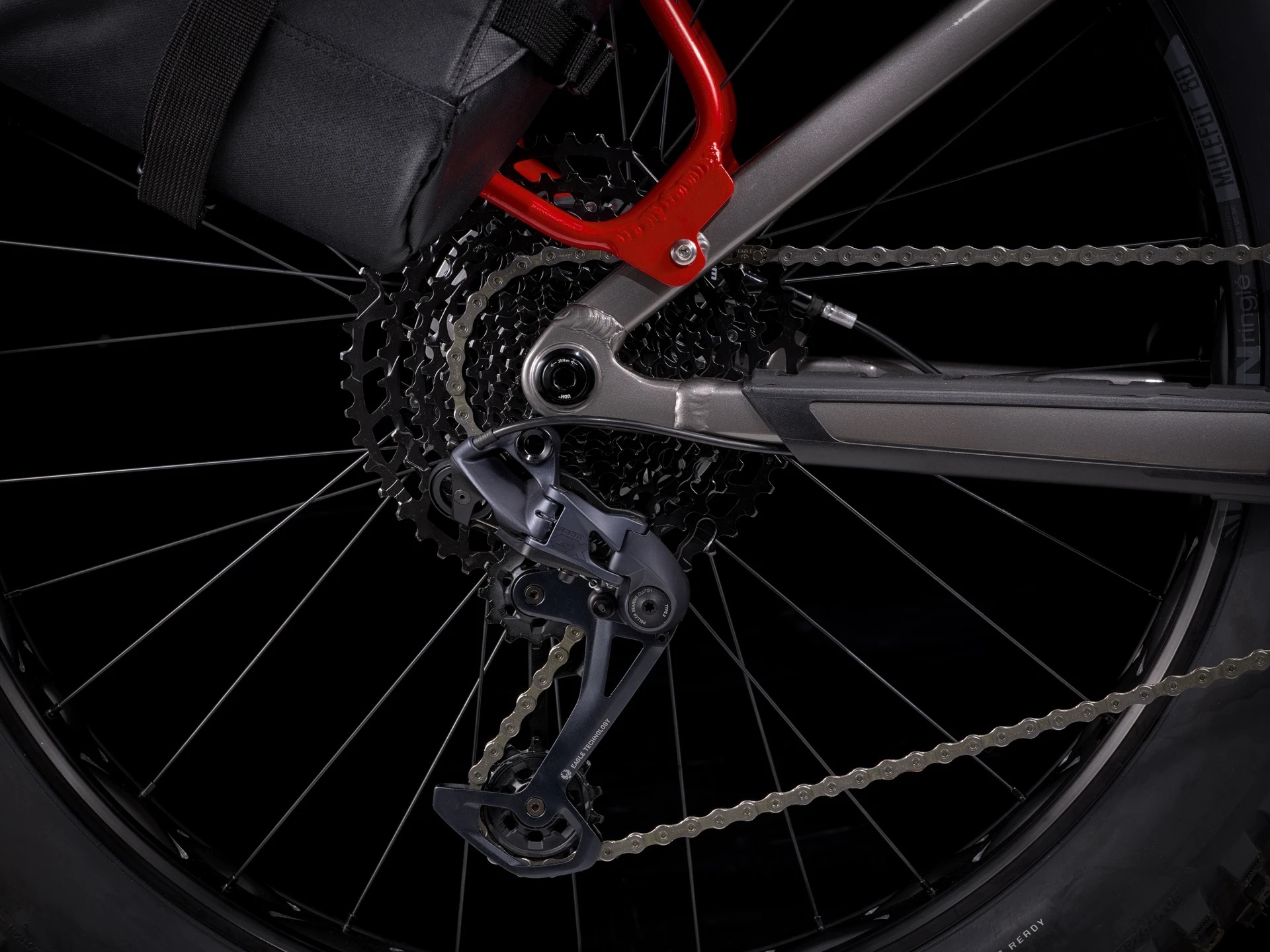

Rear derailleur | SRAM GX Eagle |

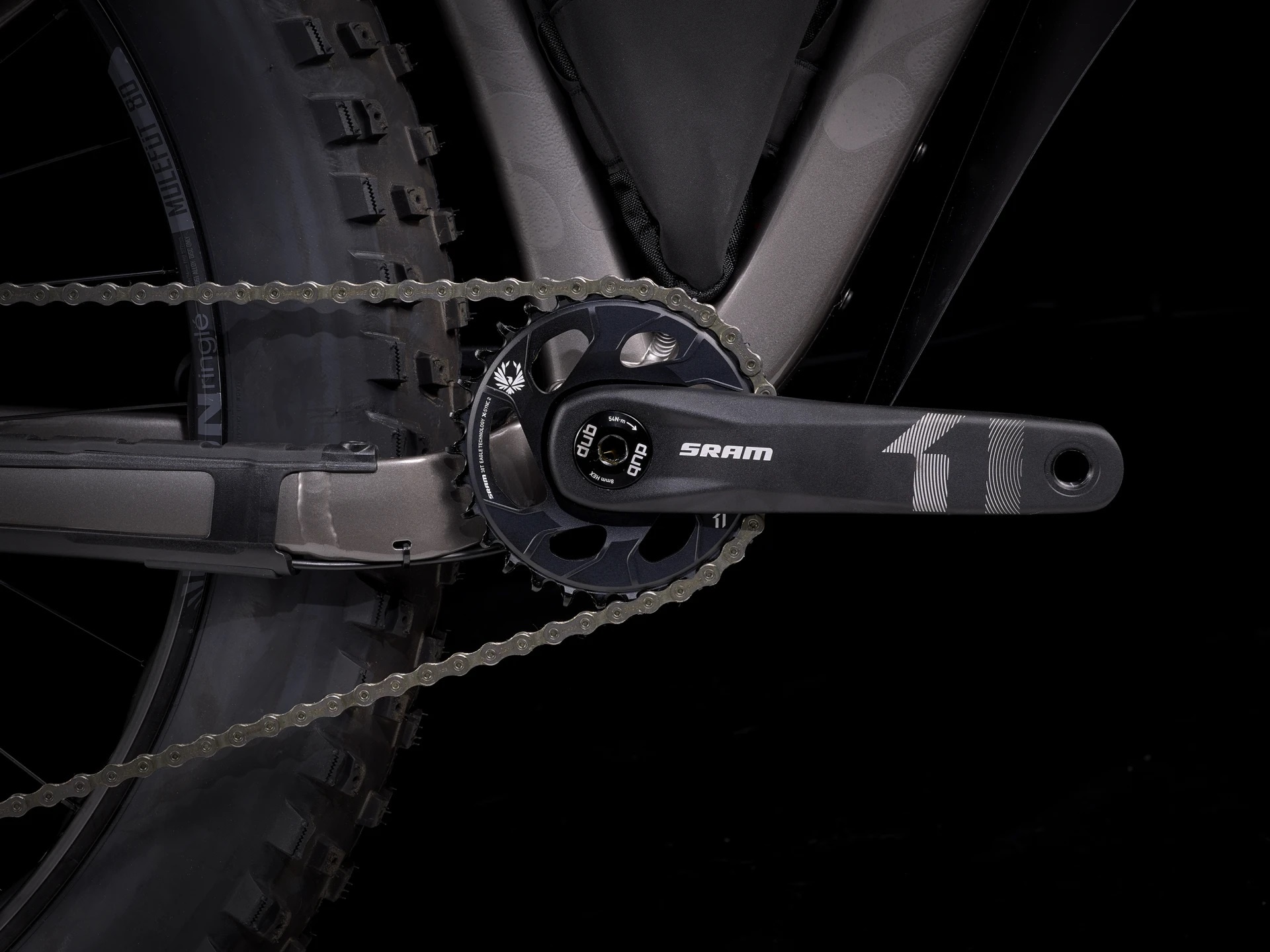

*Crank | Size:Â S, M, L SRAM X1 1000 Eagle, DUB, 30T alloy FAT 5 ring, 170mm length |
Size:Â XL SRAM X1 1000 Eagle, DUB, 30T alloy FAT 5 ring, 175mm length |
|
Bottom bracket | SRAM DUB, 100mm, BSA threaded |
Cassette | SRAM PG-1230 Eagle, 11-50, 12 speed |
Chain | SRAM NX Eagle, 12 speed |
Pedal | VP-536 nylon platform |
Max chainring size | 1x: 32T |
Saddle | Bontrager Verse Elite, austenite rails, 145mm width |
---|---|
*Seatpost | Size:Â S TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length |
Size:Â M TranzX JD-YSP18, 130mm travel, internal routing, 31.6mm, 425mm length |
|
Size:Â L, XL TranzX JD-YSP18, 150mm travel, internal routing, 31.6mm, 470mm length |
|

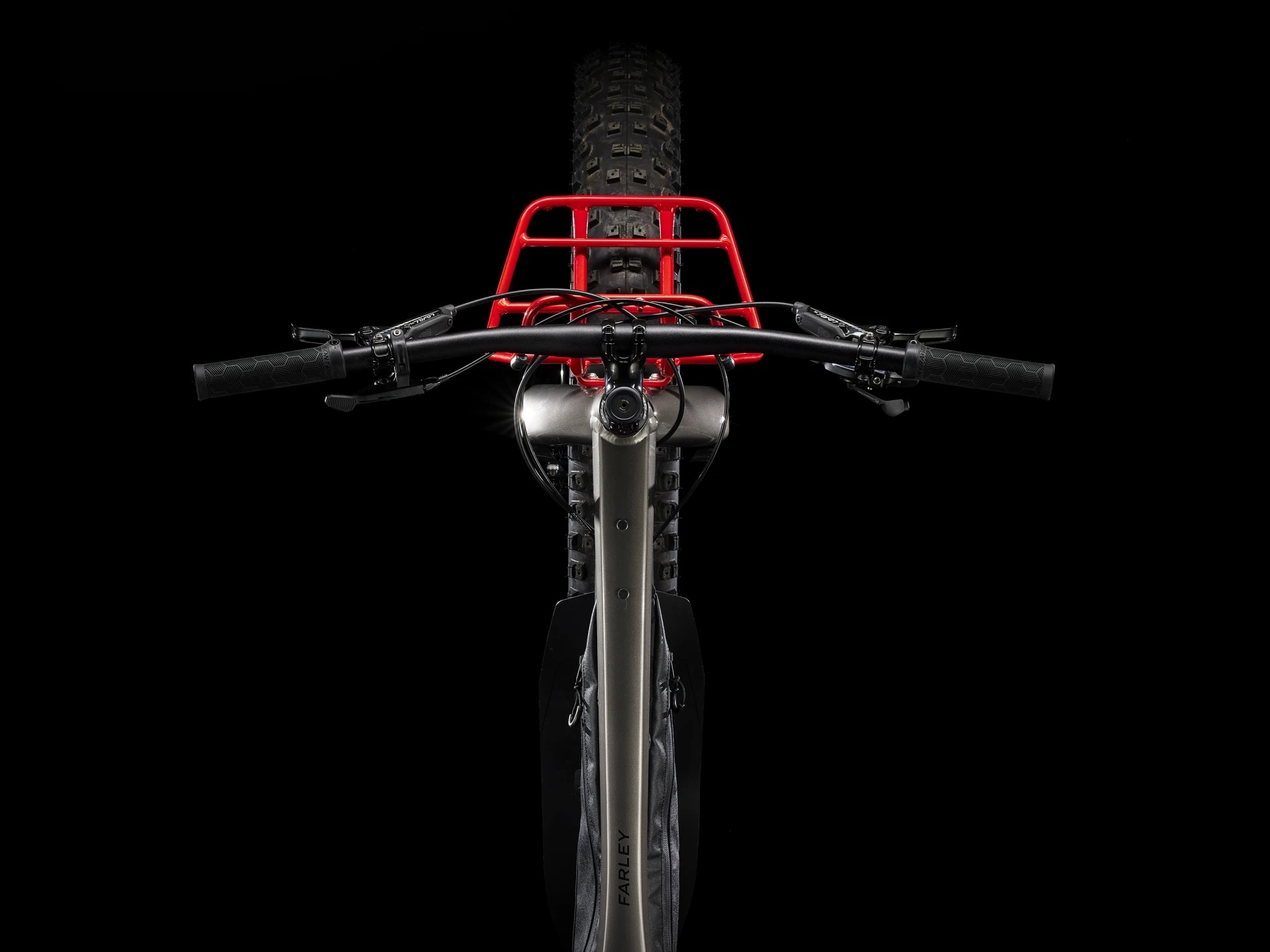

Handlebar | Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width |
Grips | Bontrager XR Trail Comp, nylon lock-on |
*Stem | Size:Â S Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length |
Size:Â M Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length |
|
Size:Â L, XL Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 70mm length |
|
Headset | FSA IS-2, 1-1/8" top, 1.5" bottom |
Brake | SRAM Level Bronze 4-piston hydraulic disc |
*Brake rotor | Size:Â S, M, L, XL SRAM CenterLine, 6-bolt, round edge, 160mm |
Size:Â S, M, L, XL SRAM CenterLine, 6-bolt, round edge, 180mm |
|
Rotor size | Max brake rotor sizes: 180mm front & rear |
*Bag | Size:Â S, M, L, XL Farley compression harness, up to 915 cu in (15L) |
---|---|
Size:Â S Adventure Boss full-frame bag, 140 cu in (2.3L) |
|
Size:Â M Adventure Boss full-frame bag, 207 cu in (3.4L) |
|
Size:Â L Adventure Boss full-frame bag, 232 cu in (3.8L) |
|
Size:Â XL Adventure Boss full-frame bag, 305 cu in (5L) |
|
*Cargo rack | Size:Â S, M, L, XL Farley custom front rack, Lava gloss |
Size:Â S, M, L, XL Farley custom rear rack, Lava gloss |
Weight | M - 18.30 kg / 40.35 lbs (with tubes) |
---|---|
Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
