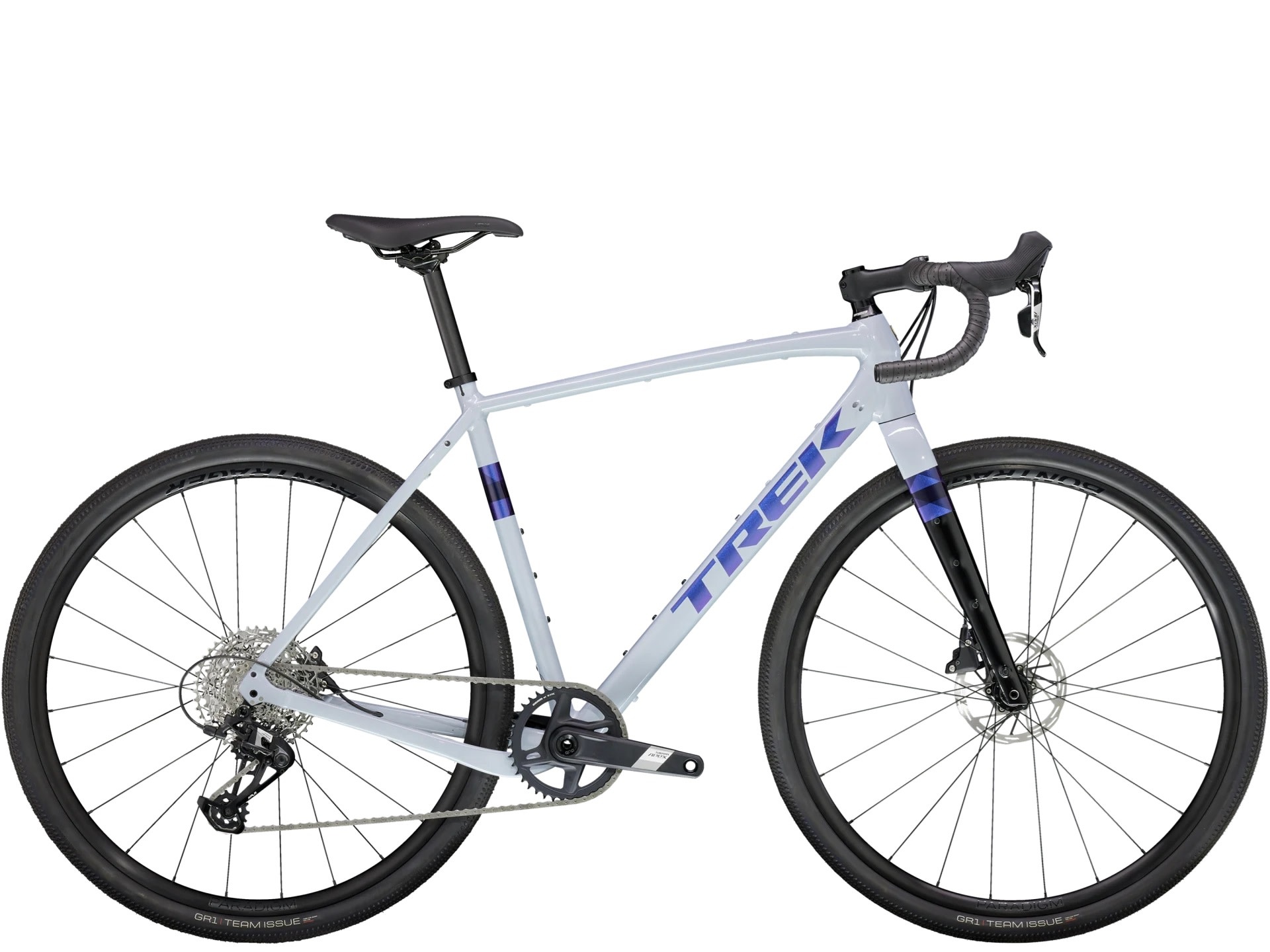

Trek Checkpoint ALR 5 - Plasma Grey Pearl
- More information? Contact us about this product
- Add to comparison list
It's right for you if...
You favor epic gravel adventures that end with a big beverage and a burrito. But that doesn't mean you'll compromise on performance. You expect to get a lot for your hard-earned dollar, including quality, versatility, durability, and a ridiculous amount of fun.
The tech you get
A stout 300 Series Alpha Aluminum frame with a progressive geometry that's stable at speed and efficient when you're grinding up a climb, hidden cables that won't interfere with bags, rack and fender mounts and integrated frame bag mounts, a 1x12 SRAM Apex drivetrain for grinding up hills or through rough gravel, hydraulic disc brakes for all-condition stopping power, tubeless ready rims, and wide Bontrager GR1 Team Issue 700x40c gravel tires for added stability and traction.
The final word
If the amount of adventure you can get per dollar spent is a priority for you, Checkpoint ALR 5 is your ride. Quality parts, a durable alloy frame, and a wealth of features like extra tire clearance and customization options so you can confidently take on bigger, better adventures.
Â
 Why you'll love it
- Its progressive geometry is quick and nimble yet keeps you stable and in control on fast, choppy descents
- You get serious versatility that's suited for a wide variety of ride styles, from gravel and bikepacking to daily commutes
- Massive tire clearance means you can use tires up to 45c for extra traction and stability in any conditions
- Integrated frame bag mounts and rack and fender mounts make it easy to carry gear and water

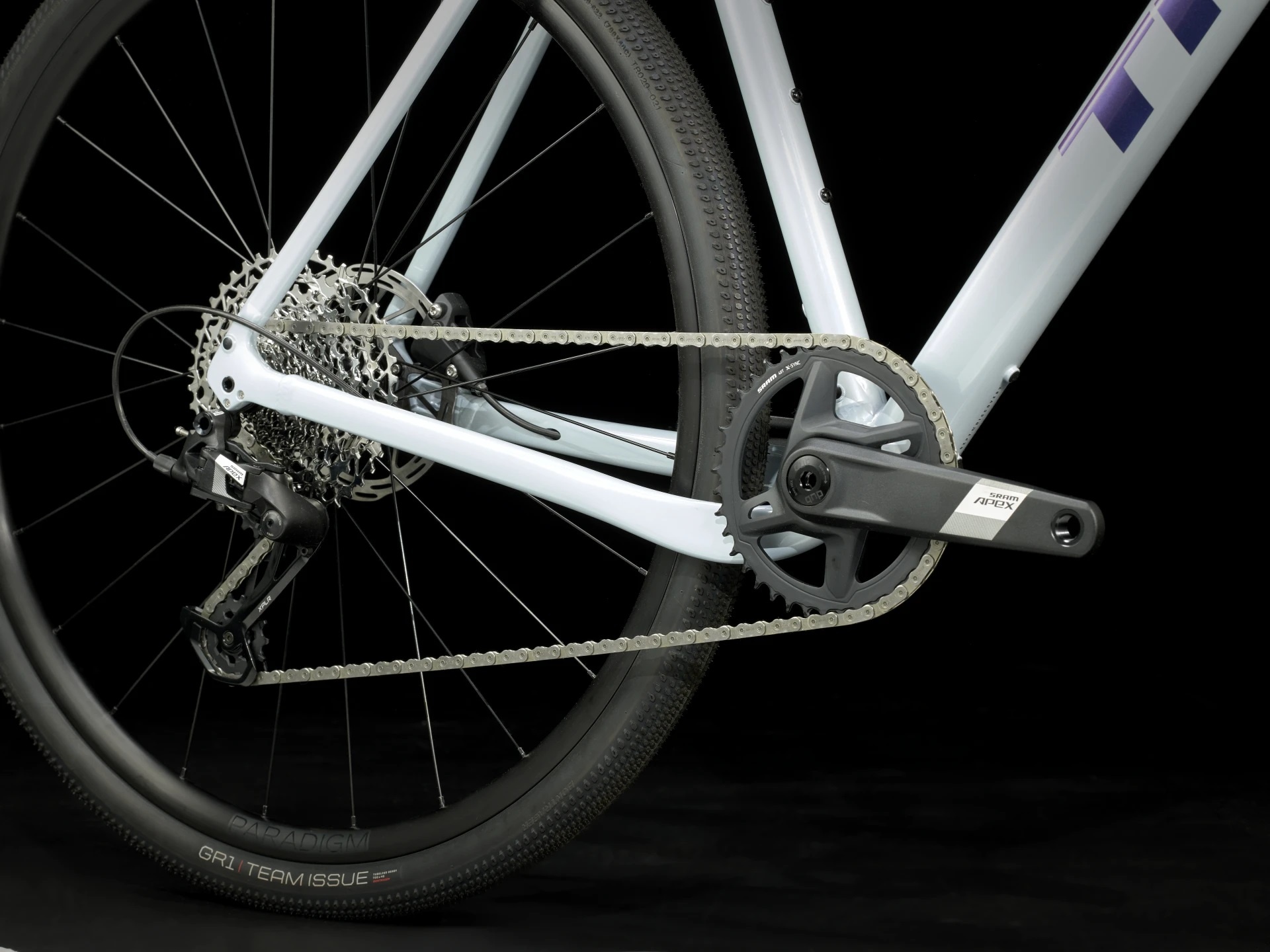

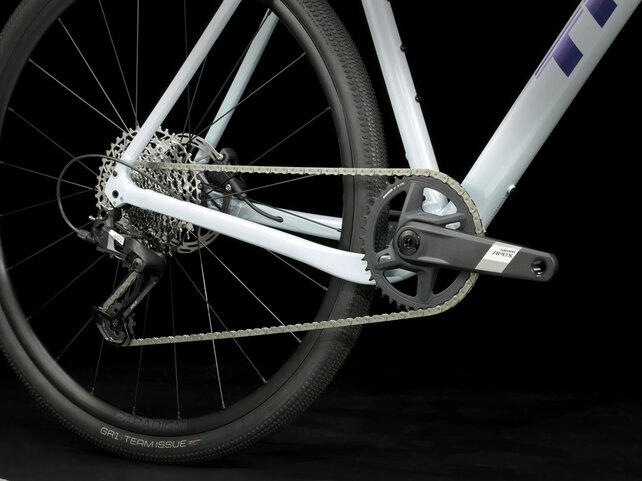

- SRAM's Apex 1x12 drivetrain gives you tons of gears for grinding up steep grades
Â
Â
Frame with Fork | 300 Series Alpha Aluminum, tapered head tube, Internal cable routing, 3S chain keeper, T47 BB, rack and fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm thru axle |
---|---|
Fork | Checkpoint, full carbon, tapered carbon steerer, rack mounts, mudguard mounts, flat-mount disc, 12x100 mm thru axle |
Weight | 56 - 9.71 kg / 21.41 lbs (with TLR sealant, no tubes) |
---|---|
Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg). |
Shifter | SRAM Apex, 12 speed |
---|---|
Rear derailleur | SRAM Apex XPLR, 44T max cog |
*Crank | Size:Â 49 SRAM Apex 1, 40T, DUB Wide, 165mm length |
Size:Â 52 SRAM Apex 1, 40T, DUB Wide, 170mm length |
|
Size:Â 54, 56 SRAM Apex 1, 40T, DUB Wide, 172.5mm length |
|
Size:Â 58, 61 SRAM Apex 1, 40T, DUB Wide, 175mm length |
|
Bottom bracket | SRAM DUB, T47 threaded, internal bearing |
Cassette | SRAM XPLR PG-1231, 11-44, 12 speed |
Chain | SRAM Apex, 12 speed |
Max chainring size | 1x: 44T (SRAM), 50T (Shimano), 2x: 50/34 |
Hub front | Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle |
---|---|
Skewer front | Bontrager Switch thru axle, removable lever |
Hub rear | Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle |
Skewer rear | Bontrager Switch thru axle, removable lever |
Rim | Bontrager Paradigm, Tubeless Ready, 24-hole, 21mm width, Presta valve |
Spokes | 14g stainless steel, black |
Tire | Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40mm |
Tire part | Bontrager TLR sealant, 180 ml/6 oz |
Rim strip | Bontrager TLR |
Max tire size | See service manual |
*Saddle | Size:Â 49, 52 Bontrager P3 Verse Comp, steel rails, 155 mm width |
---|---|
Size:Â 54, 56, 58, 61 Bontrager P3 Verse Comp, steel rails, 145 mm width |
|
Seatpost | Bontrager alloy, 27.2mm, 12mm offset, 330mm length |
*Handlebar | Size:Â 49 Bontrager Elite Gravel, 38 cm width |
Size:Â 52 Bontrager Elite Gravel, 40 cm width |
|
Size:Â 54, 56 Bontrager Elite Gravel, 42 cm width |
|
Size:Â 58, 61 Bontrager Elite Gravel, 44 cm width |
|
Handlebar tape | Bontrager Supertack Perf tape |
*Stem | Size:Â 49 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length |
Size:Â 52, 54 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length |
|
Size:Â 56, 58 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
|
Size:Â 61 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length |
|
Brake | SRAM Apex hydraulic disc, flat mount |
Brake rotor | SRAM Paceline, rounded, centerlock, 160mm |
Brake lever | SRAM Apex, 12 speed |
Rotor size | Max brake rotor sizes: 160mm front & rear |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
